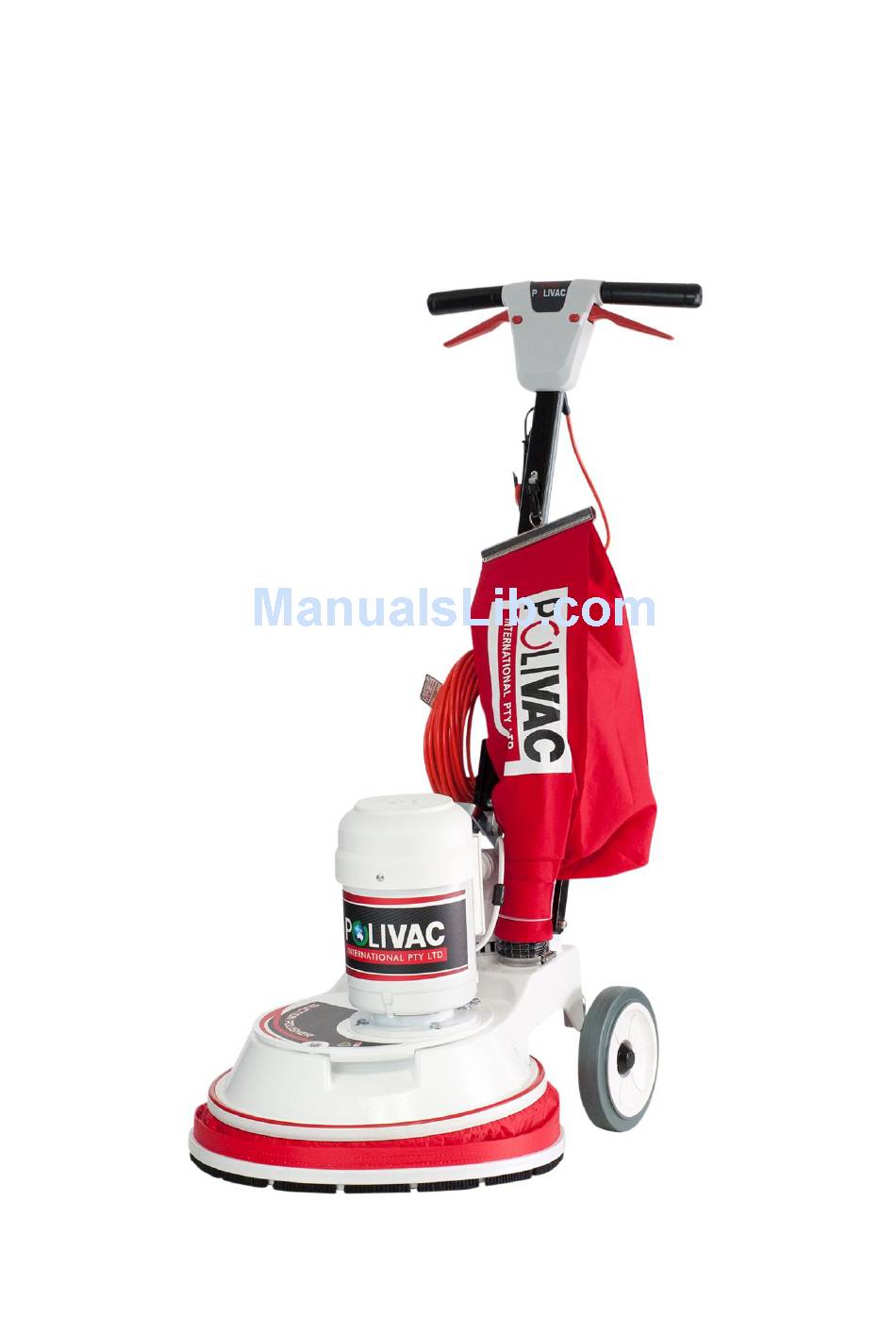

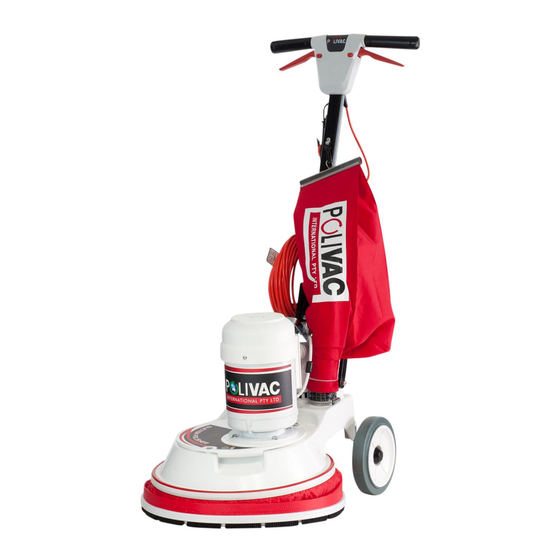

- Page 1 POLIVAC PV25 SUCTION POLISHER Operations Manual & Trouble Shooting Guide...
- Page 2 (PV25 Only) To use the vacuum system whilst polishing, switch the vac motor to the on position. The vacuum will be activated upon starting the machine.
- Page 3 Suction Polisher - PV25 SV25 SV30 Drive & Base Assembly Drawings by: LeanSynergicDesign.com.au...
- Page 4 Torsion Spring SLB043 Nut Nyloc 5/16'' UNC VPV218 Retaining Pin-Axle VPV094 Clamp-Hose Dust Bag VPV058 Hose-Dust Bag VPV090 Skirt Assy (PV25/PV25TS) for SV25/SV30 VPV090 BLK VPV250 Vac Motor Complete SLB035 Rivet ASL 5-6 VPV063 Dust Bag VPV051 Closure-Dust Bag VPV156...
- Page 5 Washer Wavy VPA570 Bearing-Top PC40B1 Brush Assembly AAA628 Cap Screw 5/16'' x 1'' Socket HD [PV25] AAA635 Cap Screw 5/16'' x 3/4'' Socket HD [SV25,SV30] VPA122 Washer TAB 1/2'' OD x 1/4'' ID AAA564 Bolt 1/4'' NC x 3/4'' Zinc High Intensity...
- Page 6 Suction Polisher - PV25 SV25 SV30 Drive & Base Assembly - Part List No Code Description VPA355 Roll Pin 3/32'' x 7/8'' ZP GCA292 Rachet Cap 12mm VWA634 Bush Nylon LAB005 Label [PV25] LAB004 Label [SV25] LAB010 Label [SV30] VPV459...
- Page 7 Suction Polisher - PV 25 SV25 SV30 VPV610 Handle 41 26 Drawings by: LeanSynergicDesign.com.au...
- Page 8 17 VPV475 Mains Lead Assy (15m) 18 PVS070 Plastic Clamp 19 AAK829 Pop Rivet 20 VPV120 Dust Bag Hook 21 VPV607 Polivac Handle Label 22 ECG157 Lead Protector 23 AAA523 Screw 24 AAA522 Screw 25 VPA631 Cherry Switch 26 AAA525 Screw Drawings by: LeanSynergicDesign.com.au...
- Page 9 Suction Polisher - PV 25 SV25 SV30 VPV610 Handle - Part List No Code Description No Code Description 27 VPA622 Clamp 53 ZDR078 Neon Indicator 28 AAJ451 Star Washer 54 VPV562 Label 29 AAG150 Washer 30 AAE271 31 AAM702 Earth Terminal 32 AAM704 Flag Terminal 33 AAJ002...
-
Page 10: Drive Motor
Suction Polisher - PV 25 SV25 SV30 Drive Motor Drawings by: LeanSynergicDesign.com.au... - Page 11 Suction Polisher - PV 25 SV25 SV30 Drive Motor Parts List No Code Description VPV810CMG Range Endshield (Drive End) VPV806CMG Centrifugal Switch VPV805CMG Switch Contact Plate VPV811CMG Non Drive Endshield VPV812CMG Cooling Fan VPV813CMG Cowl VPV807CMG Manual Reset VPV818CMG Capacitor Box Lid VPV803CMG Run Capacitor VPV804CMG...
-
Page 12: Vacuum Motor
Suction Polisher - PV 25 SV25 SV30 Vacuum Motor Drawings by: LeanSynergicDesign.com.au... - Page 13 Suction Polisher - PV 25 SV25 SV30 Vacuum Motor - Part List No Code Description VPV306 Vacuum Motor VPV248(Vac Motor and fan Assembly) VPV250(Compleate Vac Motor VPV188 Motor Support Base VPV192 Baffle VPV213 Vaccum Motor Cowl VPV198 Spacer AAG385 Washer 5/16 x 7/8 Zinc Bright 16G VPV184 Fan Boss VPV252...
