GEMHD SEE875 Instruction Manual

External varifocal bullet camera (2.8 ~ 12mm) lens
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs

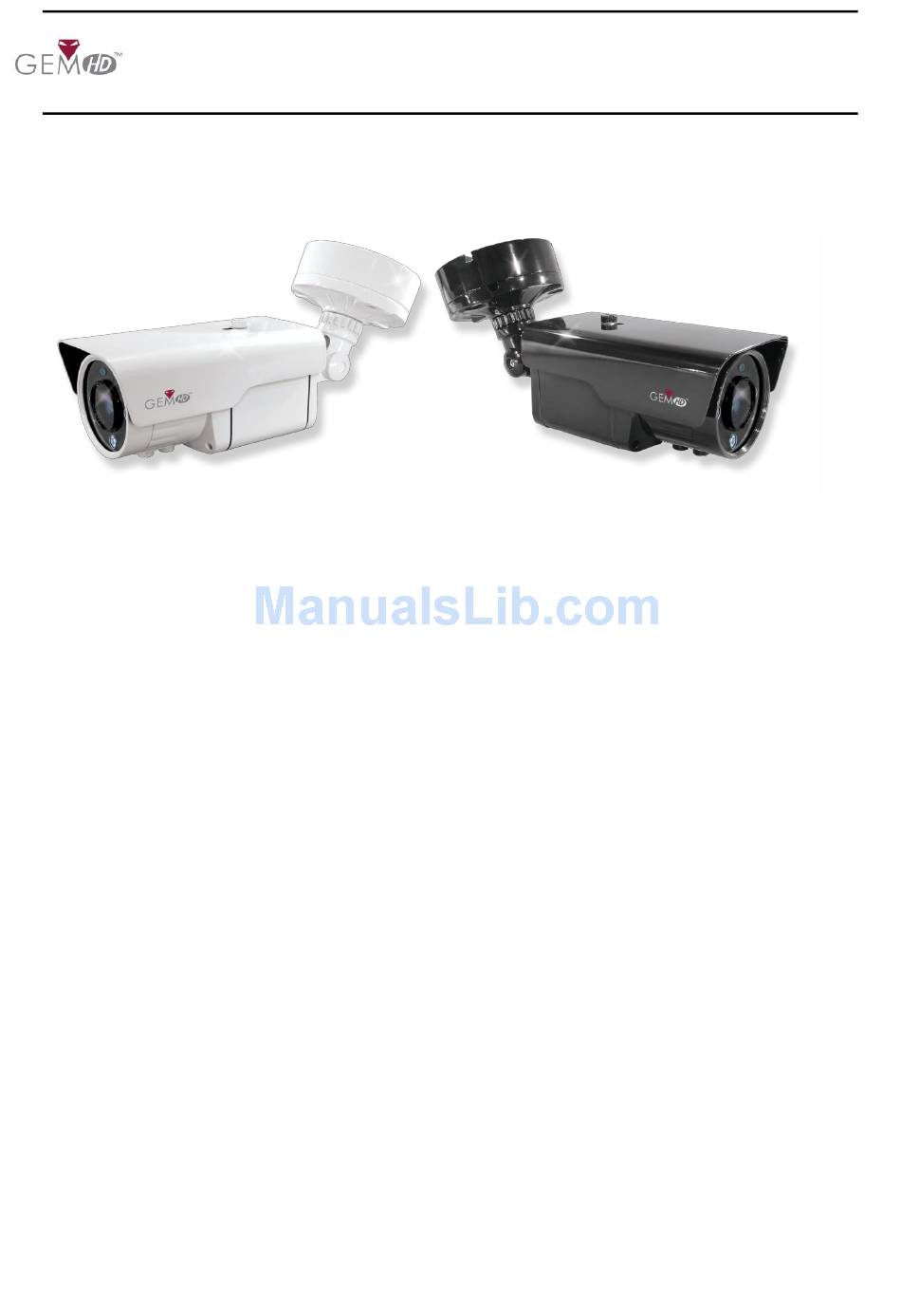

SEE875(B/W) External Varifocal Bullet Camera (2.8 ~ 12mm) Lens
The SEE875 has multi format HD modes for TVI, AHD, CVI and CVBS
and a separate BNC for CVBS* (analogue) use.
Features:
Multi format TVI/AHD/CVI/CVBS
plus separate BNC for CVBS*
2.1 MegaPixel sensor
3 MegaPixel 1080P/700TVL (CVBS)
2.8 ~ 12mm lens
rd
3 x 3
Gen. IR LEDs up to 50m range
Privacy masking & Motion Detection
Metal body IP66 rated
Wide Dynamic Range
Sens-Up for improved night vision
Made in shiney white and shiney black

Special Features

The SEE875 cameras produce exceptional quality images using a 2.1 MegaPixel
1/2.9" sensor providing HD 1080P resolution.
The SEE875 is a multi-format HD camera with TVI, AHD, CVI and CVBS mode
selection and in addition a separate analogue output (CVBS) on a separate BNC lead.
* Additional CVBS output available if using HD, but only one CVBS if not.
In HD-TVI mode the cameras have the Coaxitron Control facility for changing the
OSD menu specifications via the DVR or remote network connection, or via the
camera joystick.
This camera has a dual flat glass plate to reduce IR reflection.
Email: support@Gem-HDCCTV.com
Contents:
SEE875(W/B) bullet camera 2.8~12mm
Metal adjustable sun screen
Metal Deep Base for storing connectors
Allen Keys x2
Mounting screws x 4
Wall plugs x4
Deep Base securing screw x 1
Flat metal key for adjusting zoom/focus
Felt adhesive gasket for deep base
Instruction Manual
1
XSEE875
Last Revised 21/05/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEE875 and is the answer not in the manual?

Questions and answers

Summary of Contents for GEMHD SEE875

  • Page 1: Special Features

    The SEE875 cameras produce exceptional quality images using a 2.1 MegaPixel 1/2.9” sensor providing HD 1080P resolution. The SEE875 is a multi-format HD camera with TVI, AHD, CVI and CVBS mode selection and in addition a separate analogue output (CVBS) on a separate BNC lead.

  • Page 2: Mounting The Camera

    XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs Mounting the Camera The camera is an external camera for mounting on a wall, flat surface or under a lintel and has three directional movement using adjustable swivel joints. The connection cables with the attached menu controller can be stored in the deep base.

  • Page 3: Powering The Camera

    SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs Powering the Camera The SEE875 draws 12V DC 500mA when IRs are on, and power consumption is rated at 6 watts. It should be noted that extra headroom is required when the camera is first powered up so we recommend connecting it to a 12v DC regulated minimum 700mA power supply.
  • Page 4 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs Menu Access via TVI DVR using Coaxitron Access to the camera menu is via the menu buttons on the camera or via the Up the Co-ax connection. Access by the menu buttons is described below. To use the Up The Coax connection, this can be accessed using the PTZ menu in the MEGA TVI or MAX TVI DVRs using the AlienTVI(Coaxitron) protocol.

  • Page 5: Osd Menu

    SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs OSD Menu The SEE875 has an on screen display menu. This can be accessed using the joystick on the camera. Press the centre button straight down (see arrow) to enter the menu and use Left, Right, Up and Down to move through and amend menu settings.
  • Page 6 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs DAY&NIGHT EXTERNAL IR LED Off / On (IRs cannot be switched off) Anti-Sat. 1 ~ 20 Default 10 (Not used when IRs off) Extern S/W Low / High D->N Level 1 ~ 20 Default 13 N->D Level 1 ~ 20 Default 7...
  • Page 7 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs MOTION OFF / ON Det Window Window Zone 0 ~ 3 Window Use On/Off Det H-Pos <nn> <nn> value = position Det V-Pos <nn> <nn> value = position Det H-Size <nn> <nn> value = size Det V-Size <nn>...

  • Page 8: Menu Description

    XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs Menu Description The following menu description gives more in depth information about the menu options. In some instances recommendations are made to hopefully enhance the results. However every installation will be different and there will occasions when alternative solutions may be more suitable.
  • Page 9 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs BRIGHTNESS 0 ~ 20 (Def 10) SHUTTER Auto / Manual / / Flicker EXPOSURE Normal /Deblur (Def Auto) Manual- 1/25,1/50,1/100,1/200,1/400,1/800,1/1600,1/3200, 1/6400,1/12800,1/25600 (Def 1/25) Flicker SENS-UP Off /x2/x4/x8/x16/x32 (Def Off) 0 ~ 10 (Def 10)
  • Page 10 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs BACKLIGHT Level 1 ~ 20 / Color – BLK/Customise WHT/YEL/CYN/GRN/MAG/RED/BLU H-Pos – V-Pos – H-Size – V-Size - Return Normal / ROI (Region of Interest) ROI – Window Zone 0 ~ 3...
  • Page 11 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs DAY&NIGHT EXTERNAL IR LED Off / On (IRs cannot be switched off) Anti-Sat. 1 ~ 20 (Not used when IRs off) Extern S/W Low / High D->N Level 1 ~ 20 Default 13 N->D Level 1 ~ 20 Default 7...
  • Page 12 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs COLOR AWB Auto AUTOext / Preset (Push) Color Gain 1 ~ 20 Color Gain 1 ~ 20 Default 13 (Default 13) Return Return MANUAL C-Temp 5000K / 8000K / 3000K R-Gain 1 ~ 20 (Default 10)
  • Page 13 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs SHARPNESS CVBS / CVI / TVI / AHD - 1 ~ 10 TVI Default 4 IMAGE GAMMA 0.55 / 0.65 /0.75 / 0.45 MIRROR Off / On FLIP Off / On Off / Low / Middle / High (Adaptive Colour &...
  • Page 14 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs PRIVACY Off / On Zone Num (0 ~ 15) This function allows the creation of up to 16 coloured areas to be created to provide privacy masking. Zone Disp Off /On The Zone Display allows you to switch on and off the zone number.

  • Page 15: Det Window

    XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs OFF / ON Det Window MOTION Window Zone 0 ~ 3 Window Use On/Off Det H-Pos <nn> <nn> value = position Det V-Pos <nn> <nn> value = position Det H-Size <nn> <nn> value = size Det V-Size <nn>...
  • Page 16 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs SYSTEM OUTPUT Main Output Analog Out 0 / Out 1 Analog Out 0 TVI/AHD/CVI / Analog Out1 CVBS Y Gain 0 ~ 32 Def 16 / Y Gain not used CB Gain 0 ~ 32 Def 12...
  • Page 17 XSEE875 SEE875 External Varifocal (TVI/AHD/CVI) & Analogue with IRs Analog Out1 CVBS / TVI / Off Analog Out1 CVBS Return FRAME RATE 1080 25P / 720 25P / 720 (Crop) 50P (Select camera frame rate) Sets the camera output mode. 1080P is default.
  • Page 18 All specifications are approximate. GemHD-CCTV.com reserves the right to change any product specification or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, GemHD- CCTV.com cannot be held responsible in any way for any losses, no matter...
