Summary of Contents for Metzin MVB-55002

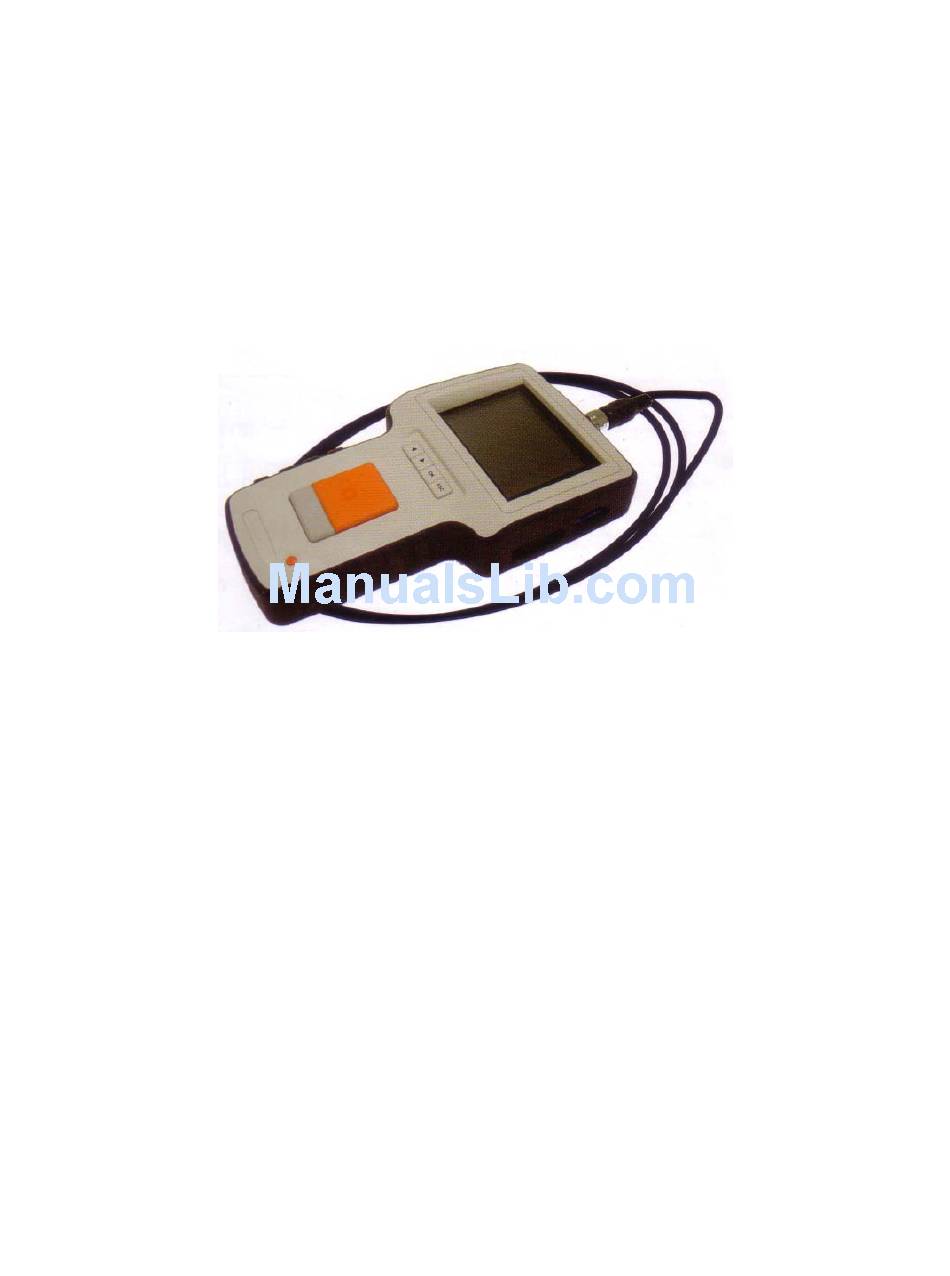

- Page 1 MVB‐55 Series Portable Video Boroscope User Operating Manual By metzin.com Page 1 www.metzin.com ...
-
Page 2: Table Of Contents
C. REC button D. PREV. button E. NEXT button F. Multi‐selector J G. ESCAPE K L H. Light switch H D I. SD Jack E B J. AV jack C K. USB jack L. DC IN jack M. Main unit N. Probe / cable Page 2 www.metzin.com ... -
Page 3: Interface Overview
Selection the next Acts as “Forward” or video function or option function To enter into the Menu To delete photos or Confirms selected mode videos function or option To return to the To return to the To return to the Preview mode Preview mode Preview mode To take photograph “NEXT” (under the Displays information Preview mode) on the software “Start/Stop” (under version for technical the REC mode) repairs and maintenance To start/stop video To return to the To return to the recording Preview mode Preview mode Page 3 www.metzin.com ... -
Page 4: Main Menu
to confirm. VIDEO OUTPUT order Once you insert the video cable, select this function to transfer the viewing screen from the main unit to television screen, the main unit screen will turn black. You can transfer the screen back to the main unit by selecting the same function. Page 4 www.metzin.com ... - Page 5 DELETE ALL ENGLISH VIDEO OUTPUT FRENCH DATE/TIME SETUP LANGUAGE VIDEO FORMAT AUTO POWER OFF VIDEO FORMAT SETUP To setup the TV output format AUTO POWER OFF SETUP To setup time for auto power off TIME SET MANUAL DISABLE DELETE ALL 5 MIN VIDEO OUTPUT 10MIN DATE/TIME SETUP 15MIN LANGUAGE 20MIN VIDEO FORMAT POWER OFF AUTO POWER OFF Page 5 www.metzin.com ...
-
Page 6: Operation
(picture taking or video recording) 1. In the preview mode press or To view Status: Will display the latest picture. / photos 2. And press or to survey the and first photo/video taken and the second videos photo/video taken. P.S. : Shows the previous or next actions (either taking photograph or Status: Files are organized by date sequence. video recording). Page 6 www.metzin.com ... - Page 7 “Video Output” option. 4. Press again. Status: Picture will output to external viewing screen PS: The function will detect automatically if AV cable already inserted in the AV jack. If not but inserted, the image screen will switch back to the main unit. 1. Press To Regulate 2. Press or to select video format option. Output 3. Press Viewing 4. Press or to select NTSC or PAL 5. Press Page 7 www.metzin.com ...
- Page 8 1. Press Auto Power 2. Press or to go to the On/Off Setting Auto Power Off option 3. Press 4. Press or to set up the time options (5mins/10mins/15mins/30mins) or DISABLE option (if you choose not to have this function) 5. Press PS: The system will still automatically switch off without prior setting. ACCESSORIES USB Cable – enables connection to PC for convenient file transfer and maintenance. Video Cable – connects screening to television when required. Adaptor – enables power charging when low power is indicated. SD card – Please refer to the picture for direction when inserting to the unit. Page 8 www.metzin.com ...
-
Page 9: Sd Card Routes
SD Card Routes When you get the product, recommend you set up the time and date for the future management of the file. The product preset time is YEAR 2007, January 1 . If file name shows first two mode codes are 11. It indicates the time is preset time. The file name is defined not by sequence ID, but by photo saved time. Picture file and video file are defined by the same way, but extension is different. Picture file is .JPG; Video file is .ASF. Troubleshooting No image on the LCD monitor after turn power on: If battery is exhausted, turn power on and then no action, please charge battery or use AC adaptor. No image but words on the LCD monitor after turn power on: Please check connector if connected well. Cannot take pictures and video No SD card inserted, no photo taking and video recording. Shut down: When all the function freeze or fail, please insert an insulated needle to the hole on the back of the main unit. The system will restart automatically. RESET Button at device rear side Page 9 www.metzin.com ... -
Page 10: Caution
Caution Do not remove the SD Memory card while data is being saved to the card while photographing or video recording, as this may cause the data to be lost or the card to be damaged. While video recording it need storage mass data, we recommend using more than 80x SD card to card better quality. Important: Use cotton buds soaked in alcohol to clean the lens. DO NOT use the product in dangerous environment such as oil tank. DO NOT use chemical liquid to clean off the surface of the product. DO NOT open the product unit, the action might damage the product and void the limited warranty. When storing the product, be careful when bending the probe. DO NOT bend the probe to 180 degree. Please use the original spare parts, if not, it might damage the product. DO NOT use the product in an aircraft and medical field. DO NOT use the product under the direct sunshine environment. Please keep the product in dry and adequately ventilated environment. Page 10 www.metzin.com ... -
Page 11: Specification
Specification Handle Working Temperature ‐20°C to 60°C Probe Working Temperature ‐20°C to 70°C System Storage Temperature ‐20°C to 60°C While battery in charging 0°C to 40°C ∅5.5mm 1m to 30 m 117.5mm 37mm 207mm 79mm Page 11 www.metzin.com ... - Page 12 White Balance: Fix • Field of View (FOV): 67° • Depth of Field (DOF): 1.5cm~10cm • Light Source: 4 White LEDs System Spec. • Display: 3.5”TFT LCD 320x240 Pixels • Power: DC5V • Interface: Mini usb 1.1/ AV out/ Av in/ • Battery: Rechargeable Li‐Polymer Battery (3.7V) • Video Out Format: NTSC & PAL • Recording Medium: SD card (Max. capacity up to 2G) • Compression Format: MPEG4 • USD port • Still Image Storage Format: JPEG (640x480) • Video Recording Format: ASF (320x240) • Language: English / French Function Quick Snap Quick Video Recording Quick Review AV Out Video/Picture Viewer Page 12 www.metzin.com ...
