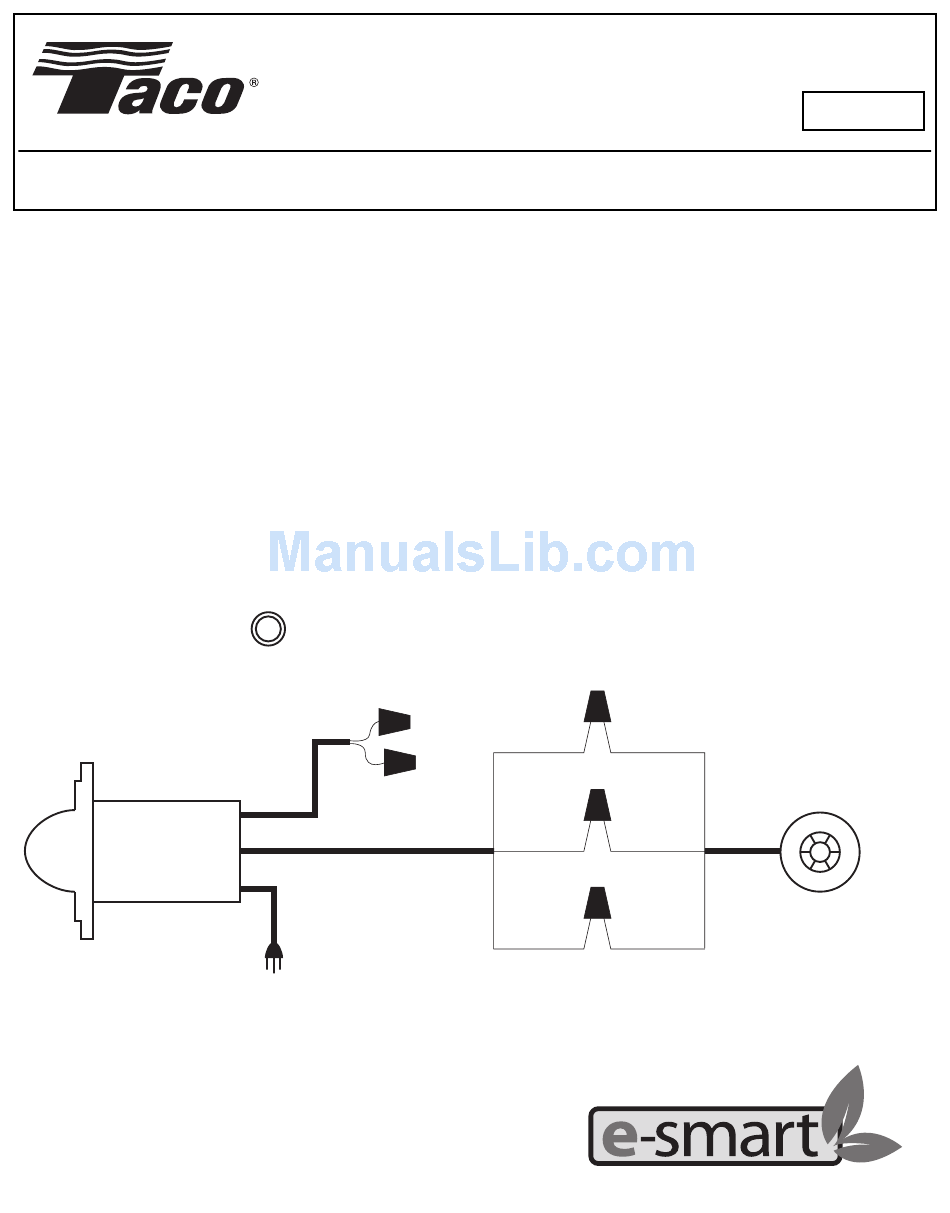

Installation and Wiring Instructions
Plant ID No. 001-3886
INSTRUCTIONS
1. Unplug the D'Mand System power cord.
2. Connect Black, Green and Red leads from Motion Sensor to corre-
sponding Black, Green and White leads from Black 3-wire cord on
D'Mand System Pump (see wiring diagram). Use wire nuts provided
in kit. Use wire nuts or electrical tape to isolate Red and Black wire
leads in Gray Cord if round starter button is not installed.
ROUND
STARTER
BUTTON
PUMP
D'MAND
Supersedes: December 1, 2008
RED
GRAY
2-WIRE
CORD
BLACK
BLACK 3-WIRE
CORD
POWER
CORD
®
SYSTEM
Motion Sensor
BLACK
GREEN
WHITE
A Taco resource – saving product
102-205
Effective: January 1, 2011
BLACK
GREEN
MOTION SENSOR
RED
