Arkon CM075 Instructions

A
RKON

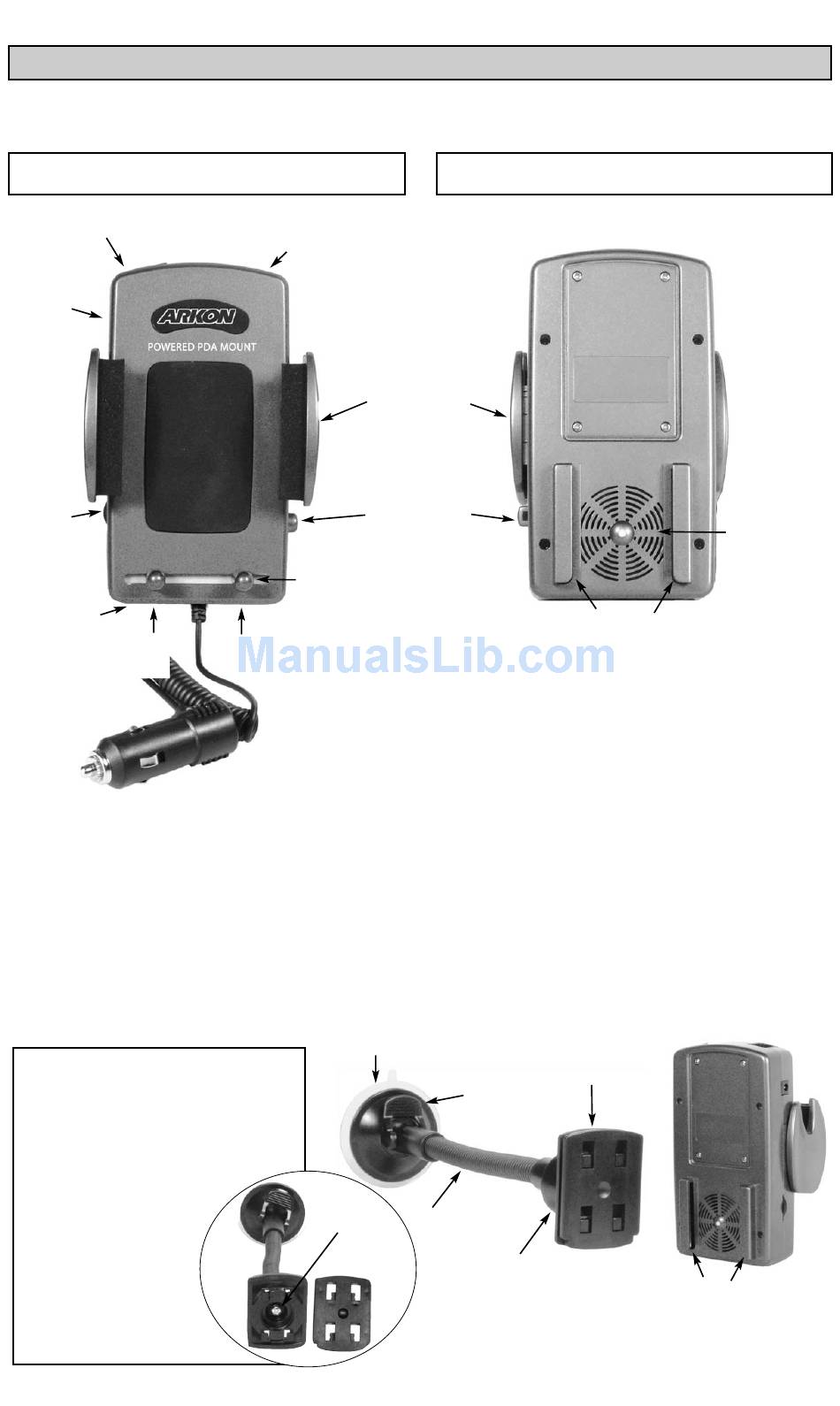

I. Description of PDA Cradle Parts

Front of Cradle
RJ12
GPS Port
Bluetooth
Receiver
Charging
Outlet
(5V, 0.6A)
Speaker
Volume
Control
Power On
LED
Additional USB
Power Slot
(5V, 0.6A)
DC Power Cord
Plugs into car
lighter socket
1. Connect the windshield pedestal to the PDA Cradle by sliding the mounting plate (A) into the mounting grooves (B) on the back of the
cradle. Slide the mounting plate all the way up to secure a proper fit.
2. Take care in selecting a suitable location in your vehicle to install the windshield suction pedestal. Warning: Do not mount this product
where it will obstruct the driver‚s view or interfere with operation of the vehicle or the vehicle‚s safety devices, including air bags. You
assume the risk associated with damage to your vehicle or occupants as the result of your choices in mounting this product.
3. Firmly press the windshield suction cup against the windshield and then push down the locking lever to secure a tight fit.
4. Bend the pedestal to adjust the viewing angle by grasping the shaft with both hands. Do not attempt to bend the pedestal by grasping
the PDA cradle.
5. Once the pedestal has been bent into the approximate desired location, you can take advantage of the swivel capability of the pedestal
by gently rotating the cradle using two hands.
Note: Prolonged exposure to heat can weaken the strength of the suction lock against the windshield. It is recommended that you remove and reapply the
suction pedestal every two weeks to maintain suction strength.
REMOVAL OF SUCTION WINDSHIELD
PEDESTAL:
1. Release the locking lever by pulling it to
the up position
2. Pull up on the release lip located on the
edge of the clear plastic suction cup disc.
ADJUSTMENT OF SWIVEL
RIGIDITY
In the event that the swivel
mechanism is too tight or
becomes too loose, you can
adjust the tightness by
removing the
mounting plate from the
swivel end of the pedestal and
using a Philips screwdriver to
adjust the swivel screw.
P
OWERED
I N S T R U C T I O N S
3.5mm Headphone
Speaker Jack
Padded Side Grip
Support Jaws
Push Button
Release for PDA
Moveable Support Legs
Unscrew to move
and then retighten
PDA Charge
and Data Slot
(5V, 1.2A)

II. Installation Windshield Pedestal

The Arkon Swivel Windshield Suction Pedestal allows you to easily mount
your Powered PDA cradle directly to the interior of your vehicle‚s wind-
shield. In this position, it can best interface with the global positioning
satellites required for vehicle navigation.
Release Lip of
Suction Cup
Swivel
Screw
PDA M
Back of Cradle
Pedestal Mounting
Mounting Plate
Locking Lever
Shaft
Swivel Mechanism
OUNT
Amplified
Speaker
Although speaker is
covered by mounting
pedestal, sufficient
space allows the
powerful speaker to
perform properly
Grooves
(A)
Pedestal Mounting
Grooves
(B)
