- Page 1 SV33 Studio Vocal Microphone for Recording & Broadcast User’s Guide...

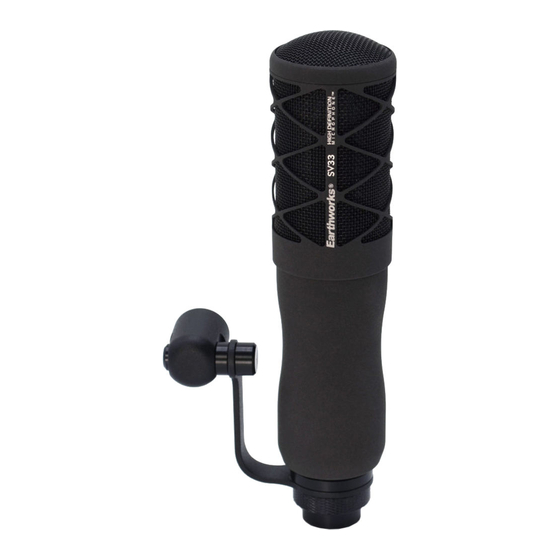

- Page 2 • Pivot Arm - Allows mounting the SV33 on a stand or boom and enables rotation along either the vertical or horizontal axis. The microphone is constructed to pro-...
- Page 3 Preamps & Input Capabilities The SV33 can provide a very clean output of up to 10 volts. However, some preamps are unable to handle this amount of input level. Be aware of the limitations of your preamps and choose one that can handle high input levels. The use of electronically balanced inputs is recommended.
-
Page 4: Microphone Placement
Microphone Placement At its core, the SV33 has been designed to pick up a wider array of sound emanating from the human body and voice. When a performer speaks or sings, there are multiple sources generating sound all at once. The contributions of the chest, neck, mouth, nose and head all sound very different from one another, and their balance continually changes. - Page 5 Polar Response The polar response of the SV33 provides a wide area of pickup that is consistent in frequency and amplitude out to 70 degrees off-axis (Figures 7 & 8). It also provides a large area of uncolored rear rejection beyond 110 degrees off-axis (Figures 10-A & 10-B). Depending on what else is happening in the room, aim the rear of the...
- Page 6 Do not attempt to remove the pop filter from the windscreen assembly. Do not directly wet or submerge the body of the microphone in any type of fluid. If Something Seems Wrong If you experience unexpected behavior from the SV33 such as noise, distortion or a lack of output signal, it is recommended that you start by checking the following: • Is phantom power switched on? Is it at least 24V, and is the phantom power source capable of supplying at least 10mA of current? • Are you using high quality microphone cables? Failed solder joints and poor...
- Page 7 1.97 inches (50mm) max dia .860 inches (22mm) min dia 2.5lb (1.13kg) Weight Polar Response 1.8“ 15/16 - 8 1.0“ 1.0“ Expertly Handmade in U.S.A. Earthworks, Inc. • 37 Wilton Rd. • Milford, NH 03055 603-654-2433 • www.earthworksaudio.com email: sales@earthworksaudio.com • Printed in U.S.A.
- Page 8 Expertly Handmade in U.S.A. Earthworks, Inc. • 37 Wilton Rd. • Milford, NH 03055 603-654-2433 • www.earthworksaudio.com email: sales@earthworksaudio.com • Printed in U.S.A.
