Summary of Contents for Telemetro TLF600

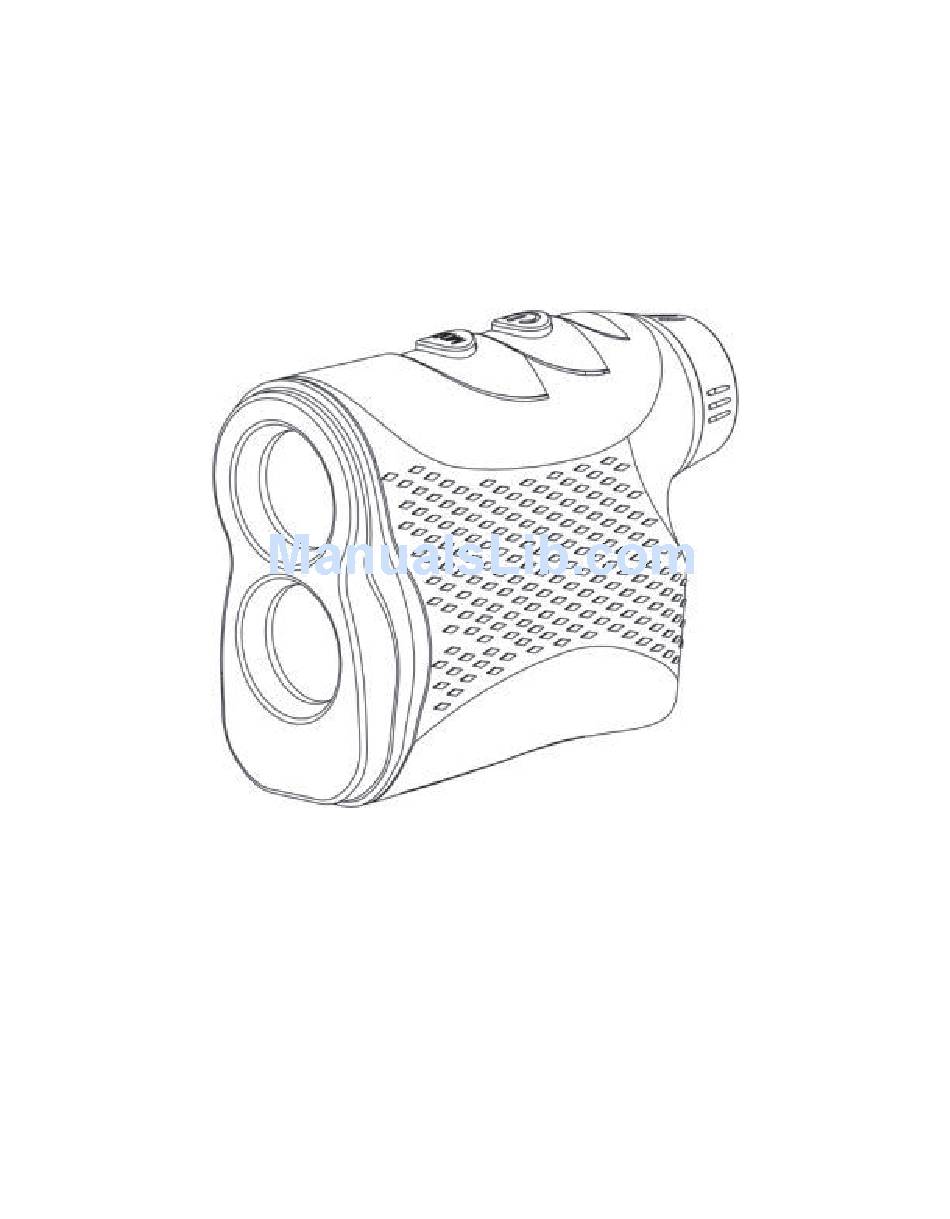

- Page 1 Laser Rangefinder Operation Manual 0171012...
- Page 2 Model Guide X X X X - X Function indication P : Distance measuring (single measuring and continuously measuring mode) 、Fog mode、 Pinseeker mode、speed finder mode H: Distance measuring (single measuring mode) 、 Angle finder mode、Height finde mode、Fog mode、 speed finder mode Measuring range For example 600 means 5-600m, 900 means 5-900m,...
- Page 3 FEATURE: Laser type 905nm Measuring range of distance Reference model Measuring range of speed 0-300KM/h Measuring range of angle ±60 ° Magnification Eye piece size 16mm Exit pupil diameter 3.8mm Range measurement precision Average ±1m Speed measurement precision ±5KM/h Angle measurement precision ±1 °...
-
Page 4: Lcd Display
Measurement target ： Road signs Building Golf Flagpole Trees ★The rangefinder suitable for measuring high Reflectivity of an object (such as street signs), moderate reflectance(such as a building wall), and low reflectivity objects (such as trees and golf flagpole, etc.). LCD DISPLAY: - 3 -... -
Page 5: Operation Instructions
Screen Indication： 1.“Hgt” Height finder mode 2.“Scan” Continuousely measuring mode 3.“Fog” Fog mode 4“speed” Speed finder mode 5“ + Scan” Pin seeker mode 6.“ ” low battery indication 7.“ ” Target centre 8.“ ” Display numerical value, four dashes “----” will appear without numercial value. 9.“... - Page 6 ◆ Adjust the focus The range finder is designed with an adjustable eyepiece (dioptre). By adjusting the focusing dioptre within a -5 to +5 range, people with far sighted vision can use laser range finder without glasses. Looking through the eyepiece,turn the dioptre left or right until the view is focused with clarity to suit you.
- Page 7 1. Function Principle: d=ct/2 2. LCD display: Model P: Press power button shortly, the distance value will display, Long press power button, the“Scan” will twinkle and continuously measuring value will display. Model H: Press power button shortly, the distance value will display.
- Page 8 In the pinseeker mode, the point D may be isolated from a number of points in the background out and keep only the distance d1 to the point. So as to achieve the automatic locking flagpole distance. The other goals were shielded behind the flagpole.
- Page 9 measuring around flagpole till the value is stable, this value is the distance to flagpole. Model H: it do not have this mode ◆“Fog” mode 1. Function Principle: Because the fog will reflect the laser generating,so the fog will not be able to measure distant targets. Filter out the laser reflector fog errors caused by distance (d1=30m), thus ensuring the long-distance measurement range volume.
- Page 10 Model P and H: Press power button shortly, the distance value will display base on fog ◆“Angle finder” mode 1.Function Priciple: Adopt angle sensor to measure angle. 2. LCD display: - 9 -...
- Page 11 Model P: it do not have this mode Model H: Press power button shortly, the distance value and angle value will display rotational ◆“Height finder” mode 1.Function Priciple: Adopt Pythagorean theorem to caculate the height. 2. LCD display: - 10 -...
- Page 12 Model P: it do not have this mode Model H: Press power button shortly, the distance value and height value will display rotational ◆“Speed” mode 1. Function Principle: For moving objects, ranging twice. Two distance difference, divided by the time interval ranging sides,the speed of moving objects can be obtained.
- Page 13 3．LCD display: Model P and H: Target the moving object and press power button shortly, and keep on targeting the object till the speed value display on the screen. ◆Low voltage alarm - 12 -...
- Page 14 When the battery voltage is too low, the low pattern has been shown to remind replace the battery. NOTICE: ● the measuring range of the rangefinder could be influenced by the angle between the laser an targets.generally speaking.the measuring range is better when there is a smooth surface.bright color,big surface of targets,and a bigger angle between the laser and the target.
- Page 15 adjusted with precise equipment.Never disassemble it at random. ● If the external lens is stained,please clean it with the lens cloth.Do not use other materials when cleaning so as to prevent the coating from being damaged. ● If the external lens is stained,please clean it with the lens cloth.Do not use pther materials when cleaning so as to prevent the coating from being damaged.
- Page 16 adjusted with precise equipment.Never disassemble it at random. ● If the external lens is stained,please clean it with the lens cloth.Do not use other materials when cleaning so as to prevent the coating from being damaged. ● If the external lens is stained,please clean it with the lens cloth.Do not use pther materials when cleaning so as to prevent the coating from being damaged.
- Page 17 Warranty Card 1.We guarantee ONE years warranty for laser distance meter. 2.Warranty begins from purchase date and it is subject to the following conditions: (1).Within warranty,we shall deal with complaints based on faulty equipment by repair,replacement of defective parts or replace an identical flawless product at our discretion.
- Page 18 v i a A l d o P i n i , 1 0 - 8 3 1 0 0 A v e l l i n o ( A v ) I T A L I Y T e l . + 3 9 0 8 2 5 6 8 0 1 7 3 - F a x + 3 9 0 8 2 5 6 8 3 3 9 i n f o @a n a l i s t g r o u p .
