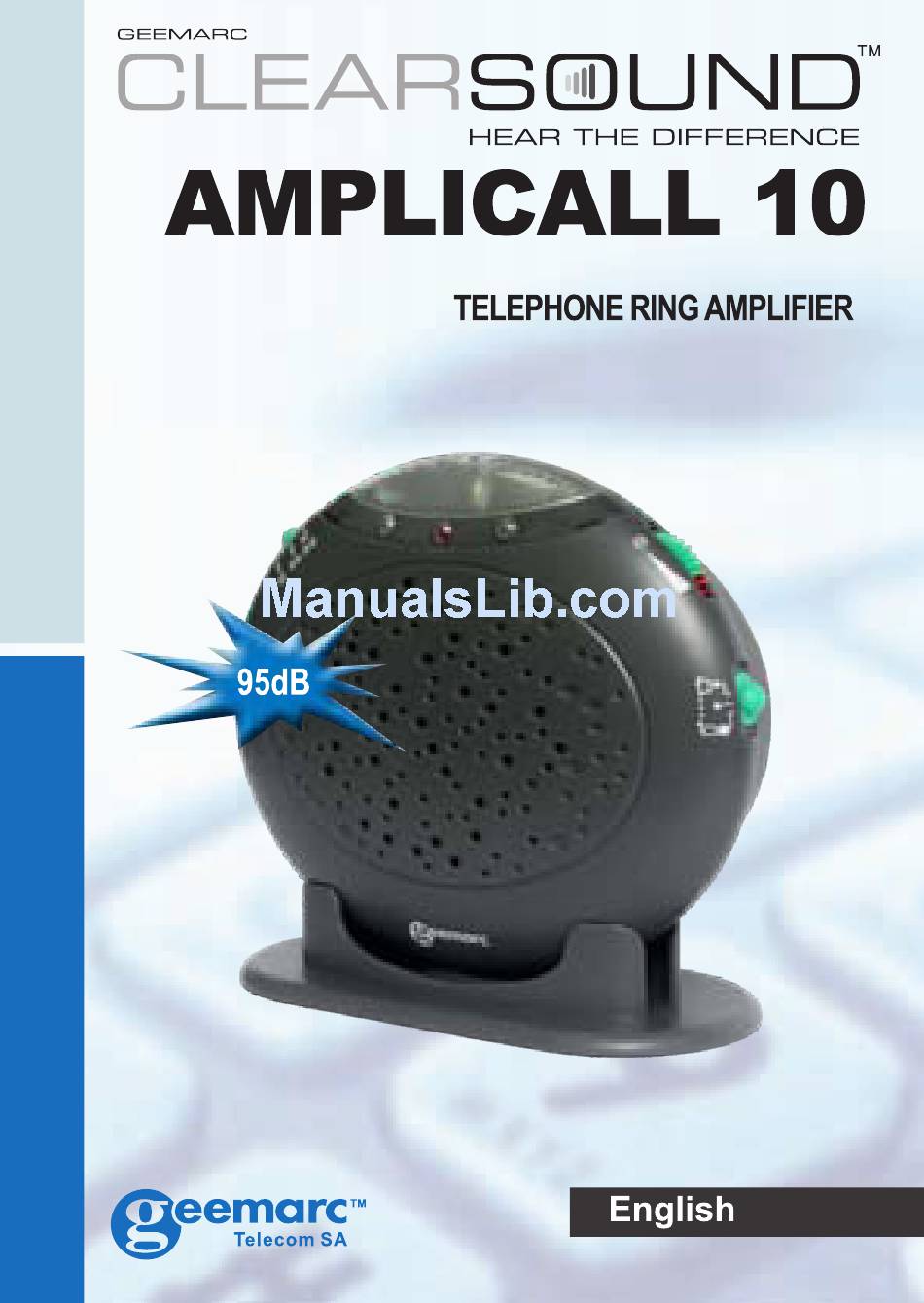

Geemarc AMPLICALL 10 Installation Manual
Geemarc AMPLICALL 10 Installation Manual

Geemarc AMPLICALL 10 Installation Manual

Telephone ring indicator and flasher
Hide thumbs Also See for AMPLICALL 10:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMPLICALL 10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Geemarc AMPLICALL 10

  • Page 2 DESCRIPTION Description Low battery indicator (Red LED) Strobe flasher Volume control Alarm mode switch Tone control Speaker Table mounting FRONT batteries compartment (4 X AA) Wall mounting screw holes REAR Shaker jack Modular Modular jack PTT line or Adaptor jack jack PTT line for a second Amplicall10 (option)
  • Page 3: Installation

    1 - Insert the 4 battery type AA in the compartment . 2 - Connect the telephone line cord of you phone at the Amplicall 10. 3 - Connect the RJ11 to RJ11 cable between the Amplicall and phone...
  • Page 4 INSTALLATION Electrical connection : The apparatus is designed to operate from a 230V 50Hz supply only. (Classified as «hazardous voltage» according to EN60950 standard). The apparatus does not incorporate an integral power on/off switch. To disconnect the power, either switch off supply at the mains power socket or unplug the AC adaptor.
  • Page 5: Alarm Operation

    INSTALLATION Alarm Operation 1 - SETTING THE ALARM MODE Choose which alarm mode you would like, by moving the alarm mode switch to one of the following positions : : no alarm : both strobe flasher and sound alarm selected : both strobe flasher and shaker (if connected) selected.
  • Page 6: Wall Mounting

    INSTALLATION Wall Mounting 1. Drill two holes horizontally, 96mm apart, and leave the screws protruding from the wall by 5mm. 2. Hang the base on to the two screws and pull the base down to lock it into place. Table Mounting If you want to mount the unit on the table, put into the base cradle, and then place the base cradle on the table.
  • Page 7: Troubleshooting

    INSTALLATION Trouble shooting Symptom Solution No incoming call, it 1) Check if the batteries rings automatically or contact well. rings continuously; the 2) Check if the power shaker vibrates adaptor connects automatically or normally. continuously; the 3) Turn off the power camera LED flashes switch for 10 minutes automatically.
  • Page 8 INSTALLATION When it is connected to 1) Check if it is connected the power adaptor or 4 to the shaker correctly. batteries have been 2) Check if the shaker installed , bell rings socket has been normally, or camera damaged. LED blinks normally, 3) Check if the alarm when there is an...
  • Page 9: Garantie

    GARANTIE From the moment your Geemarc product is purchased, Geemarc guarantee it for the period of one year. During this time, all repairs or replacements (at our option) are free of charge. Should you experience a problem then contact our helpline or visit our website at www.geemarc.com.
  • Page 10 - Or, hand the old product to the retailer. If you purchase a new one, they should accept it. Thus if you respect these instructions you ensure human health and environmental protection. For product support and help visit our website at www.geemarc.com Telephone 01707 384438 Or fax 01707 832529...
