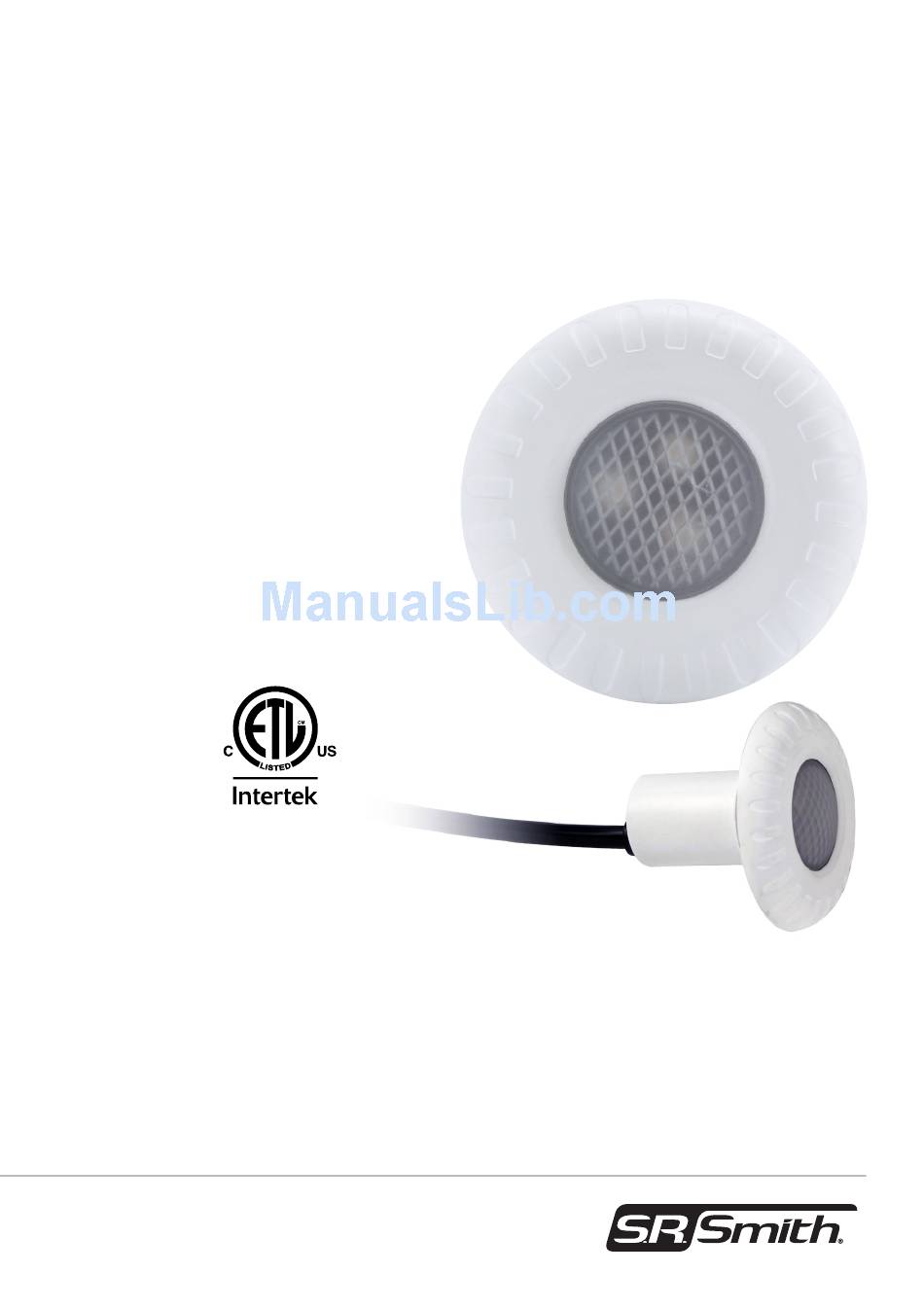

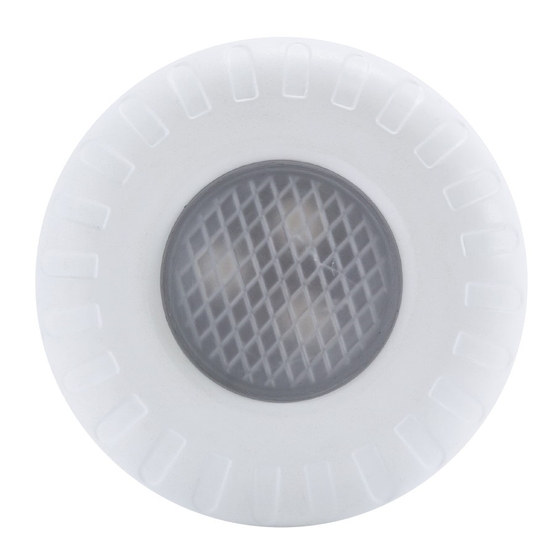

kēlo LED Light
4005496
ETL LISTED
Conforms to UL STD 676;
Certified to CSA STD C22.2 #89
Installation Instructions
Read all instructions before attempting to perform installation work
Installation information applies to both RGB and White Light only models
This product is protected by one or more of the following U.S. Patents: 6781329, 6936978 and 6967448
79-15271-00
Advertisement
Table of Contents
Summary of Contents for S.R.Smith kelo LED light
- Page 1 kēlo LED Light 4005496 ETL LISTED Conforms to UL STD 676; Certified to CSA STD C22.2 #89 Installation Instructions Read all instructions before attempting to perform installation work Installation information applies to both RGB and White Light only models This product is protected by one or more of the following U.S. Patents: 6781329, 6936978 and 6967448 79-15271-00...
-
Page 3: Table Of Contents
Contents OVERALL DIMENSIONS..........4 IMPORTANT INSTALLATION INFORMATION . -
Page 4: Overall Dimensions
NEC article 680 Requirements. Waterproof conduit must be used from the S.R.Smith kēlo LED Light to the ‘above ground’ power supply equipment. For supply connection, use only an isolating low voltage power supply with ungrounded output, evaluated for swimming pool use. -
Page 5: Installation Instructions
12V AC line. Please refer to the illustration below. Fit the S.R.Smith kēlo LED Light into the 1 1/2” wall fitting as shown and carefully pull the waterproof supply cable through. Carefully thread the S.R.Smith kēlo into the threads and turn clockwise and gently tighten until secure. -
Page 6: Winterization
Swimming Pools may or may not be drained completely. If not drained completely, the water level should be lowered below the S.R.Smith kēlo LED Light and make sure that all water is drained from the wall fitting and conduit. Alternatively, the S.R.Smith kēlo LED Light may be removed completely, the conduit purged of all water, and a 1 1/2”... -
Page 7: Advanced Operation Via Acp
A D V A N C E D O P E R A T I O N V I A A C P Advance Control Protocol (ACP) provides dimming and custom color control through a dedicated color remote control. All S.R. Smith LED lights (kēlo , Fiberglass , Treo Micro ®... - Page 8 Questions? 1-800-824-4387 Contact One of Our Dedicated Lighting Specialists. x4012 or x2282 S.R.Smith, LLC P.O. Box 400 | Canby, OR 97013 P 503.266.2231 TF 800.824.4387 srsmith.com © 2018 S.R.Smith. All rights reserved. 79-15271-00 0318...
