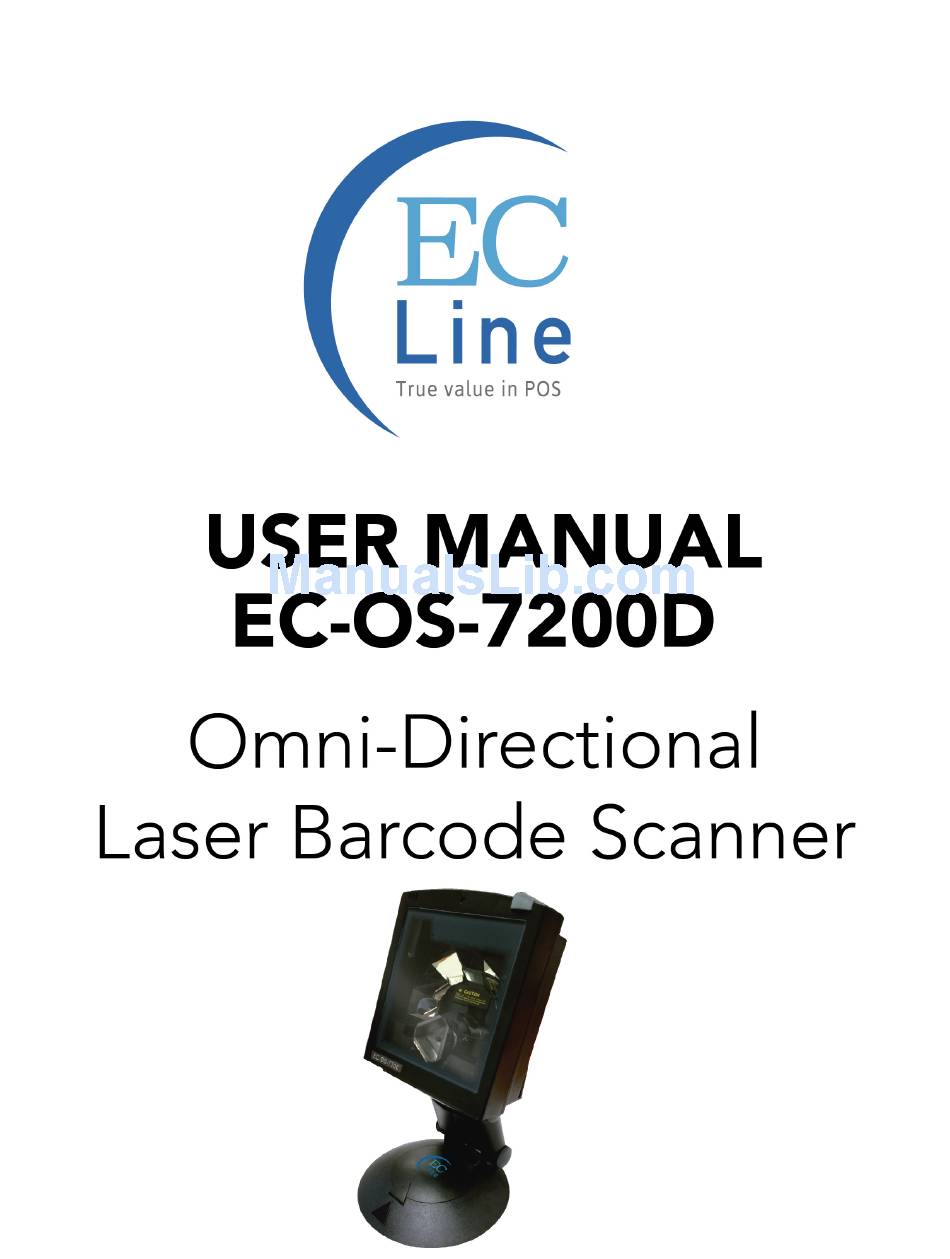

Summary of Contents for EcLine EC-OS-7200D
- Page 2 User’s Manual...
- Page 3 Copyright © 2010 This manual is copyrighted, with all rights reserved. Under the copyright laws, this manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or machine readable form without prior written consent of manufacturer Important This equipment has been tested and found to comply with the limits for a Class B digital...
-
Page 4: Table Of Contents
Table of contents Preface ....................i Chapter 1 Product Overview................ 1 1.1 Unpacking................2 1.2 Declaration of conformity ............4 1.3 Scanning bar codes.............. 5 1.4 Scanner labelling..............6 1.5 Maintaining the scanner............10 1.6 Controlling the scanner from the POS system......11 Chapter 2 Installation.................. -
Page 5: Preface
Preface The unit is a new presentation laser scanner which allows hands free bar code scanning. Bar code labels are read by presenting the labels towards the unit. Scanning labels with this unit hardly requires any arm movement. As a result only little free space on the counter top is necessary. This unit can either be fixed on a counter surface or on a flexible stand. - Page 6 Chaper 1 Product Overview...
-
Page 7: Chapter 1 Product Overview
Product Overview UNPACKING Remove the unit and its accessories from the box and packing material. Refer to the packing list to make sure you have received all the items ordered. Visually inspect the unit and accessories for any evidence of physical damage. Refer to the upper figure on page 5 to locate the interface label and make sure that the unit interface corresponds with the host system interface. - Page 8 Product Overview The specific parts of this unit are: When a sleep mode time-out is programmed, Sleep mode button the unit can be re-activated by pressing this switch. The sleep mode feature is programmable with the menu labels from the Configuration guide.
-
Page 9: Declaration Of Conformity
Product Overview DECLARATION OF CONFORMITY Will comply with the following product specifications: Laser Safety: - IEC 825-1 (1993) Electrical Safety: - EN 60950 (1992), IEC 950 (1991) EMC: - EN 55022:2006 + A1:2007 - EN 61000-3-2: 2006 - EN 61000-3-3: 1995 + A1:2001 + A2:2005 - EN 55024:1998 + A1:2001 + A2:2003 - IEC 61000-4-2: 1995 + A1: 1998 + A2: 2000;... -
Page 10: Scanning Bar Codes
Product Overview SCANNING BAR CODES WITH THE EC-OS-7200 This unit is an omni-directional presentation scanner featuring a 7 directional scan field with a 24 lines scan pattern. Bar code labels can easily be read by presenting them to the unit. The unit's scan volume is illustrated in the figure below. -
Page 11: Scanner Labelling
Product Overview SCANNER LABELLING Two labels are present on the housing of the EC-OS-7200 as indicated in the figure below. Two labels are also visible through the unit window. All labels are attached by the manufacturer and should not be removed. The unit’s serial number is found underneath the bar code label as depicted in the figure above. -
Page 12: Laser Safety
Product Overview Laser safety German: Der Strichcode-Scanner entspricht den Sicherheitsvorschriften nach IEC 825-1 (1993) für ein Laserprodukt der Klasse I. Er entspricht auch U.S. 21CFR1040, anwendbar auf ein Laserprodukt der Klasse IIa. Vermeiden Sie langzeitiges Hineinblicken in direktes Laserlicht. Dutch: De scanner voldoet aan de veiligheidsnormen IEC 825-1 (1993) voor een Klasse I laserproduct. - Page 13 Product Overview Spanish: El scanner reune las normas de seguridad IEC 825-1 (1993) para un producto laser de Clase 1. Y también reune las normas U.S. 21CFR1040 que se aplican a un producto laser de Clase IIa. Se debe evitar mirar muy fijo en luz lasérica directa. English: The scanner complies with safety standard IEC 825-1 (1993) for a Class I laser product.
-
Page 14: Maintaining The Scanner
Product Overview MAINTAINING THE SCANNER The unit requires little maintenance. Only occasional cleaning of the unit window is necessary to remove dirt and fingerprints. Cleaning can be performed during operation with a non-abrasive glass spray cleaner and a soft lint-free cloth. -
Page 15: Controlling The Scanner From The Pos System
Product Overview CONTROLLING THE SCANNER FROM THE POS SYSTEM The EC-OS-7200 can be controlled from the POS system via the RS232C interface. Control is achieved by transmitting the following single byte commands to the unit. Default setting the following commands are available (more details upon request): ASCII code function... -
Page 17: Chapter 2 Installation
ation Chapter 2 Install... -
Page 18: Connecting The Scanner
Installation Depending on the way you want to use the unit, this unit can be installed in two different ways: fixed on a counter surface or on a flexible stand. Instructions for installation on a counter surface are given in Section 2.1. Instructions for installation on the flexible stand are given in Section 2.2. - Page 19 Installation Use the illustration below to see where to connect your cable(s) to the unit. Before closing the back cover later on (see mounting instructions in chapter 2.3 and 2.4) guide the cables through the unit as shown in the illustration below. Data port 1.
-
Page 20: Interface Selection
Installation INTERFACE SELECTION This unit allows you to connect your host system using four different interface cables: RS232, Keyboard Wedge, USB, and Powered USB. On powering up, the unit senses the type of the interface used and switches to the appropriate protocol. Interface Cable Connector type RS232 (Product Number: 0114-S806121) -
Page 21: Installing The Scanner On A Counter Surface
Installation INSTALLING THE SCANNER ON A COUNTER SURFACE To install the unit without the flexible scanner stand, follow the instructions below. 1. Remove the two rubber feet from the back cover. Lead the communication cable and power supply cable through the slit. Fasten the back cover to the surface with two screws as illustrated in the figure. - Page 22 Installation 3. Plug the remote ends of all cables into the appropriate connections of your host POS-system. 4. If you are using an external power supply, power on the unit by plugging the power supply into an AC power outlet. Switch on the host system. IMPORTANT To activate USB or KBW interface, scan the following codes from the Configuration Guide:...
-
Page 23: Installing The Scanner With The Counter Stand
Installation INSTALLING THE SCANNER WITH THE COUNTER STAND To install the unit with the light stand, follow the instructions below: 1. Fix the stand to the desired place using screws and the screw holes on the stand. 2. Get all cables connected. 3. - Page 24 Installation 2. Place the bottom plate on the counter and mark the places for the mounting holes on the counter top and mark the hole to lead the cables through. 3. Drill the mounting holes and the lead-through hole. NOTE If you prefer not to drill in your counter, you can mount the stand using the provided double-sided tape and have the cables leave the foot at the rear, just above the circular basis.
- Page 25 Installation 6. Click the stand on the bottom plate. 7. Connect the cables to the unit. Refer (for the data cable in particular) to chapter 2.1 for the correct connections. 8. Place this unit onto the flexible stand and rotate the unit as indicated in the figure.
-
Page 26: Removing The Scanner From The Back Cover Plate
Installation REMOVING THE SCANNER FROM THE BACK COVER PLATE To remove this unit from the back cover plate, that is either attached on the counter or on the scanner stand: 1. Locate the small hole at the back cover of the unit. 2. -
Page 27: Appendices
Appendices A. Connector types and pin definitions B. Technical Specifications C. Troubleshooting... -
Page 28: Aconnector Types And Pin Definitions
Appendices CONNECTOR TYPES AND PIN DEFINITIONS This unit supports triple interface in one standard unit: RS232, Keyboard Wedge (KBW) and USB/USB plus power. The various pin definitions for the applicable Data port are given on page 20 and 21. The connector to be used for the port is indicated below. - Page 29 Appendices Pin definition for all scanner versions: AUX Port for HH scanner Description Direction Description Direction +5 VDC output ( - ) input input (reserved) POWER output Description Direction (reserved) +12V input (reserved) (reserved) (reserved) The EAS connection is used to connect the internal deactivation antenna to an external EAS control unit.
- Page 30 Appendices...
-
Page 31: Btechnical Specifications
Appendices TECHNICAL SPECIFICATIONS Electrical Power supply voltage 100 – 240 V ac 50/60 Hz (adapter) DC input to scanner 12VDC, 165mA nominal, 95mA standby Interfaces RS-232 + USB + Powered-USB + Keyboard Wedge Optical Light source Visible laser diode (650 nm) Depth of field 330 mm Scan pattern... - Page 32 Appendices Physical Weight 500 g Weight with stand 675 g Dimensions H x W x D : 146 x 135 x 61 mm : 5.75 x 5.35 x 2.40 inch Dimensions with stand H x W x D : 215-237 x 135 x 135 mm : 8.47 –...
-
Page 33: Ctroubleshooting
Appendices TROUBLESHOOTING This section contains information on solving problems you may encounter when using the unit. If troubles occur, take a moment to read the information in this section. However, before referring to the diagnostic tips make sure that the unit is installed as described in Chapter 2 and that all cables are properly connected. - Page 34 Appendices Problem Diagnostic Tips The LED is orange. The laser is not functioning. The laser is defective. Contact your supplier. The ambient temperature is too The LED is blinking orange. high. Make sure the unit has enough air ventilation and is not placed in direct sunlight.
- Page 35 Appendices Problem Diagnostic Tips Unless you use USB plus power, you USB is not working need a separate power connection to the unit like the external power supply. Restart the unit by temporarily disconnecting the power. This may help the POS system to detect the unit.
