Amphenol RETU-Ex01 Installation Manual

RETU-Ex01 Installation Guide

Overview

These instructions describe how to fit a RETU-Ex01 (RET) to an Amphenol Antenna Solutions SmartTilt antenna with remote adjustable
electrical tilt.
Typically, the RET unit is installed at the factory and further install work or adjustment isn't necessary. However, it can be retrofitted to a
manually adjustable electrical tilt antenna that has already been installed, or is at a warehouse.
NOTE The entire installation process should take place ON THE GROUND, in order to minimize the need for an expensive
and time consuming tower climb!

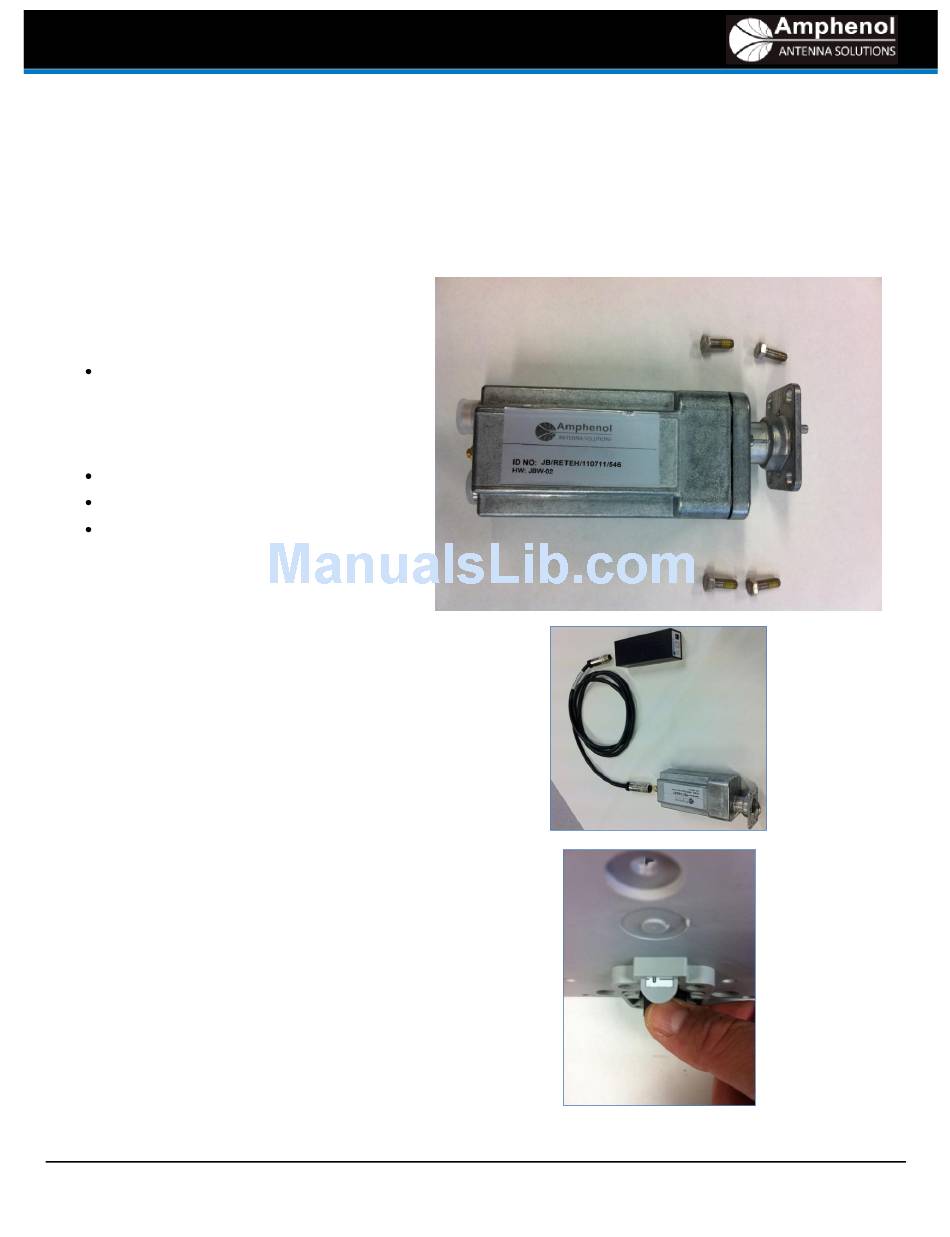

Check the Parts

Amphenol Antenna Solutions part number RETU-
Ex01 Contains:
RET unit (replace x with):
o
B = AISG 1.1
o
G = AISG 2.0 / 3GPP
o
E = Ericsson Mode
Caps for male AISG type connectors
Caps for female AISG type connectors
Four machine screws

Check Cables

Make sure you have the correct AISG jumper
cables to interconnect the RET to the PCU-4
(or alternate) controller.
Each cable has a male connector on one end
and a female on the other.
The male connector plugs into the PCU-4, and
the female to the RET unit.

Set Antenna to Minimum Tilt

1. Rotate knob clockwise ½ degree beyond
the minimum tilt value on the indicator
gauge.
2. Rotate knob counter-clockwise until the
minimum tilt setting is achieved.
RETU_Ex01_IG ©2013 Amphenol Antenna Systems | www.amphenol-antennas.com Page 1 of 2
