CableVision Scepter M4501 User Manual

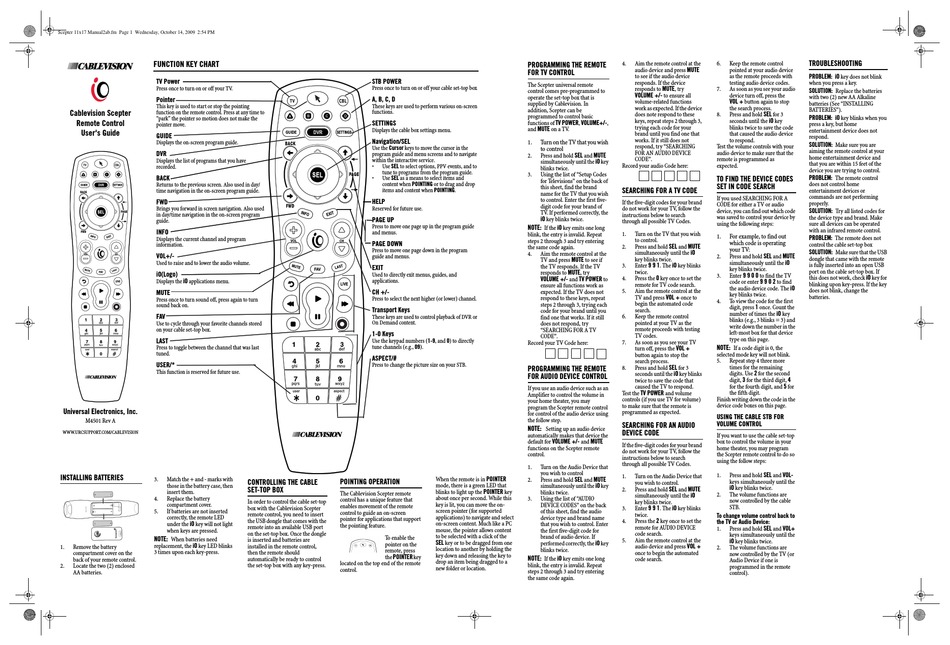

Scepter 11x17 Manual2ab.fm Page 1 Wednesday, October 14, 2009 2:54 PM

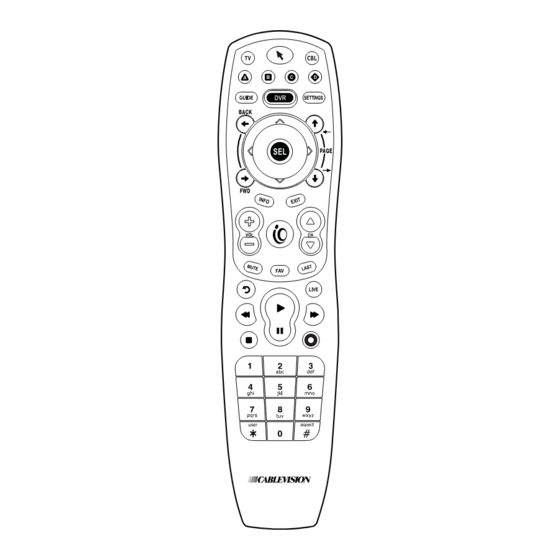

FUNCTION KEY CHART
FUNCTION KEY CHART
1. Remove the battery
compartment cover on the
TV Power
TV Power
back of your remote control.
Press once to turn on or off your TV.
Press once to turn on or off your TV.
2. Locate the two (2) enclosed
Pointer AA batteries.
Pointer
3. This key is used to start or stop the pointing Match the + and - marks
This key is used to start or stop the pointing
Cablevision Scepter function on the remote control. Press at any time to with those in the battery
function on the remote control. Press at any time to
"park" the pointer so motion does not make the case, then insert them.
"park" the pointer so motion does not make the
Remote Control
pointer move.
4. Replace the battery
pointer move.
compartment cover.
User's Guide
GUIDE
GUIDE 5. If batteries are not inserted
Displays the on-screen program guide.
Displays the on-screen program guide. correctly, the remote LED
under the iO key will not
DVR
DVR
light when keys are pressed.
Displays the list of programs that you have
Displays the list of programs that you have
NOTE: When batteries need
recorded.
recorded.
replacement, the IO key LED will
blink 3 times upon each key-press. BACK
BACK
Returns to the previous screen. Also used in day/
Returns to the previous screen. Also used in day/
CONTROLLING THE CABLE time navigation in the on-screen program guide.
time navigation in the on-screen program guide.
SET-TOP BOX
FWD
FWD
Brings you forward in screen navigation. Also used
Brings you forward in screen navigation. Also used
In order to control the cable set-
in day/time navigation in the on-screen program
in day/time navigation in the on-screen program
top box with the Cablevision
guide.
guide.
Scepter remote control, you need
to insert the USB dongle that INFO
INFO
comes with the remote into an Displays the current channel and program
Displays the current channel and program
available USB port on the set-top information.
information.
box. Once the dongle is inserted
VOL+/-
VOL+/-
Used to raise and to lower the audio volume.
Used to raise and to lower the audio volume.
iO(Logo)
IO(Logo)
Displays the iO applications menu.
Displays the IO applications menu.
MUTE
MUTE
Press once to turn sound off, press again to turn
Press once to turn sound off, press again to turn
sound back on.
sound back on.
FAV
FAV
Use to cycle through your favorite channels stored
Use to cycle through your favorite channels stored
on your cable set-top box.
on your cable set-top box.
LAST
LAST
Press to toggle between the channel that was last
Press to toggle between the channel that was last
tuned.
tuned.
USER/*
USER/*
This function is reserved for future use.
This function is reserved for future use.
Universal Electronics, Inc.
M4501 Rev A
WWW.URCSUPPORT.COM/CABLEVISION
INSTALLING BATTERIES
3. Match the + and - marks with
those in the battery case, then
insert them.
4. Replace the battery
compartment cover.
5. If batteries are not inserted
correctly, the remote LED
under the iO key will not light
when keys are pressed.
NOTE: When batteries need
replacement, the iO key LED blinks
1. Remove the battery
3 times upon each key-press.
compartment cover on the
back of your remote control.
2. Locate the two (2) enclosed
AA batteries.
STB POWER
STB POWER
Press once to turn on or off your cable set-top box.
Press once to turn on or off your cable set-top box
A, B, C, D
A, B, C, D
These keys are used to perform various on-screen
These functions are used for interactive
functions.
applications or to sort your on-screen program
guide:
SETTINGS
A-Sorts the guide by time
Displays the cable box settings menu.
B-Sorts the guide by theme
Navigation/SEL
C-Sorts the guide by title
Use the Cursor keys to move the cursor in the
SETTINGS program guide and menu screens and to navigate
within the interactive service.
Displays the cable box settings menu.
• Use SEL to select options, PPV events, and to
Navigation/SEL tune to programs from the program guide.
• Use SEL as a means to select items and
Use the Cursor keys to move the cursor in the
content when POINTING or to drag and drop
program guide and menu screens and to navigate
items and content when POINTING.
within the interactive service.
• Use SEL to select options, PPV events, and to
HELP
tune to programs from the program guide.
Reserved for future use.
• Use SEL as a means to select items and
content when POINTING or to drag and drop
PAGE UP
items and content when POINTING.
Press to move one page up in the program guide
PAGE UP
and menus.
Press to move one page up in the program guide
PAGE DOWN
and menus.
Press to move one page down in the program
PAGE DOWN
guide and menus.
Press to move one page down in the program
EXIT
guide and menus.
Used to directly exit menus, guides, and
EXIT
applications.
Used to directly exit menus, guides, and
CH +/-
applications.
Press to select the next higher (or lower) channel.
CH +/-
Transport Keys
Press to select the next higher (or lower) channel.
These keys are used to control playback of DVR or
HELP On Demand content.
Used to trigger on-screen help tips.
1-0 Keys
Transport Keys Use the keypad numbers (1-9, and 0) to directly
tune channels (e.g., 09).
These keys are used to control playback of DVR or
On Demand content.
ASPECT/#
1-0 Keys Press to change the picture size on your STB.
Use the keypad numbers (1-9, and 0) to directly
tune channels (e.g., 09).
ASPECT/#
Press to change the aspect ratio (4:3 or 16:9) on
your STB.
POINTING OPERATION
CONTROLLING THE CABLE
SET-TOP BOX
The Cablevision Scepter remote
control has a unique feature that
In order to control the cable set-top
enables movement of the remote
box with the Cablevision Scepter
control to guide an on-screen
remote control, you need to insert
pointer for applications that support
the USB dongle that comes with the
the pointing feature.
remote into an available USB port
on the set-top box. Once the dongle
To enable the
is inserted and batteries are
pointer on the
installed in the remote control,
remote, press
then the remote should
the POINTER key
automatically be ready to control
located on the top end of the remote
the set-top box with any key-press.
control.
PROGRAMMING THE REMOTE
FOR TV CONTROL
The Scepter universal remote
control comes pre-programmed to
operate the set-top box that is
supplied by Cablevision. In
addition, Scepter can be
programmed to control basic
functions of TV POWER, VOLUME+/-,
and MUTE on a TV.
1. Turn on the TV that you wish
to control
2. Press and hold SEL and MUTE
simultaneously until the iO key
blinks twice.
3. Using the list of "Setup Codes
for Televisions" on the back of
this sheet, find the brand
name for the TV that you wish
to control. Enter the first five-
digit code for your brand of
TV. If performed correctly, the
iO key blinks twice.
NOTE:
If the iO key emits one long
blink, the entry is invalid. Repeat
steps 2 through 3 and try entering
the same code again.
4. Aim the remote control at the
TV and press MUTE to see if
the TV responds. If the TV
responds to MUTE, try
VOLUME +/- and TV POWER to
ensure all functions work as
expected. If the TV does not
respond to these keys, repeat
steps 2 through 3, trying each
code for your brand until you
find one that works. If it still
does not respond, try
"SEARCHING FOR A TV
CODE".
Record your TV Code here:
PROGRAMMING THE REMOTE
FOR AUDIO DEVICE CONTROL
If you use an audio device such as an
Amplifier to control the volume in
your home theater, you may
program the Scepter remote control
for control of the audio device using
the follow step.
NOTE:
Setting up an audio device
automatically makes that device the
default for VOLUME +/- and MUTE
functions on the Scepter remote
control.
1. Turn on the Audio Device that
you wish to control
When the remote is in POINTER Press and hold SEL and MUTE
2.
mode, there is a green LED that
simultaneously until the iO key
blinks to light up the POINTER key blinks twice.
about once per second. While this
3. Using the list of "AUDIO
key is lit, you can move the on-
DEVICE CODES" on the back
screen pointer (for supported of this sheet, find the audio
applications) to navigate and select
device type and brand name
on-screen content. Much like a PC that you wish to control. Enter
mouse, the pointer allows content
the first five-digit code for
to be selected with a click of the
brand of audio device. If
SEL key or to be dragged from one performed correctly, the iO key
location to another by holding the
blinks twice.
key down and releasing the key to
NOTE: If the iO key emits one long
drop an item being dragged to a
blink, the entry is invalid. Repeat
new folder or location.
steps 2 through 3 and try entering
the same code again.
4. Aim the remote control at the 6. Keep the remote control
audio device and press MUTE pointed at your audio device
to see if the audio device as the remote proceeds with
responds. If the device testing audio device codes.
responds to MUTE, try 7. As soon as you see your audio
VOLUME +/- to ensure all device turn off, press the
volume-related functions VOL + button again to stop
work as expected. If the device the search process.
does note respond to these 8. Press and hold SEL for 3
keys, repeat steps 2 through 3, seconds until the iO key
trying each code for your blinks twice to save the code
brand until you find one that that caused the audio device
works. If it still does not to respond.
respond, try "SEARCHING Test the volume controls with your
FOR AN AUDIO DEVICE audio device to make sure that the
CODE". remote is programmed as
Record your audio Code here: expected.
TO FIND THE DEVICE CODES
SET IN CODE SEARCH
SEARCHING FOR A TV CODE
If you used SEARCHING FOR A
If the five-digit codes for your brand
CODE for either a TV or audio
do not work for your TV, follow the
device, you can find out which code
instructions below to search
was saved to control your device by
through all possible TV Codes.
using the following steps:
1. Turn on the TV that you wish
1. For example, to find out
to control.
which code is operating
2. Press and hold SEL and MUTE
your TV:
simultaneously until the iO
2. Press and hold SEL and MUTE
key blinks twice.
simultaneously until the iO
3. Enter 9 9 1. The iO key blinks
key blinks twice.
twice.
3. Enter 9 9 0 0 to find the TV
4. Press the 0 key once to set the
code or enter 9 9 0 2 to find
remote for TV code search.
the audio device code. The iO
5. Aim the remote control at the
key blinks twice.
TV and press VOL + once to
4. To view the code for the first
begin the automated code
digit, press 1 once. Count the
search.
number of times the iO key
6. Keep the remote control
blinks (e.g., 3 blinks = 3) and
pointed at your TV as the
write down the number in the
remote proceeds with testing
left-most box for that device
TV codes.
type on this page.
7. As soon as you see your TV
turn off, press the VOL + NOTE: If a code digit is 0, the
selected mode key will not blink.
button again to stop the
search process. 5. Repeat step 4 three more
Press and hold SEL for 3 times for the remaining
8.
digits. Use 2 for the second
seconds until the iO key blinks
twice to save the code that digit, 3 for the third digit, 4
for the fourth digit, and 5 for
caused the TV to respond.
Test the TV POWER and volume the fifth digit.
controls (if you use TV for volume) Finish writing down the code in the
device code boxes on this page.
to make sure that the remote is
programmed as expected.
USING THE CABLE STB FOR
VOLUME CONTROL
SEARCHING FOR AN AUDIO
DEVICE CODE
If you want to use the cable set-top
box to control the volume in your
If the five-digit codes for your brand
home theater, you may program
do not work for your TV, follow the
the Scepter remote control to do so
instructions below to search
using the follow steps:
through all possible TV Codes.
1. Press and hold SEL and VOL-
1. Turn on the Audio Device that
keys simultaneously until the
you wish to control.
iO key blinks twice.
2. Press and hold SEL and MUTE
2. The volume functions are
simultaneously until the iO
now controlled by the cable
key blinks twice.
STB.
3. Enter 9 9 1. The iO key blinks
twice.
To change volume control back to
4. Press the 2 key once to set the
the TV or Audio Device:
remote for AUDIO DEVICE
1. Press and hold SEL and VOL+
code search.
keys simultaneously until the
5. Aim the remote control at the
iO key blinks twice.
audio device and press VOL +
2. The volume functions are
once to begin the automated
now controlled by the TV (or
code search.
Audio Device if one is
programmed in the remote
control).
TROUBLESHOOTING
PROBLEM: iO key does not blink
when you press a key.
SOLUTION: Replace the batteries
with two (2) new AA Alkaline
batteries (See "INSTALLING
BATTERIES").
PROBLEM: iO key blinks when you
press a key, but home
entertainment device does not
respond.
SOLUTION: Make sure you are
aiming the remote control at your
home entertainment device and
that you are within 15 feet of the
device you are trying to control.
PROBLEM: The remote control
does not control home
entertainment devices or
commands are not performing
properly.
SOLUTION: Try all listed codes for
the device type and brand. Make
sure all devices can be operated
with an infrared remote control.
PROBLEM: The remote does not
control the cable set-top box
SOLUTION: Make sure that the USB
dongle that came with the remote
is fully inserted into an open USB
port on the cable set-top box. If
this does not work, check iO key for
blinking upon key-press. If the key
does not blink, change the
batteries.
