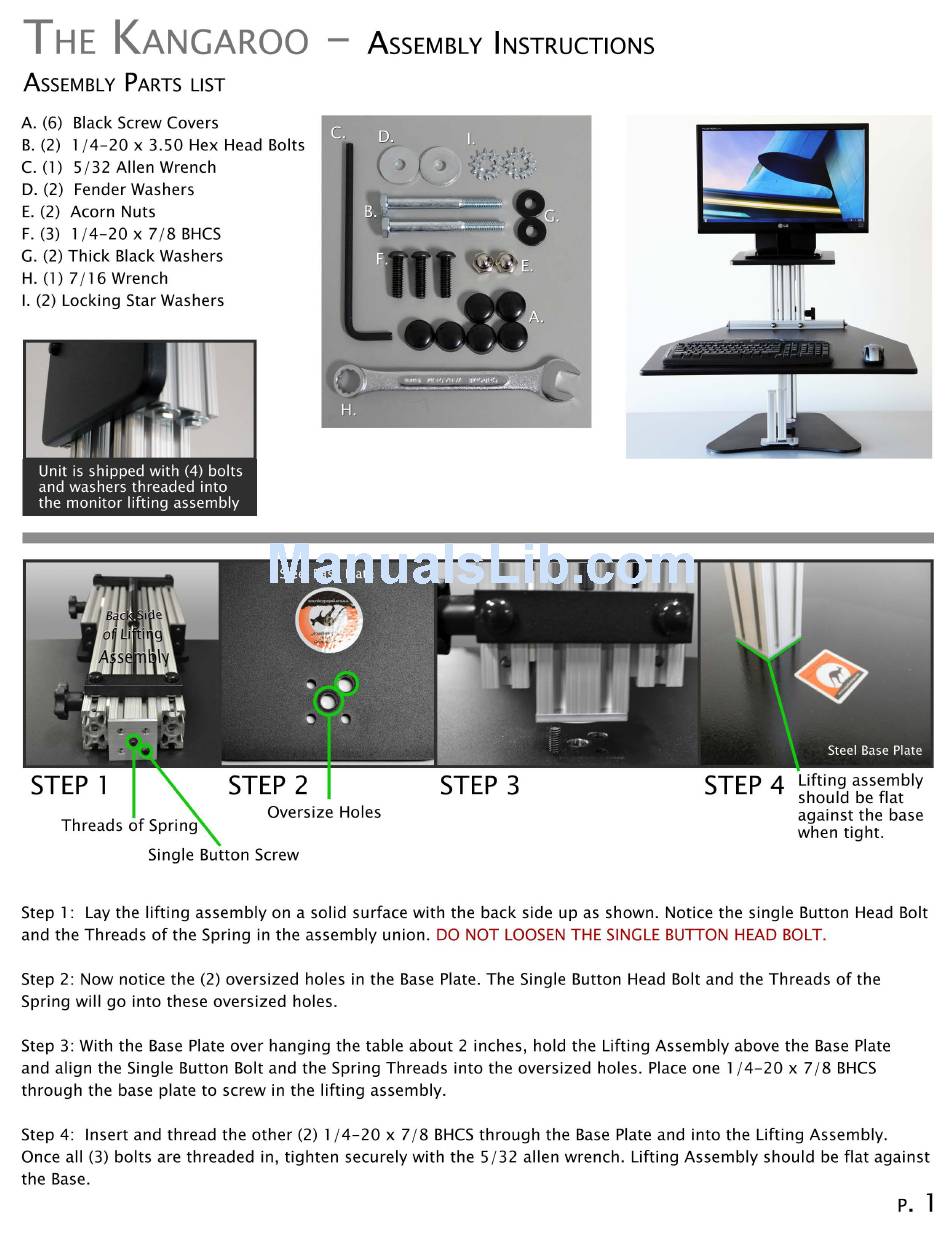

ProjectErgo KANGAROO Assembly Instructions

THE KANGAROO -
ASSEMBLY INSTRUCTIONS
Ass
EMBLY
PARTS usT
A. (6) Black Screw Covers
B. (2) 1 / 4-20 x 3.50 Hex Head Bolts
C.
(1)
5 / 32 Allen Wrench
D. (2) Fender Washers
E. (2) Acorn Nuts
F. (3) 1 / 4-20 x 7 / 8 BHCS
G. (2) Thick Black Washers
H. (1) 7 / 16 Wrench
I. (2) Locking Star Washers
Lifting assembly
should be flat
against the base
when tight.
Single Button Screw
Step 1: Lay the lifting assembly on a solid surface with the back side up as shown. Notice the single Button Head Bolt
and the Threads of the Spring in the assembly union . DO NOT LOOSEN THE SINGLE BUTTON HEAD BOLT.
Step 2: Now notice the (2) oversized holes in the Base Plate. The Single Button Head Bolt and the Threads of the
Spring will go into these oversized holes .
Step 3: With the Base Plate over hanging the table about 2 inches, hold the Lifting Assembly above the Base Plate
and align the Single Button Bolt and the Spring Threads into the oversized holes. Place one 1 / 4-20 x 7 / 8 BHCS
through the base plate to screw in the lifting assembly.
Step 4: Insert and thread the other (2) 1 / 4-20 x 7 / 8 BHCS through the Base Plate and into the Lifting Assembly.
Once all (3) bolts are threaded in, tighten securely with the 5 / 32 allen wrench . Lifting Assembly should be flat against
the Base.
P.
1
