Bincolor BC-960-10A User Manual

Constant Voltage LED Power Repeater
8. After-Sales
From the day you purchase our products within 3 years, if being used properly in
accordance with the instruction, and quality problems occur, we provide free repair or
replacement services except the following cases:
1.Any defects caused by wrong operations.
2.Any damages caused by inappropriate power supply or abnormal voltage.
3.Any damages caused by unauthorized removal, maintenance, modifying circuit, incorrect
connections and replacing chips.
4.Any damages due to transportation, breaking, flooded water after the purchase.
5.Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of
natural disasters.
6.Any damages caused by negligence, inappropriate storing at high temperature and
humidity environment or near harmful chemicals.
7.Product has been updated.
9. Kindly Reminder
1.Power Source Selection
Power source must be DC constant voltage type of power supply. Due to the efficient output
in some power supplies are only 80% of total, so please select at least 20% higher output
power supply than the consumption of LED lights.
Constant Voltage LED Power Repeater
4. Safety warnings
Please don't install this controller in lightening, intense magnetic and high-voltage fields.
1.To reduce the risk of component damage and fire caused by short circuit, make sure
correct connection
2.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a
fitting temperature.
3.Check if the voltage and power adapter suit the controller
(please select DC12-24V power supply with constant voltage)
4.Don't connect cables with power on; make sure a correct connection and no short circuit
checked with instrument before power on.
5.Please don't open controller cover and operate if problems occur.
The manual is only suitable for this model; any update is subject to change without prior
notice.

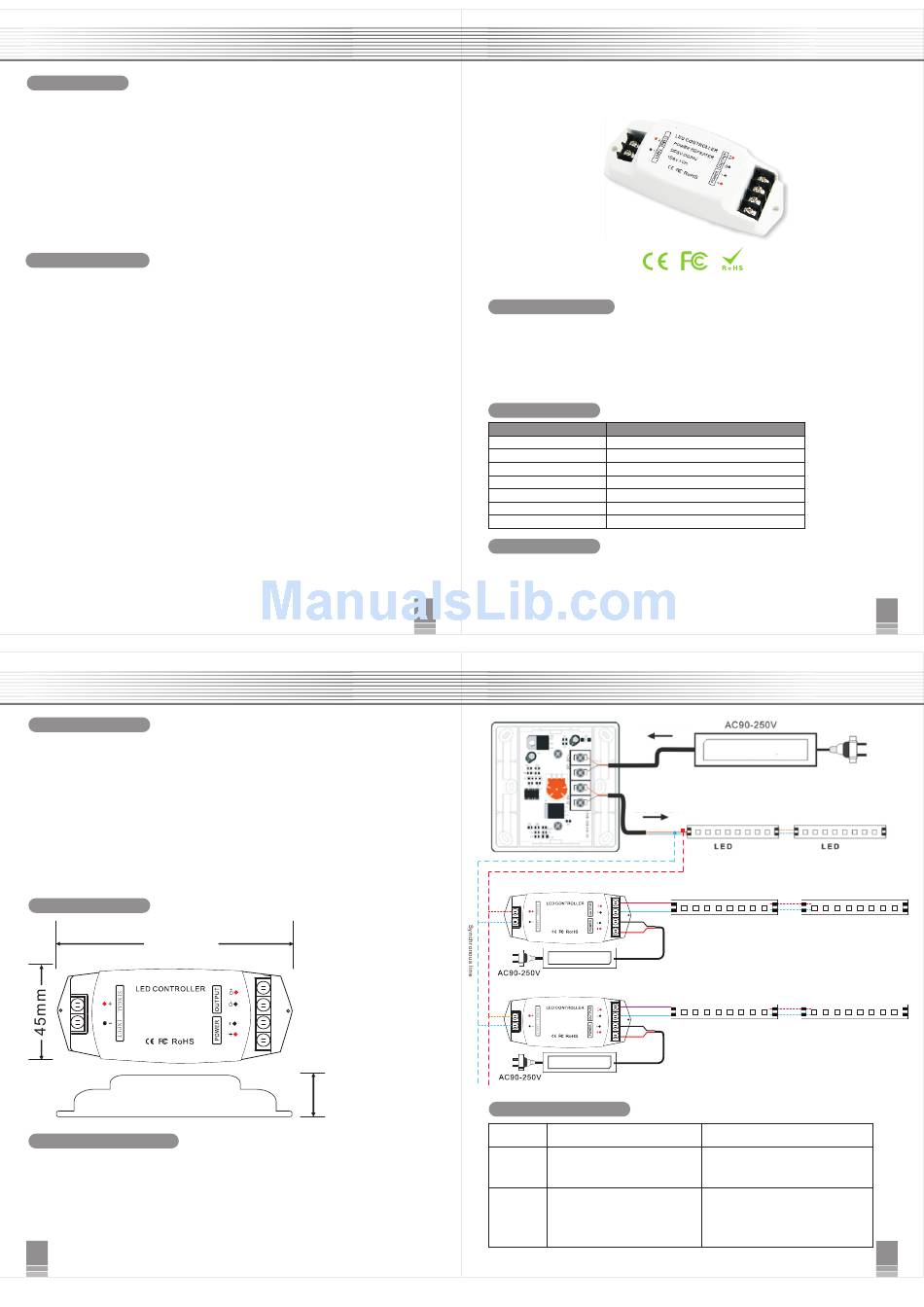

5. Dimensions
125mm
POWER REPEATER
DC5V-DC24V
10AX1CH
6. Conjunction Diagram
1) Repeaters connected to LED Wall Dimmer
2
5. Dimensions
power expansion, it accepts PWM control, the control quantity of LED lights would be
twice as much by adding one more power repeater, unlimited quantity of power repeater
can be connected theoretically. Also, the power repeater of constant voltage model and
constant current model could be connected freely, suitable for synchronized controlling on
different LED lamps.
1.Single output channel, totally 10A.
2.Accept PWM control.
3.Unlimited connection quantity theoretically, unlimited power output expansion.
4.Maximum length from controller to repeater can be 500meters.
4
5.Power loss memory function.
+
+
36mm
Malfunction
Brightness of the
LED is not even
Constant Voltage LED Power Repeater

User Manual

(Please read through this manual carefully before use)
1. Brief Introduction
LED Power Repeater is suitable for all of our company's power-output style controllers'
2. Specifications
Model Single channel 10A
Input voltage
DC5V-24V
Max load current
10A/CH×1
Output signal Constant Voltage PWM
Max output power 50W(5V)120W(12V)240W(24V)
Dimension L125×W45×H36(mm)
Package Size L130×W47×H42(mm)
Weight (G.W) 85g
3. Basic Features
DC5V-24V
DC5V-24V
+
-
-
POWER REPEATER
-
DC5V-DC24V
10AX1CH
+
CONSTANT VOLTAGE POWER SUPPLY
DC5V-24V
+
-
- POWER REPEATER
-
DC5V-DC24V
10AX1CH
+
CONSTANT VOLTAGE POWER SUPPLY
DC5V-24V
7. Exception Handles
Causation
1.No power from the socket
No Light
2.Reverse connection of power +/-
3. Wrong or loose connection
1.Output wire too long, voltage drops
2. Wire diameter too slim, voltage drops.
3. Power supplier overloads
4,Controller overload
Constant Voltage LED Power Repeater
Constant Voltage LED Power Repeater
CONSTANT VOLTAGE POWER SUPPLY
Strip Strip
LED Strip LED Strip
LED Strip LED Strip
Solution
1.Check the socket
2,Modify the connection
3,Check connection
1. Reduce cable or use loop connection.
2,calculate the current and change to a wider wire
3,Change to another large power supplier
4. Add a power repeater
1
3
