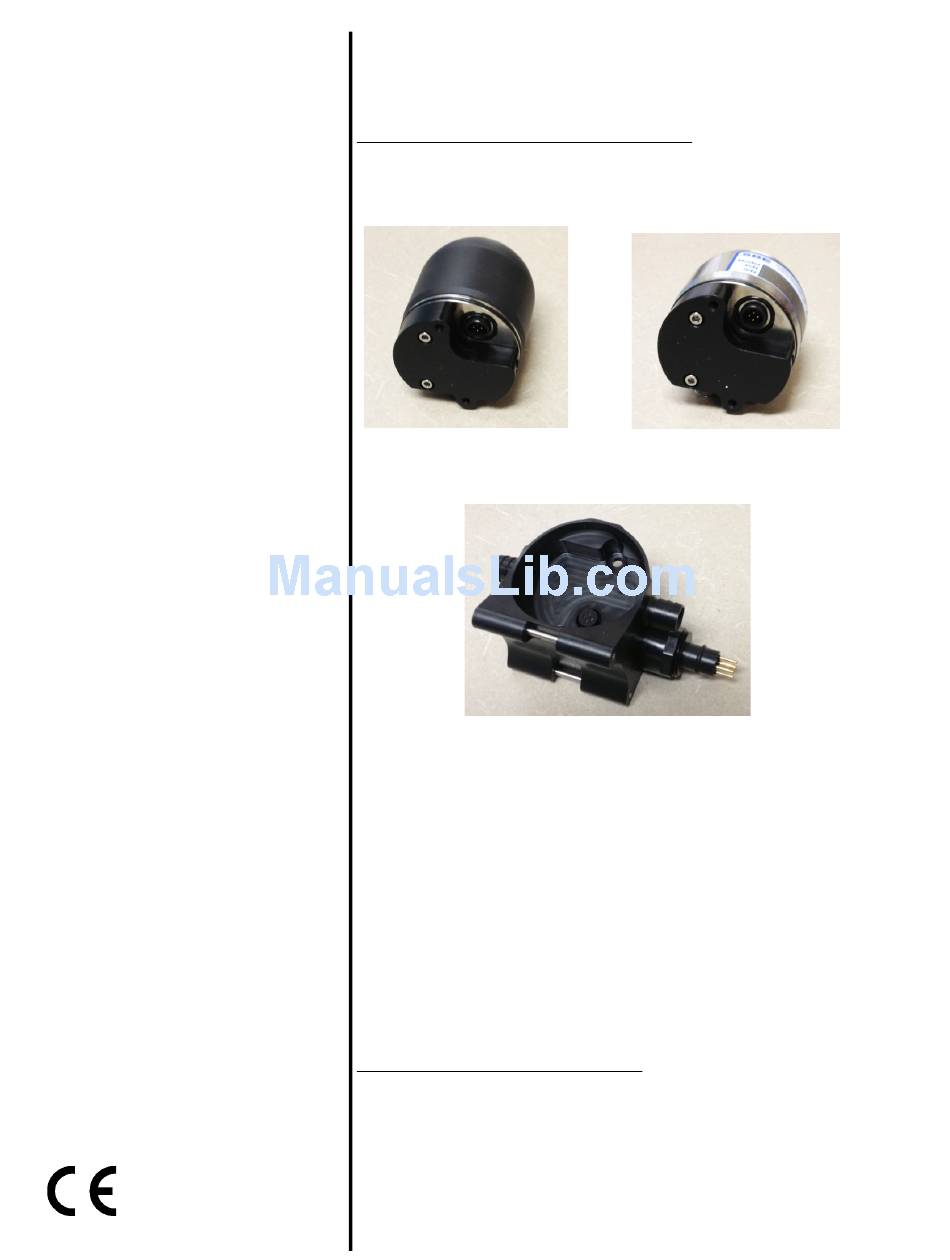

SBE 63
Digital Optical Dissolved Oxygen Sensor
SBE 63 DO Sensor
SBE 63 DO Sensor
(titanium housing)
(plastic housing)
Optional Sensor Mount for
installation on SeaCAT CTD
User's Manual
Sea-Bird Electronics, Inc.
th
13431 NE 20
Street
Bellevue, Washington 98005 USA
Telephone: 425/643-9866
Manual Version #005, 04/15/13
Fax: 425/643-9954
Firmware Version 3.0.1 and later
E-mail: seabird@seabird.com
SeatermV2 version 2.2.6 and later
Website: www.seabird.com
