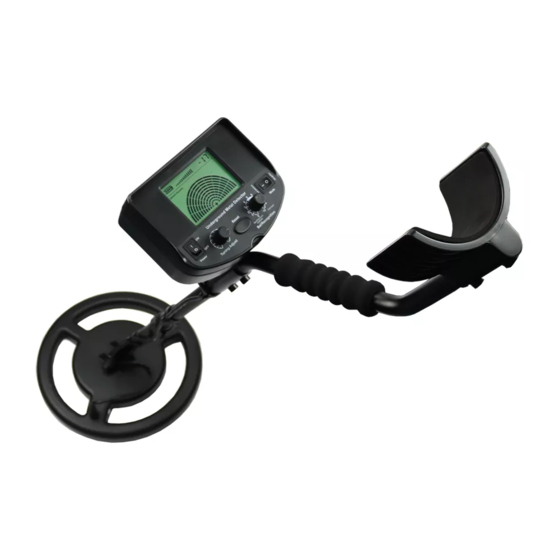

Smart Sensor AR924+ Instruction Manual

Model: AR924

Metal Detector

Instruction Manual
Version
：SZ924+-1-00
3. Parts and assembly diagram
3.1 Parts
While purchasing, check the package
contents carefully:
<01>Upper stem*1PCS
<02>Main panel*1PCS
<03>3.7 V li-battery*1PCS
<04>Washer(M5.0)*4PCS
<05>Screw B (M5.0*14PM)*2PCS
<06>Screw A(M5.0*33PM)*2PCS
<07>Lead wire*1PCS
<08>Extension Aluminum tube*1PCS
<09>Clip*3PCS
<10>Main panel metal bracket*1PCS
<11>Conection bracket*1PCS
<12>Nut bracket*1PCS
（ ）
<13> Nut M5.0 *2PCS
<14>Nylon bolt
<15>Nylon screw
<16>Connecting rod *1PCS
<17>Plastic screw
<18>Plastic bolt*1PCS
<19>Plastic wrench*1PCS
<20>Searh coil*1pcs
If any parts miss before purchase, please
consult your dealer.
4 . Features
①
Power OFF/ON
②
Torch light switch
③
Calibration button
④
Backlight
1.Introduction
Thank you for choosing Smart Sensor Metal
Detector. This unit adopt latest electronic technology
+
provide with ground balance function which can
eliminate the effect caused by Mineralization
",
reaction besides the metal type mode can identify
that the detected subject is ferrous or non-ferrous
metal, enhance the effectively detect depth &
accuracy. It is easy to operate with big probing
、
depth accuracy appointed high resolution
features. In order to take full advantage &
functions of metal detection, please
read carefully before using this manual.
1.1 Application
Except for the military purpose, This unit
also suitable for following fields:
Police quick searching
Metal object detection in material, fuel,
food stuff
Metal object detection on mail, baggage
Hunting buried pipe, cable
Relic & Mineral hunting
Cache treasure & mineral hunting
1.2 Mineralization reaction
The kinds of the minerals which consist of soil
can make unit send signal. When using old type
metal detector, the signal changed with distance
between sensor and floor, if use sensor scan the
rough floor, the signal change a lot. on the complex
soil place, the signal caused by soil is much bigger
than metal, this phenomenon named
"
M ineralization reaction
⑤
Normal scan and metal type mode selection
⑥
Sensitivity adjustment button
⑦
Charging indication
⑧
LCD
⑨
Earphone jack
⑩
Charging port
⑩ ⑩
11
Voice adjustment switch
METAL FERROUS METAL
Light ON
I
Underground Metal Detector
0
Power OFF/ON
Light OFF
①
Calibration
②
③
Earphone
⑨
"
、
".
5. Specification
⑧
NONFERROUS METAL
SENSITIVITY
6. Operations
AR924 + Normal scan
The operation is same as Sapper detect
landmine, when detect, keep 10-15cm from the
Charger
Adjust
floor and canning in the horizontal level to avoid
Metal type
lowering the actual detect depth.
⑥
Backlight
⑤
④
⑦
Voice adjust
DC 5V IN Low Med High
6.1 Ground balance calibration:
6.1. 1.Auto calibration:
⑩ ⑩
11
2.Assembly diagram
03 3.7 V
li-battery
17 Plastic screw
Max.
1.5m (50CMx50CMx1.2CM
aluminium board )
Detection depth
Audio( 75dB) and
Detectable indication
light indication
Ground balance/
Detection mode
discrimination
7.1KHz
Signal frequency
3.7V(lithium battery)
Power supply
rechargeable battery
charge voltage
Low battery indication
Product net weight
Product s ize 30x30x123.5 cm
figure 4
There are two calibration methods.
The auto calibration is just to turn the unit on.
When Calibrate by this method, Fan-shaped
stripe , calibration , and star shape will
display on LCD.
≥
√
DC 5V
√
1.77 kg
