HES 5200 Series Installation Instructions And Use

Cutout Templates for Frame Preparation
NOTE: The 5200 has an in-frame horizontal adjustment range of about 1/4" (6.4 mm) to allow adjustment of the electric strike in the frame
opening to accomodate for the horizontal position of the latchbolt after the strike has been installed. The "Adjusting the Horizontal"
section provides steps for this adjustment.
1 -1/4"
[31.8]
1 -1/4"
[31.8]
4 -7/8"
[124]
3 -3/8"
4 -1/8"
[85.7]
4 -7/8"
[104.8]
[124]
13/16"
[20.6]
3/32"
Inches
[mm]
[2.3]
501 Faceplate Option
(4-7/8" x 1-1/4"), Square Corners and Flat Faceplate
Used with cylindrical locksets in ANSI metal jambs
1 -7/16" 1 -7/16"
[36.5] [36.6]
R 3/16"
[4.1]
3-3/8"
7-15/16"
[85.7]
7 -15/16" 7 -7/16"
[201.6]
[201.6] [189]
13/16"
[20.6]
3/32"
[2.3]
Inches
[mm]
502 Faceplate Option
(7-5/16" x 1-7/16"), Radius Corners and Flat Faceplate
Used with cylindrical locksets or spring latches in aluminum frames
1 -3/8"
R 1/8"
[34.9]
[4]
1 -3/8"
[34.9]
10"
[254]
10" 8 -1/2"
1 -7/16"
1 -3/8"
[254] [215.6]
[36.6]
[34.9]
3 -3/8"
[85.7]
13/16"
[20.6]
3/32"
[2.3] Inches
[mm]
504 Faceplate Option
(10" x 1-3/8"), Radius Corners and Flat Faceplate
Used with cylindrical locksets; four-point mounting for wood installations
3059006.002 rev C
© 2015, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company.
1 -1/4"
R 1/8"
[31.8]
4 -7/8"
[124]
3 -3/8"
4 -7/8"
[85.7]
1 -7/16"
[124]
[36.6]
13/16"
[20.6]
3/32"
[2.3]
Inches
[mm]
501A Faceplate Option
(4-7/8" x 1-1/4"), Radius Corners and Flat Faceplate
Used with cylindrical locksets or spring latches in aluminum frames
1 -1/4"
[36.5]
R 3/16"
[4.1]
3 -3/8"
1 -7/16"
[85.7]
6 -7/8"
[36.6]
6 -7/8"
6 -1/8"
[174.3]
[174.3]
[155.6]
13/16"
[20.6]
3/32"
[2.3]
Inches
[mm]
503 Faceplate Option
(6-7/8" x 1-1/4"), Radius Corners and Flat Faceplate
Used with cylindrical locksets or spring latches in aluminum frames
8 -1/2"
[215.6]
4
1 -1/4"

Product Components

[31.8]
[3]
4 -1/8"
1 -7/16"
[104.8]
[36.6]
1 -1/4"
[31.8]
1 -7/16"
[36.6]

Electrical Specifications

Electrical Ratings for Solenoid
Continuous Duty
Resistance in Ohms
Amps
Solenoids are rated at +/- 10% indicated value.
*10% maximum duty cycle (2 minutes maximum on time)
Indoor use only
Minimum Wire Gauge Requirements
(Based on Round Trip)
200 feet or less
200 – 300 feet
300 – 400 feet
ASSA ABLOY, the global leader
in door opening solutions

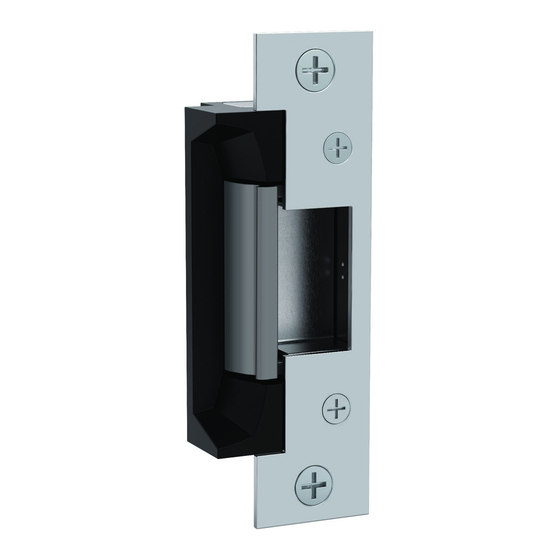

5200 Series Electric Strike
Installation Instructions
5200 Electric Strike Body Trim Enhancer
1 2
1
Diagram 1: Product Components
12 VDC 24 VDC Intermittent Duty*
50 200 Resistance in Ohms
Amps
.12
.24
Solenoid Voltage
12 VDC 24 VDC
18 gauge
20 gauge
16 gauge
18 gauge
14 gauge
16 gauge
HES, Inc.
Phoenix, AZ
800-626-7590
www.hesinnovations.com
1
12-Volt and 24-Volt Pigtails
