M
D
H
G
C
D
H
G
D
B

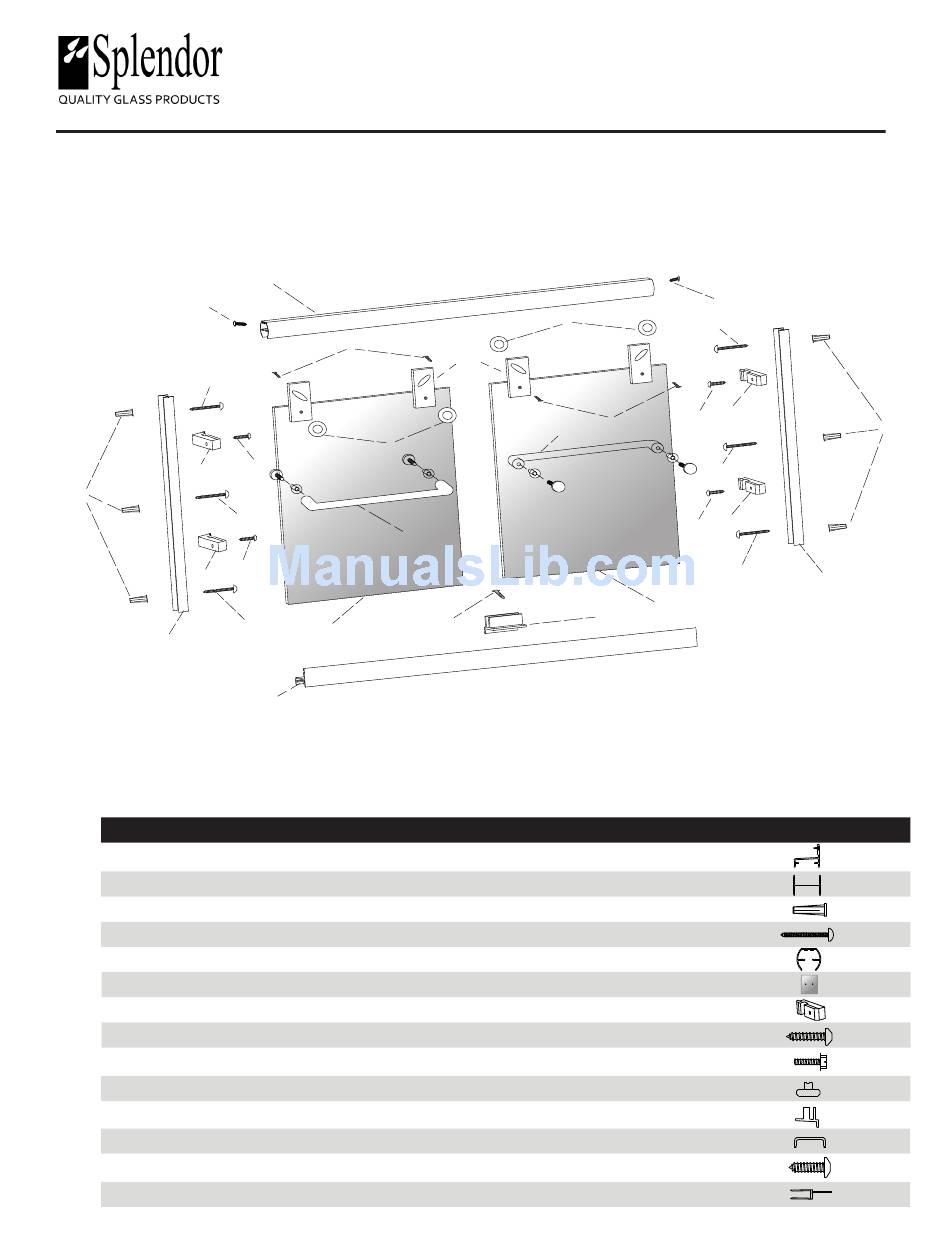

Parts
ITEM
PART #
A
882
B
884
C
113
D
110
E
880
F
G
185
H
115
I
116
J
132
K
153
L
ETB
M
119
N
886
Installation Instructions
E
I
J
L
M
F
A
QTY
DESCRIPTION
1
Tub Track with T- Fin
2
Wall Jamb
6
Plastic Wall Anchor
6
#8 x 1 1/2" Pan Head Screw
1
Tub Header
2
Glass Panels
4
Vinyl Jamb Bumpers
4
#6 x 3/4" Pan Head Screws
4
#6 x 32-3/8" Hex Head Screws
4
Roller Bearing
1
Bottom Guide
2
Towel Bar
3
#6 X 1/2" Pan Head Screws
4
Hanger Bracket - Attached
Elite Series 5200 / 6200
J
N (4)
I
L
K
Page 1
M
D
G
H
D
G
H
D
B
F
C
REV-08/2017
Advertisement
Table of Contents
Summary of Contents for Splendor 5200
-
Page 1: Installation Instructions
Installation Instructions Elite Series 5200 / 6200 N (4) Parts ITEM PART # DESCRIPTION Tub Track with T- Fin Wall Jamb Plastic Wall Anchor #8 x 1 1/2” Pan Head Screw Tub Header Glass Panels Vinyl Jamb Bumpers #6 x 3/4” Pan Head Screws #6 x 32-3/8”... - Page 2 Tools Drill Hacksaw Philips Screwdriver Level #32 and 3/16” Drill Bit Safety Glasses Tape Measure Silicone Mallet Masking Tape Installation Notes Unpack your unit carefully. Lay out and identify all parts using the instruction sheets as a reference. Before discarding the carton, check for any small hardware bags. If any parts are damaged or missing, refer to the description noted in the instructions when contacting your dealer for replacements.
- Page 3 SETTING the TUB TRACK with VINYL Step 1a. Measure from wall-to-wall, 1/2” above the sill and cut the tub track (A) 1/16” short of these dimensions. Measure Step 1b. Position the tub track in the center of the tub rim with the tall leg facing the exterior.
- Page 4 SECURING the TUB TRACK Step 3a. Before replacing tub track (A), force a slight downward bow in the middle of extrusion. This will ensure that the track ts tight to the tub. Run two beads of silicone inside the penciled mark on the tub rim. Place the stay clean sill in the exact position you marked in step 2a and set it rmly in the silicone.
- Page 5 INSTALL the GLASS PANELS Step 5a. To install panels, attach the four nylon roller bearings (J) to the door panels using four #6-32 X 3/8” hex head screws (I) centered in the slots in the top ns. Patterned glass is always Rough Exterior installed with the rough surface of the glass to the exterior of the unit.
- Page 6 INSTALL the GLASS PANELS CONTINUED Step 5f. If the door panels are not parallel to their respective wall jambs, remove and adjust rollers up or down in their slots to compensate for out of plumb walls. Adjust roller in slot Interior CENTER GUIDE Step 6a.
