Aruba Networks AP-220-MNT-C1 Installation Manual

AP-220-MNT-C1
Installation Guide
The AP-220-MNT-C1 ceiling rail adapter kit includes the following items:
9/16" Ceiling Rail Adapter

 15/16" Ceiling Rail Adapter
For complete information about selecting the location and setting up the AP, see the Access Point
Installation Guide.

Installation

1. Pull the necessary cables through a prepared hole in the ceiling tile near where the AP will be placed.
2. Place the adapter against the back of the AP with the adapter at an angle of approximately 30 degrees to
the tabs (see
3. Twist the adapter clockwise until it snaps into place in the tabs (see

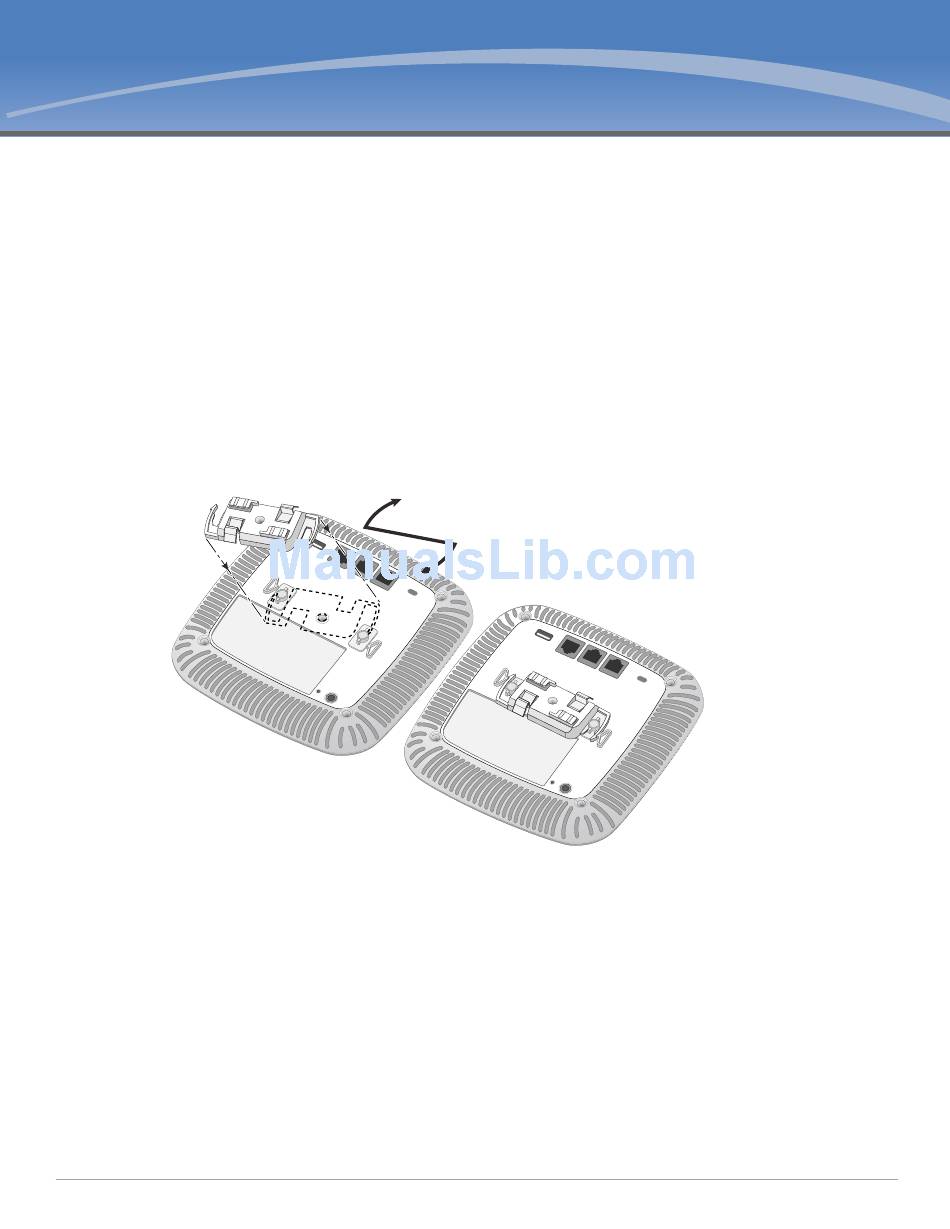

Figure 1 Attaching the Ceiling Rail Adapter

4. If necessary, connect the console cable to the console port on the back of the AP.
5. Hold the AP next to the ceiling tile rail with the ceiling tile rail mounting slots at approximately a 30-
degree angle to the ceiling tile rail (see
6. Pushing toward the ceiling tile, rotate the AP clockwise until the device clicks into place on the ceiling
tile rail.
0511562-01 | February 2014
Figure 1).
Figure
Figure
2). Make sure that any cable slack is above the ceiling tile.
1).
1
