Content of standard package
1 WR10 Wireless Autopilot Controller
2 AAA batteries
1 BT-1 Bluetooth Base Station
1 Micro-C drop cable 1.8 m (6 ft)
3 Lanyard straps (1 for each brand) + 1 carabiner clip
Accessories
Wrist strap (000-12360-001)
Kit for pole mounting:
2 pcs. M4 30 mm stainless steel Phillips head mounting screws
(081-0008-11)
x 2
x 2
2 pcs. No. 6x 1.5 Phillips head bolts (083-0011-15)
Dash mount gasket (074-1253-000)
Mount Pole Cone (072-2970-000)
Pole mount locking nut (037-0105-00)
Micro-C drop cable 1,8 m (6 ft) (003-7872-00)
Micro-C T-Joiner (037-0491-01)
*988-10831-003*

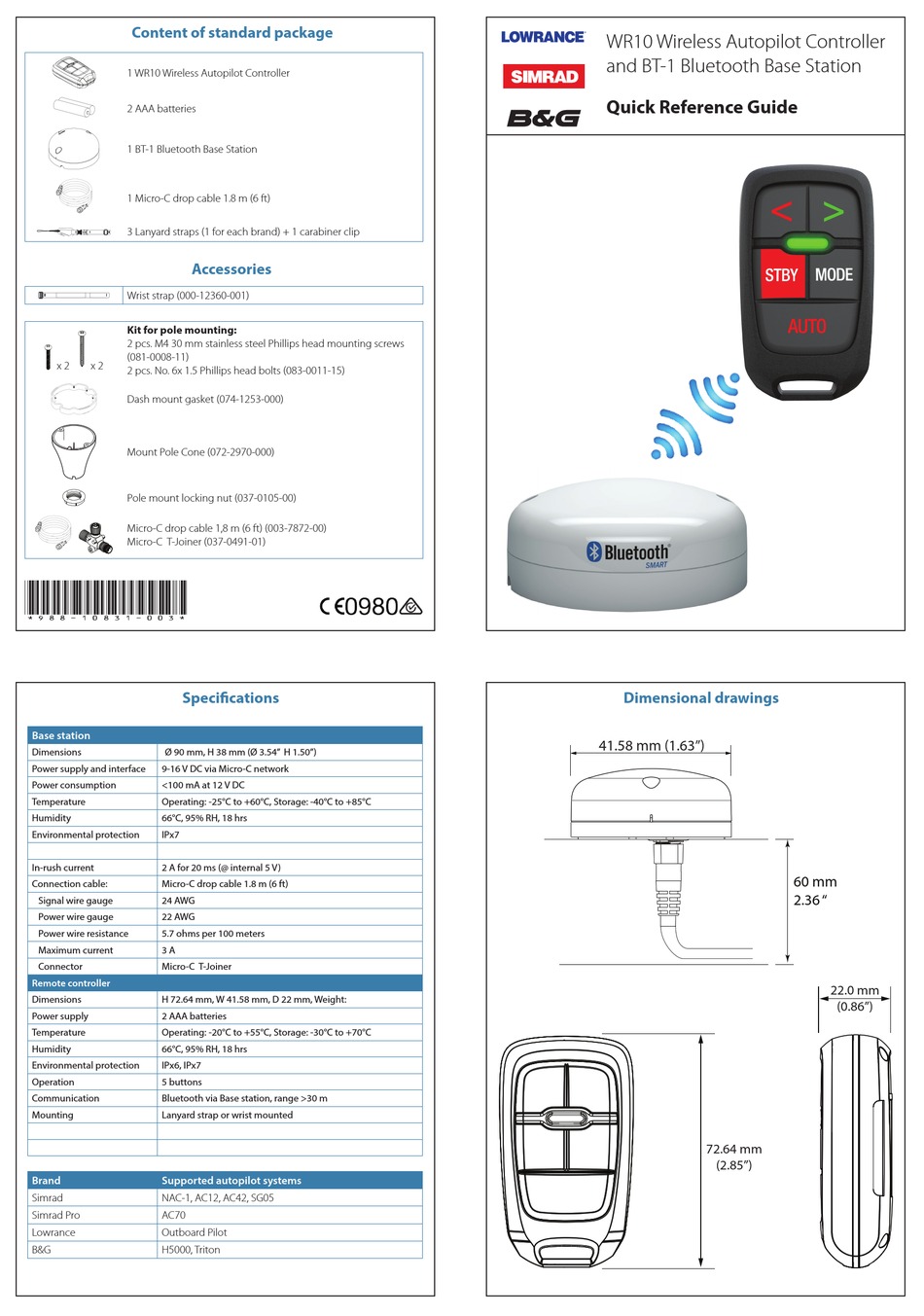

Specifications
Base station
Dimensions
Ø 90 mm, H 38 mm (Ø 3.54" H 1.50")
Power supply and interface
9-16 V DC via Micro-C network
Power consumption
<100 mA at 12 V DC
Temperature
Operating: -25°C to +60°C, Storage: -40°C to +85°C
Humidity
66°C, 95% RH, 18 hrs
Environmental protection
IPx7
In-rush current
2 A for 20 ms (@ internal 5 V)
Connection cable:
Micro-C drop cable 1.8 m (6 ft)
Signal wire gauge
24 AWG
Power wire gauge
22 AWG
Power wire resistance
5.7 ohms per 100 meters
Maximum current
3 A
Connector
Micro-C T-Joiner
Remote controller
Dimensions
H 72.64 mm, W 41.58 mm, D 22 mm, Weight:
Power supply
2 AAA batteries
Temperature
Operating: -20°C to +55°C, Storage: -30°C to +70°C
Humidity
66°C, 95% RH, 18 hrs
Environmental protection
IPx6, IPx7
Operation
5 buttons
Communication
Bluetooth via Base station, range >30 m
Mounting
Lanyard strap or wrist mounted
Brand
Supported autopilot systems
Simrad
NAC-1, AC12, AC42, SG05
Simrad Pro
AC70
Lowrance
Outboard Pilot
B&G
H5000, Triton

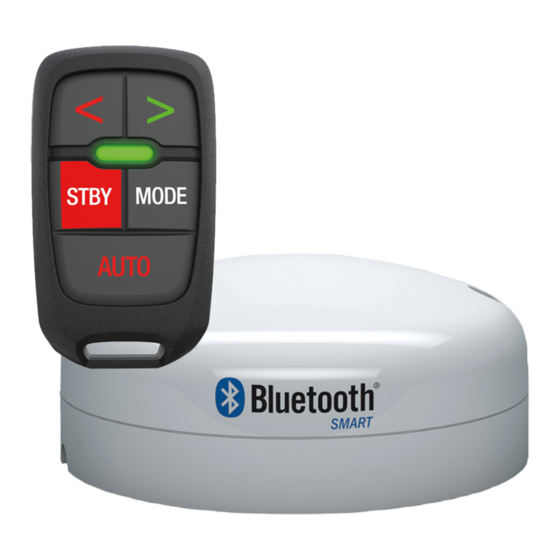

WR10 Wireless Autopilot Controller
and BT-1 Bluetooth Base Station
Quick Reference Guide
Dimensional drawings
41.58 mm (1.63")
72.64 mm
(2.85")
60 mm
2.36 "
22.0 mm
(0.86")
