Summary of Contents for Bioinsec Cadenacio

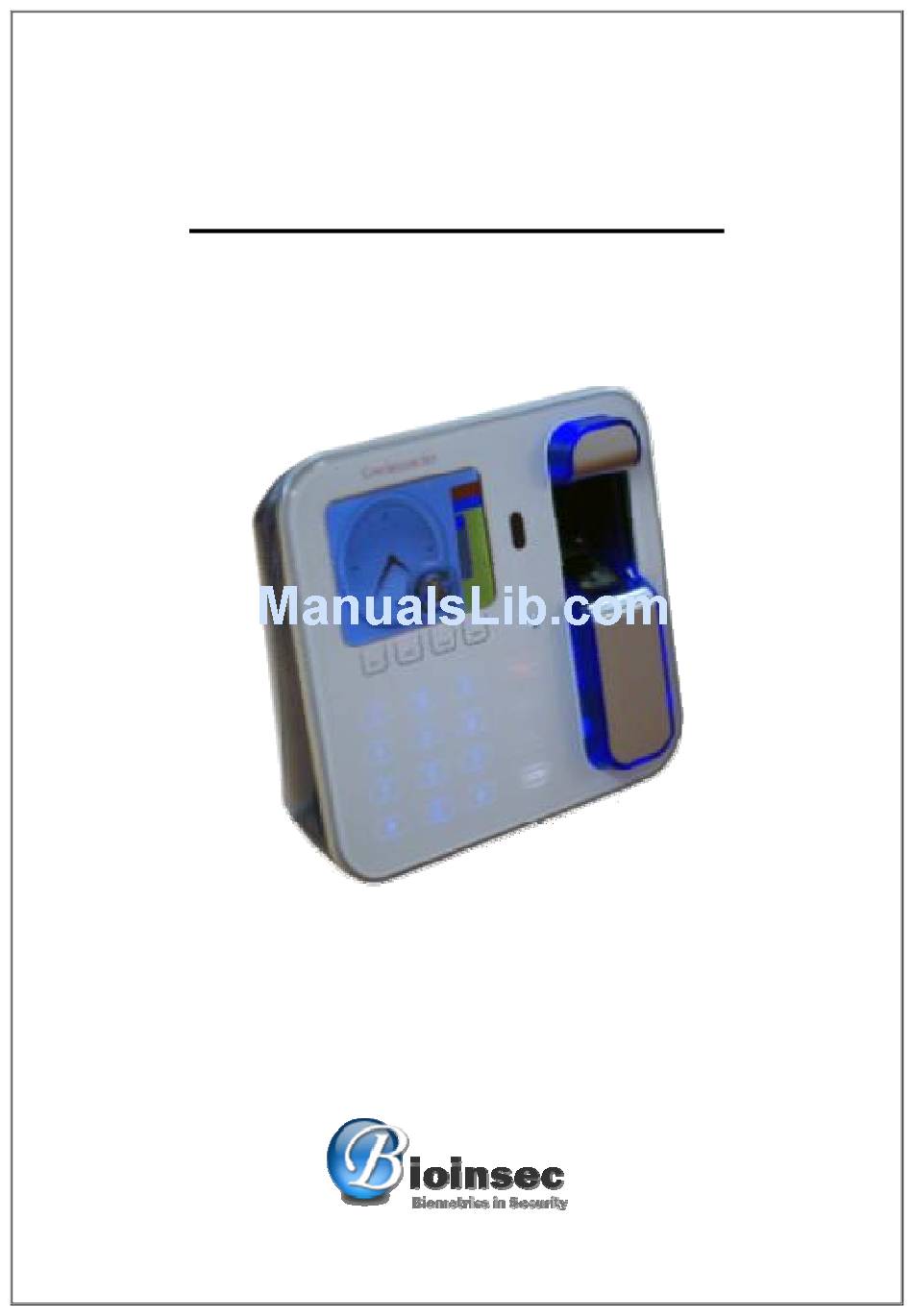

- Page 1 Cadenacio Reference M anual Ver 2.0 -Cadenacio FP/MF, BKS-5000 FP/MF -Catenaccio Lite -Cadenacio Lite -BKS-5100...
-
Page 2: Table Of Contents
CADENACIO User Manual Contents Before You Begin ........................5 Safety Precautions / Emergency Measures ................ 5 Proper Way to Input Fingerprint ..................7 Product Introduction ......................7 Product Diagram ....................... 9 Icon Information ......................10 Product Features ......................11 Terminal Menu ........................ 14 User Management(Registration/Edit/Delete) Menu .............. - Page 3 CADENACIO User Manual Camera Operation Mode Setup ..................33 Viewing with Camera ...................... 34 Display ..........................35 Lighting Hours ........................ 35 Contrast ......................... 36 Brightness ........................36 Black / White Mode (Daylight Mode) ................37 Set Time ......................... 37 Set Date ......................... 38 Language ........................
- Page 4 CADENACIO User Manual FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 5: Before You Begin
CADENACIO User Manual Revision History Version Date Description Ver 1.0.0 April 26, 2010 Release Cadenacio 1. Before You Begin Safety Precautions / Emergency Measures Do not turn on the power when water or foreign substances went into the power supply. - Page 6 When the fingerprint image is not clear, please adjust the exposure value of the fingerprint sensor. When Cadenacio does not function properly Try again after initializing Cadenacio by pressing the Reset switch. If the problem is not solved with the method above, please make an inquiry to our customer service center. www.bioinsec.com...
-
Page 7: Proper Way To Input Fingerprint
A fingerprint is characterized by inalterability and uniqueness. It is the area most widely used in biometrics due to its inexpensive price. CADENACIO is a product using BIOINSEC’s world renowned optical fingerprint sensor. It boasts excellent performance due to its durability and stability. - Page 8 CADENACIO User Manual CADENACIO has already been recognized for its reliability by being supplied to many places such as government offices, large corporations, and academic institutes. CADENACIO has improved its performance by implementing camera function with a camera directly built into the mainboard. Through this, it has added video storage function upon recognition success or failure, and remote visitor image identification function.
-
Page 9: Product Diagram
CADENACIO User Manual Product Diagram Proximity Built-in Camera Sensor Speaker Voice Guide Fingerprint Keypad -Up/Down Arrow Call Button Menu Clear Button Enter Reset Hole Microphon Keypad Mifare(13.56KHz) www.bioinsec.com... -
Page 10: Icon Information
CADENACIO User Manual 5. Icon Information Normal Network icon appearing when communication with the server is normal Icon showing when communication with the server is cut off DHCP mode setting in progress No Camera Icon Camera Off Camera Auto/On SD Memory Card recognized... -
Page 11: Product Features
CADENACIO User Manual Force Open Door Locked by Door Schedule Open by Door Schedule Lock Down (Forced lock locking device) Lock Open (Forced open locking device) 6. Product Features High Performance CPU Capable of high speed authentication by using 32Bit 400Mhz ARM CPU ... - Page 12 CADENACIO User Manual Links with Speed Gate You can set the door open time in units of 1/10 second. When you set the door open time in minimum units of 0.5 seconds, it can be linked up to Speed Gate.
- Page 13 BIOINSEC’s fingerprint recognition system can be used independently or linked up with a server via TCP/IP communication. Furthermore, it can be directly connected to the independent program using SDK provided as a bundle. CADENACIO can c onduct time & attendance management with its own RTC and Log management fu nction.
-
Page 14: Terminal Menu
CADENACIO User Manual Terminal Menu ① How to Use Menu < Menu Setting Button > 4 buttons below the LCD This is the up and down arrow keys used for moving the cursor up and down or left and right in all menus. - Page 15 CADENACIO User Manual This is used to complete or save a task. It is hereinafter referred to as Button.” “Enter www.bioinsec.com...
- Page 16 CADENACIO User Manual ② Entire Menu Tree The terminal is set as example menu tree when it left the factory. If user changes the value set as factory next tree menu process will be changed with your purpose. User Access Control...
- Page 17 CADENACIO User Manual 2. Access Control www.bioinsec.com...
- Page 18 CADENACIO User Manual 3. Network 4. Setup www.bioinsec.com...
-
Page 19: User Management(Registration/Edit/Delete) Menu
CADENACIO User Manual 5. System * If user changes the value set as factory, next tree menu process will be changed with your purpose. 2. User Management(Registration/Edit/Delete) Menu 1. Administrator Password Registration In order to go into the menu, administrator password must be registered. -
Page 20: Enroll User
CADENACIO User Manual III. Button → Finish → Enter Password → → → → (Delete Existing Password) → Input New Password → (Switchover to new line) → Password Check Reinput → → Completion : Please change the administrator password. If you wish to go into the desired menu fast, once you press the number relevant to the menu, it is immediately applied. -
Page 21: ② Card Registration
CADENACIO User Manual → Enter Password → → → → Enter User ID (Number) → → Check FP → → Register FP 1 (Register the same finger twice) → Register FP 2 (Register the same finger twice) → → Completion When changing the access mode, once you press the relevant number, you can check or uncheck it. -
Page 22: ③ Password Registration
CADENACIO User Manual ③ Password Registration Button → Enter Password(Default Value :1111) → Button User → Enroll User → Enter User ID (Number) → Button PIN Check (If you press Repeat Check/Uncheck) → Button → Enter New Password → Button(Switchover to line) →... -
Page 23: Edit User
CADENACIO User Manual What is the difference between ‘Card + Fingerprint’? When selecting ‘ Card + FP’ in access mode, both the card and the fingerprint must match in order to authorize. 3. Edit User In User Change, it is impossible to change the access mode. If you want to change the access mode, reregister after deleting a user. -
Page 24: Delete User
CADENACIO User Manual 4. Delete User Button → Enter Password(Default Value:1111) → Button User → Delete User → Enter User ID (Number) III. Button → Finish → Enter Password → → → → Input User ID (Number) → → Finish... -
Page 25: Attendance Management Setup
CADENACIO User Manual Button Access Control → Operation Mode → Mode Select → Access Control Mode III. Button → Finish → Enter Password → → → → → → → Finish 2. Attendance Management Setup Attendance Management can only be used when Operation Mode is ‘1. Access Control.’... -
Page 26: Reporting Time Auto Setup
CADENACIO User Manual Button Access Control → Operation Mode → Time & Attend Setup → Key → Select ( III. Button → Finish → Enter Password → → → → → → )→ → Finish ② Item Select time & attendance code and name. -
Page 27: Meals Mode
CADENACIO User Manual Sign in is F1, and Sign out F2 code is fixed. After setup, sign in/sign out code is ※ automatically changed by time slot. (Sharp) button has the same function as Back Space (←) which deletes data. -
Page 28: Prevention Of Unnecessary Events In Attendance / Meal Counting Mode
CADENACIO User Manual Button Access Control → Operation Mode → Meals Mode → Breakfast/Lunch/Dinner/Late Supper/Snack Time Slot & No. of Menus Setup → → Select Overlapping Prohibited ( III. Button → Finish It is authorized in only the set time. Time besides that is not authorized by the terminal. -
Page 29: Access Door Setup
CADENACIO User Manual → Enter Password → → → → → → → → Access Door Setup 1. Use of I/O MAN Select only when I/O MAN is used. Button → Enter Password(Default Value :1111) → Button Access Control →... -
Page 30: Network
CADENACIO User Manual Access Control → Reader → Relay On Time → Input ‘5’ III. Button → Finish → Enter Password → → → → → Input ‘5’ → → You can control the door opening time from 0.5 ~ 25.5 seconds, and the entered 5 appears as 0.5 seconds. - Page 31 CADENACIO User Manual ① Terminal IP Setup Button → Enter Password(Default Value:1111) → Button Network → Network Mode → Input TCP/IP III. Button → Finish Setting IP Address → Yes → → Button → Finish <Normal Input Checking Procedure> IP Address Setup →...
-
Page 32: Rs485 Network Connection
CADENACIO User Manual ② Server Setup Button → Enter Password(Default Value :1111) → Button Network → Network Mode → Select TCP/IP III. Server Setup → Input Server Computer IP Address Button → Finish → Enter Password → → → →... -
Page 33: Camera Setup
CADENACIO User Manual Button Network → Network Mode → Serial III. Button → Finish Serial Speed → Set Same as Computer Program Setup Speed → → Finish Serial Port → Port 0(RS-485) → → Finish → Enter Password → →... -
Page 34: Viewing With Camera
CADENACIO User Manual 3. Off : Camera not used Button → Enter Password(Default Value: 1111) → Button Setup → Camera → Camera Mode → Select Automatic (or III. Button → Finish Camera Channel → 0 Channel → → Finish → Enter Password →... -
Page 35: Display
CADENACIO User Manual → Enter Password → → → → → → Finish ※ Screen is normal if it is showing the screen in the direction of 90 degrees to the right. : If an image does not appear on the screen, the camera is not properly working. -
Page 36: Contrast
CADENACIO User Manual → Enter Password → → → → → Input Lighting Hours (0=Always On, 1~255 seconds) → → Finish LCD Always On Setup => Input ‘0’ as Lighting Hour 2. Contrast Button → Enter Password(Default Value: 1111) →... -
Page 37: Black / White Mode (Daylight Mode)
CADENACIO User Manual → Enter Password → → → → → Change → → Finish 4. Black / White Mode (Daylight Mode) Due to the characteristic of color LCD, it cannot be viewed well under daylight. In this case, if you select black/white mode, the main screen turns to black &... -
Page 38: Set Date
CADENACIO User Manual Button Setup → Monitor → Set Time → Select 12 Hours (or Hours) III. Button → Finish → Enter Password → → Select → → → ( → → Finish 6. Set Date This is the menu for setting the date format on the screen. -
Page 39: Language
CADENACIO User Manual → Enter Password → → Select → → → ( → → Finish 7. Language For language, it only supports English and Korean. If the language changes, voice also automatically changes. Button → Enter Password(Default Value: 1111) →... -
Page 40: Sd Memory Function
CADENACIO User Manual Firmware Icon Ment User 1. SD Memory Function 1. Auto log data backup function(in text format) 2. Store Camera Capture Image(Up to 10,000 images) 3. User Data Backup and Recovery 4. Terminal Setup Information Backup and Recovery 5. -
Page 41: Export To Sd Memory
CADENACIO User Manual 4. User Files : User data saved in terminal Setup Files : Terminal setting value Button → Enter Password(Default Value: 1111) → Button System → Import from SD Memory → ( Import Resources (Voices, Icons) / Customer Value /... -
Page 42: How To Update Firmware
CADENACIO User Manual Button System → Export to SD Memory → ( User Files / Setup Files) III. Button → Finish → Enter Password → → → → ( : User Files / Setup Files) → → Finish 5. How to Update Firmware Firmware update is used only when there are some problems in operating the terminal or when there is an upgraded version. -
Page 43: Q&A
CADENACIO User Manual Init Event : Deletes only long event data Init Setup : Resets only terminal setting to default values. Init Factory : Deletes all the user, log, and setup values, and resets to default values. Button → Enter Password(Default Value: 1111) →... -
Page 44: I Cannot View The Lcd From Outdoors
CADENACIO User Manual The LCD screen keeps turning off and giving out a ‘beep beep’ sound. 1. I cannot view the LCD from outdoors. Color LCD is not very visible under daylight conditions. It is just as a cellphone screen not visible outdoors. -
Page 45: I Want To Know The Card Number
CADENACIO User Manual → Enter Password → → → → → → → → Finish 3. I want to know the Card Number. When you want to check the card number registered in the terminal, you can easily view it if you use View Card Number in the menu. -
Page 46: The Lcd Screen Keeps Turning Off And Giving Out A 'Beep Beep' Sound
CADENACIO User Manual terminal, this may occur. Please change the fingerprint sensor exposure value in the menu to ‘5.’ Button → Enter Password(Default Value: 1111) → Button Access Control → Readers Setup → FP Reader → Exposure → Set to ‘5’... - Page 47 CADENACIO User Manual → Enter Password → → → → → Enter ‘0’ → → Finish www.bioinsec.com...
- Page 48 CADENACIO User Manual GLOSSARY □ Administrator The administrator has the authority to modify or set all setup values of the terminal, and register or delete new users. The first ID of the administrator is the number ‘0,’ and the first password of the terminal is ‘1111.’...
- Page 49 CADENACIO User Manual When connecting additional I/O to Cadenacio, I/O MAN is connected. It is safe due to encrypted communication with the terminal, and it can be interlinked with additional I/O such as locks and fire sensors. Link up with Key Phone (optional) □...
- Page 50 CADENACIO User Manual RODUCT PECIFICATION 32bit Micro processor, 400MHz Memory NAND Flash 128Mbyte, 64Mbyte RAM Backup Memory(optional) Mini SD Memory 1Gbyte 2.8” color LCD Sensor Optic, 500 DPI NTSC Camera(optional) Built-in Focal length : 3.7mm Iris : fixed Angle Of view : 92˚(D)
