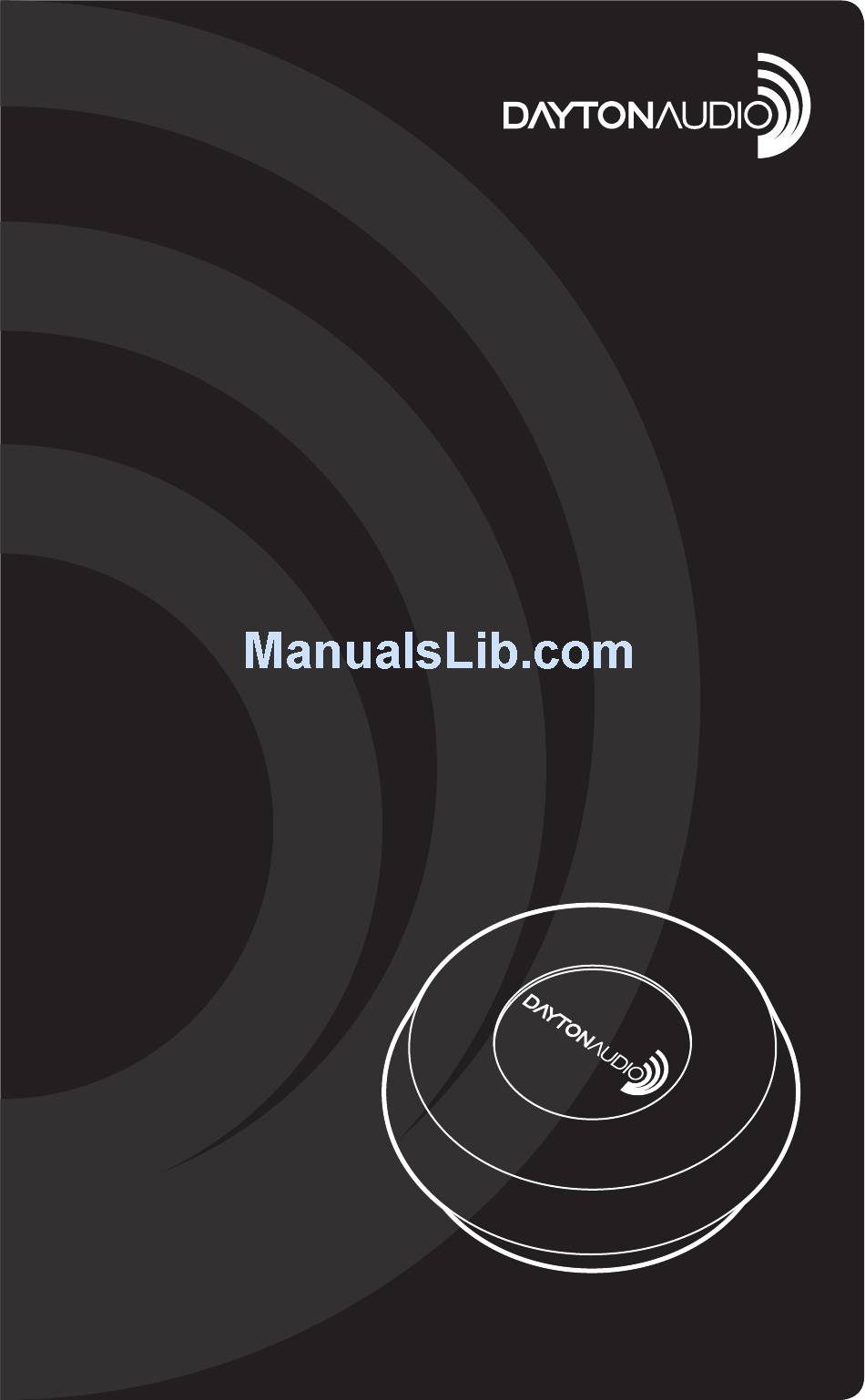

- Page 1 SOUND EXCITER TRANSDUCER Model: HDN-8 User Manual...
- Page 2 firmly coupled to the entire structure. If installing the HDN-8 into a wall, make sure to install its threaded point directly into a stud, or into a suitable panel bonded to the drywall; do not install its threaded point directly into drywall.
- Page 3 HDN-8, and the black wire to the unmarked terminal on the HDN-8. The red (+) ter- minal on the HDN-8 should correspond to the red (+) terminal on the amplifier, and the unmarked terminal should correspond to the (-) terminal.
- Page 4 Specifi cations Model number HDN-8 Description Sealed Audio Transducer Frequency Response 40-15,000 Hz (typical) Impedance 8 Ohms Power Handling (RMS/Peak) 50W / 100W SPL 1W/1m Varies by application Dimensions HxWxD 4" x 1.75" Color Black (rubberized) Weight 2.2 lb / 1.0 kg 705 Pleasant Valley Dr.
- Page 5 Existing Construction The HDN-8 is also easy to retrofit into an existing space. Install the HDN-8 into a 5" by 10" rectangular piece of hardwood or plywood. Cut a 5" x 5" hole in the drywall below the location where the “hidden speaker” will be installed, and pull the speaker cable through the hole to attach to the transducer as prescribed.
