Summary of Contents for Audio Authority 1807

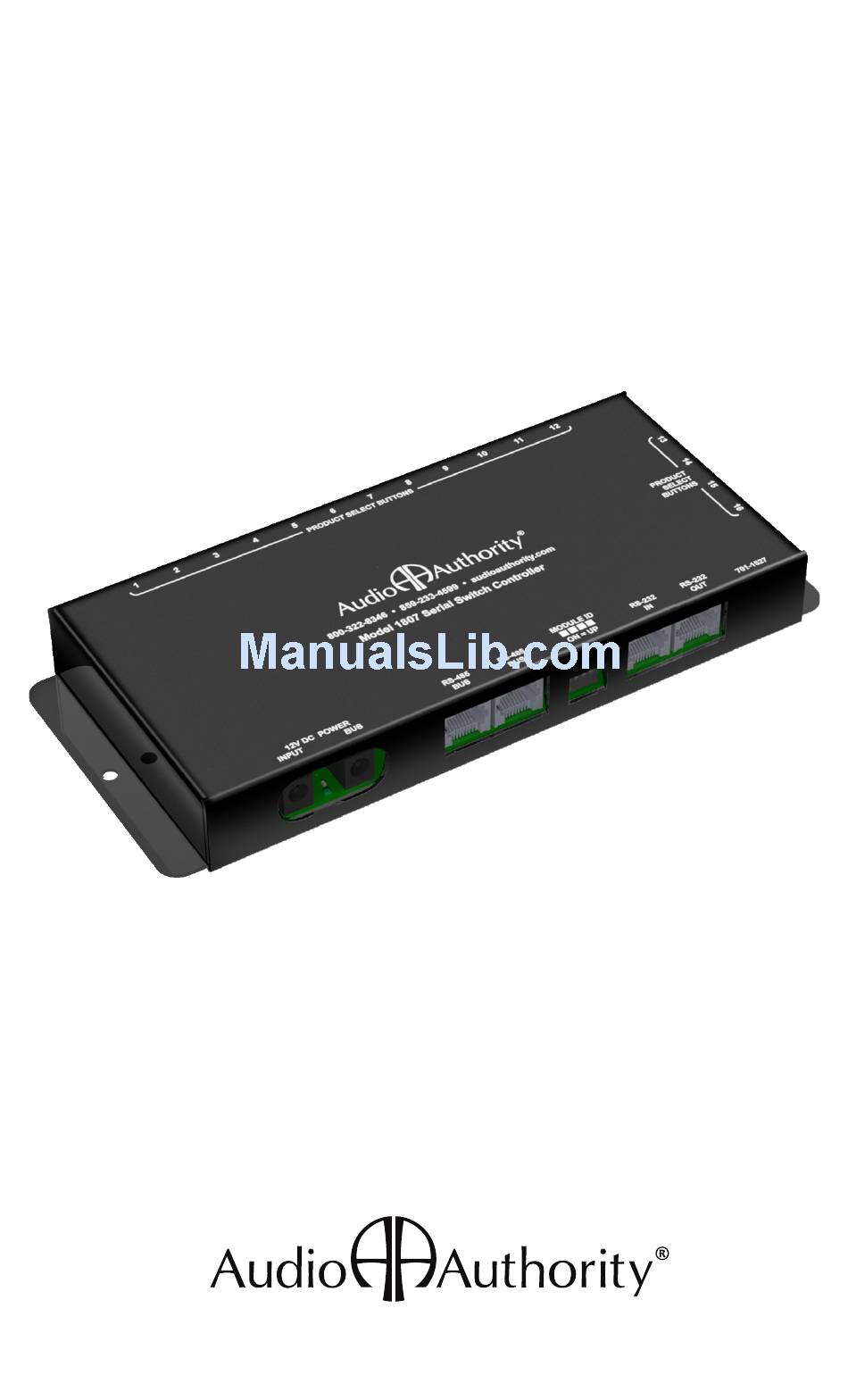

- Page 1 User Manual Model 1807 Serial Switch Controller...
- Page 2 INPUT * Note: RS-232 IN and RS-232 OUT may be incorrectly marked on the first production run of the 1807. This document has been revised to reflect the correct port markings. Package Contents Before installing this product, please check the packaging and make certain the following items are contained in the shipping carton: •...
- Page 3 3, TX on pin 6, and GND on pin 7. Special RJ-45 cables are available from Audio Authority; RJ-45 to 3.5mm, PN: 801-373 and RJ-45 to DB-9 cable, PN: 801-252. RS-485 Communication Bus The RS-485 communication pathway links multiple 1807 modules (see Module ID below). Module ID Switches The Module ID switches 1-4 are off by default (UNIT 1).
- Page 4 The Power Bus port may be connected to the 1704, or other device sharing the power adapter. Installation • Attach the player and the 1807 modules to a flat surface with the screws provided. • Connect push-buttons. Push-buttons should be four-wire momentary switches, and can be illuminated (2-5 volt LED).
