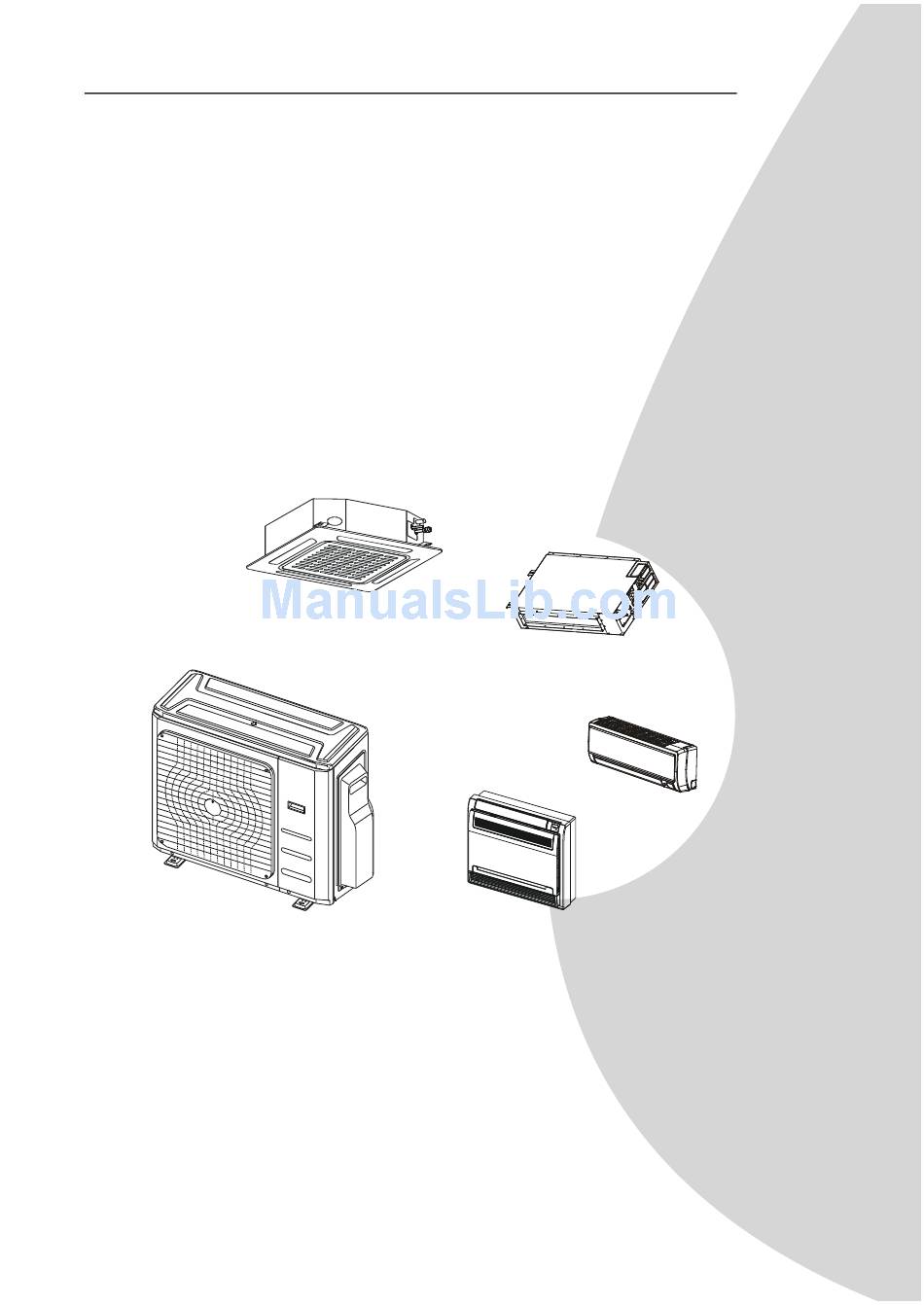

INVERTER ONE-TWO/ONE-THREE/ONE-FOUR/ONE-FIVE
Owner's Manual
DF18MZ2
DF30MZ3
DF36MZ4
DF48MZ5
DiamondAir
DiamondAir
IMPORTANT NOTE:
•
Read this manual carefully before
installing or operating your new air
conditioning unit. Make sure to save
this manual for future reference.
This manual only describes the outdoor
•
unit of user's. When using the indoor unit,
refer to the user's manual of indoor unit.
SPLIT-TYPE AIR CONDITIONER
Advertisement
Troubleshooting
Related Manuals for Diamond Air DF18MZ2
Summary of Contents for Diamond Air DF18MZ2
- Page 1 INVERTER ONE-TWO/ONE-THREE/ONE-FOUR/ONE-FIVE SPLIT-TYPE AIR CONDITIONER Owner’s Manual DF18MZ2 DF30MZ3 DF36MZ4 DF48MZ5 DiamondAir DiamondAir IMPORTANT NOTE: • Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. This manual only describes the outdoor •...
- Page 2 Table of Contents Owner’s Manual Safety Precautions ............ SAFETY FIRST Unit Parts and Major Functions ......Manual Operation and Maintenance ....
- Page 3 Troubleshooting ......... a. Common Problems ......... b. Troubleshooting Tips ....... European Disposal Guidelines .............. Page 3...
-
Page 4: Safety Precautions
Safety Precautions Thank you for purchasing this air conditioner. This manual will provide you with information on how to operate, maintain, and troubleshoot your air conditioner. Following the instructions will ensure the proper function and extended lifespan of your unit. Please pay attention to the following signs: Failure to observe a warning may result in death. - Page 5 Unit Parts And Major Functions Unit Parts Duct / Ceiling type Wall-mounted type Fig. 2.1 Indoor unit 1. Panel frame 2. Rear air intake grille Fig. 2.2 3. Front panel Indoor unit 4. Air Purifying filter & Air filter(behind) 1. Air outlet 5.
- Page 6 Floor and standing type(console) Compact four-way cassette type Fig. 2.4 Indoor unit Fig. 2.3 1. Drain pump(drain water from indoor unit) Indoor unit 2. Drain hose 1. Air flow louver (at air outlet) 3. Air outlet 2. Air inlet(containing air filter) 4.
- Page 7 NOTE: For multi-split type air conditioners, one outdoor unit can be matched to different types of indoor units. All of the pictures in this manual are for demonstration purposes only. Your air conditioner may be slightly different, if similar in shape. The following pages introduce several kinds of indoor units that can be matched with the outdoor units.
- Page 8 The air conditioner turns to FAN ONLY Heating mode (for cooling and heating mode from COOL or HEAT (for cooling and models only) heating models only) mode. The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit When the indoor temperature reaches the set temperature setting, the compressor will stop during heating.
- Page 9 Manual Operations And Maintenance Operation mode selection Optimal operation While two or more indoor units are To achieve optimal performance, please note the simultaneously operating, make sure the modes following: do not conflict with each other. The heat mode • Adjust the direction of the air flow so that it is claims precedence over all other modes.
-
Page 10: Troubleshooting
Troubleshooting CAUTIONS If one of the following conditions occurs, switch off the power supply immediately and contact your dealer for further assistance. The operation light continues to flash rapidly after the unit has been restarted. • The remote control buttons do not work. •... -
Page 11: Troubleshooting Tips
Problem Possible Causes Dust is emitted from The unit may accumulate dust during extended periods of non-use, which either the indoor or will be emitted when the unit is turned on. This can be mitigated by covering outdoor unit the unit during long periods of inactivity. The unit may absorb odors from the environment (such as furniture, cooking, The unit emits a cigarettes, etc.) which will be emitted during operations. -
Page 12: European Disposal Guidelines
European Disposal Guidelines Users in European Countries may be required to properly dispose of this unit. This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. DO NOT dispose of this product as household waste or unsorted municipal waste. - Page 13 The design and specifications are subject to change without prior notice for product improvement.Consult with the sales agency or manufacturer for details. Page 13...
