Summary of Contents for GO4 Vega X1 Extreme

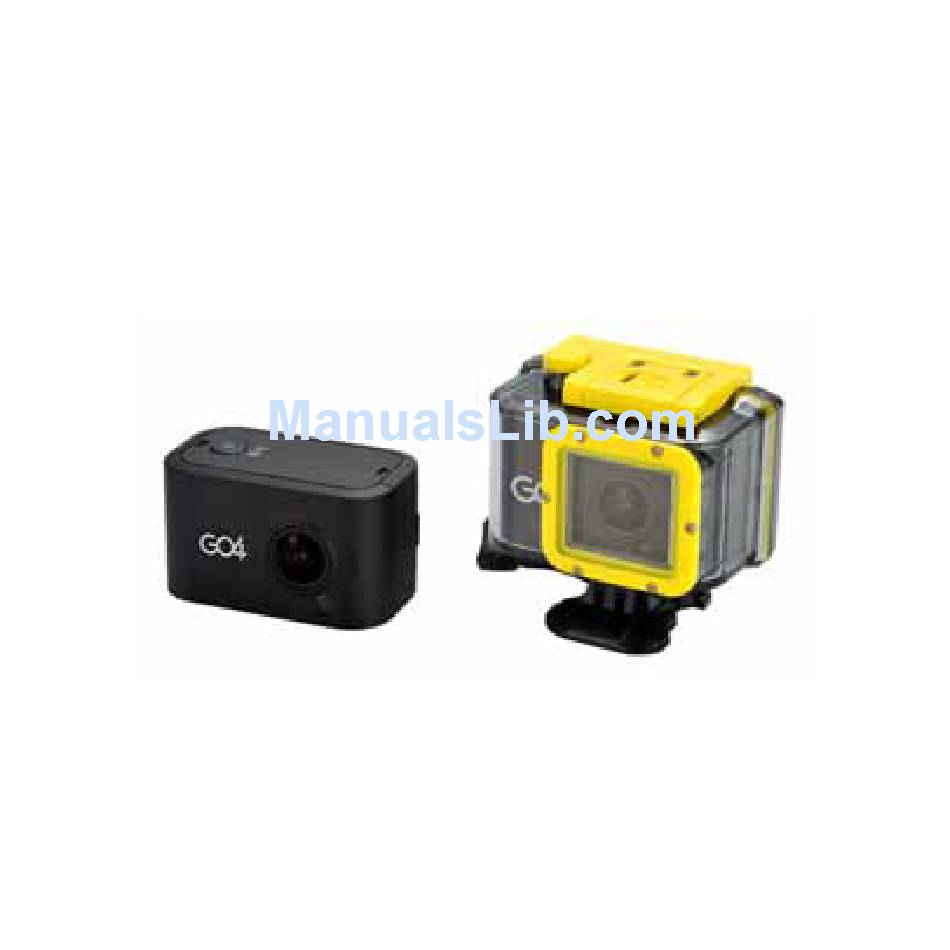

- Page 1 Vega X1 Extreme Operation Instruction Please read this manual carefully before you use this unit, and keep it well for further checking. GO4 Vega X1 user guide...
- Page 2 Part for the purpose of overhearing or recording the private conversations of others unless such use is authorized by all of the parties engaging in the conversation. GO4 Vega X1 user guide...
-
Page 3: Table Of Contents
Getting Started MicroSD Card Charging Button Definitions LED Definitions How to Record and Take a Photo About Record Quality File Playback Useful Functions Delete and Copy Files Video Setup System Setup What's in the Package? Specifications GO4 Vega X1 user guide... -
Page 4: Introduction
Current storage memory card (1 means internal memory; 2 means card) 8 Battery indicator N:00.00000° E：000.00000° 9 GPS symbol 30/11/2012 10:23:41 10 Date indicator( Day/month/year) 11 Time indicator (hour/min./sec.) 12 Car plate number 13 GPS coordinate GO4 Vega X1 user guide... -
Page 5: Getting Started
When fully insert the card, it will remind you with sound; Press the card and take the card out, this will release the lock, and card will be pop out. Please take out the Micro SD Card gently for the spring is very powerful. GO4 Vega X1 user guide... -
Page 6: Microsd Card
We recommend using 8GB card minimum. 16GB or 32GB card will be better for full HD recording. To ensure the card transfer speed, we highly recommend using a class 4 or higher card. Find out these icons GO4 Vega X1 user guide... -
Page 7: Charging
LED will off; It need about 2.5 hours to be fully charged if you use the attached USB charger; But if you charge via computer with the USB cable, it will take more time; GO4 Vega X1 user guide... -
Page 8: Button Definitions
Photo slide view: during photo play backing, press to make slide view. In playback Start playback. Pause playback. Resume normal playbacks in fast forward or fast backward. Confirm in menu settings Mute recording while recording, press OK button to turn off microphone. GO4 Vega X1 user guide... - Page 9 While in recording mode, no matter preview or recording mode, press [<</+/ to zoom in and [>>/-/ ] to zoom no zoom function for 1920*1280 and 1280*720@50 resolution. Photo zoom In photo mode, press [<</+/ ] to zoom in and [>>/-/ ] to zoom out. GO4 Vega X1 user guide...
-
Page 10: Led Definitions
Flashing green means it is searching for satellite signal. Green but no flash means satellite signal is ready. Yellow Battery is under charging now. If the yellow LED turns off, the battery is full now. GO4 Vega X1 user guide... -
Page 11: How To Record And Take A Photo
Press the power button, it will take a phone. *You can choose 0.9/2/3/3.5M definition. You can set it in the menu. After you set the definition, it will show on the screen. CAR DV 30/11/2012 1633 10:23:41 GO4 Vega X1 user guide... -
Page 12: About Record Quality
( 15 min/GB) ( 11 min/GB) ( 9min/GB) Photo quality Size Photo quality Photo resolution 900 photos/GB 3.5M 2560 x 1440 1000 photos/GB 2403 x 1296 1500 photos/GB 1920 x 1080 3500 photos/GB 0.9M 1280 x 720 GO4 Vega X1 user guide... -
Page 13: File Playback
Connect HDMI Cable to Mini HDMI port of your camera. Set up your TV or Display screen to the corresponding channel. Video File infor mation Container: MP4 Compression: MPEG-4 AVC (Advanced Video Codec) Audio Bitrate: 128kbps Audio Channels: 2 (stereo) Sample Rate: 48KHz GO4 Vega X1 user guide... - Page 14 Use your card reader and connect to your computer. If your card reader do not support microSD card, maybe you need a microSD-to-SD adapter. Folder Str ucture Removable Disk DCIM 100MEDIA “ Protected file” 101MEDIA MISC 102MEDIA ( Usually empty) 20121114-1432_0001 20121114-1432_0002 …etc GO4 Vega X1 user guide...
-
Page 15: Useful Functions
Share your video with location tag to YouTube, it is really a very interesting and amazing. Moive Recover y when the recorder is shut down unexpectly,the system can save the interrupted video when power on again. GO4 Vega X1 user guide... - Page 16 Create new folder and name it SYS on root of your card. In this SYS folder, create a new txt file, and name it ID.TXT. Type your car license no. in this txt file (max 15 character). GO4 Vega X1 user guide...
-
Page 17: Delete And Copy Files
When using the copy function, you need to wait a moment, and make sure your battery have enough power. GO4 Vega X1 user guide... -
Page 18: Video Setup
NTSC TV system. It is 848× 480 resolution at about 50fps, it 848× 480P50 works fine with PAL TV system. It is 320× 240 resolution at about 120fps, it 320× 240P120 works fine with NTSC TV system. GO4 Vega X1 user guide... - Page 19 /30/45MIN The camera will record until the storage is full and it will beep. RECORD LOOP It will show your choice automatic in according 1/5/10/15 of your card storage. /30/45MIN GO4 Vega X1 user guide...
- Page 20 If you like take photo of yourself, this setting is just for you. Default is OFF. SELF CAPTURE Set the timer you need and enjoy the moment. 5/10/20/30/60S INTERVAL The device will take a photo between the set CAPTURE 1/2/5/10/30/60S intervals. GO4 Vega X1 user guide...
- Page 21 AE BIAS EV-2.0-----+2.0 preview mode. Contrast mean: dark becomes darker, and STANDARD, HARD, white becomes whiter. It can be useful if you CONTRAST AND SOFT need to see the car plate number in front of you. GO4 Vega X1 user guide...
-
Page 22: System Setup
When you connect this device to car power via a car adaptor, it will power on the device and CAR MODE OFF/ON start recording. After you turn off your engine, the device will power off in 30 seconds. GO4 Vega X1 user guide... - Page 23 This is to set all of the device sound. [3]means it is 1---3 very loud. If the voltage in your country is 220V, please 50HZ select [50Hz] FLICKER If the voltage in your country is 110V， please 60HZ select [60Hz] GO4 Vega X1 user guide...
- Page 24 This shows the firmware version. If you need FIRMWARE FIRMWARE VERSION technical support, this information is useful. You can select up to 10 languages: English SELECT CURRENT /Ð ó ñ ñ ê è é/Español/Deutsch/ Italiano/日本語 LANGUAGES LANGUAGE 体中文/繁体中文 /한국어/Français/ GO4 Vega X1 user guide...
-
Page 25: Faq
It sucks but sometimes there's nothing that can be done: Physics is a harsh mistress. GO4 Vega X1 user guide... -
Page 26: What's In The Package
What’s in the package? Water proof Case Power/Record/Photo W hat’s in the package? Operation Instruction Please read this manual carefully before you use this unit, and keep it well for further checking. Camera USB Cable User Manual GO4 Vega X1 user guide... -
Page 27: Specifications
1.5” LCD Resolution 480x240 GPS (Int./Ext.) G-Sensor Built-in Memory Size 512MB Storage Card MicroSD up to32GB Microphone/Speaker Other Input/Output Ports USB, HDMI Battery Capacity 900mAh Charge Port Body Dimensions 65.2*39.3*39mm Weight Bracket Type Window holder GO4 Vega X1 user guide... - Page 28 Vega X1 Wearable Action Video Camera Operation Instruction Please read this manual carefully before you use this unit, and keep it well for further checking. GO4 Vega X1 user guide...
