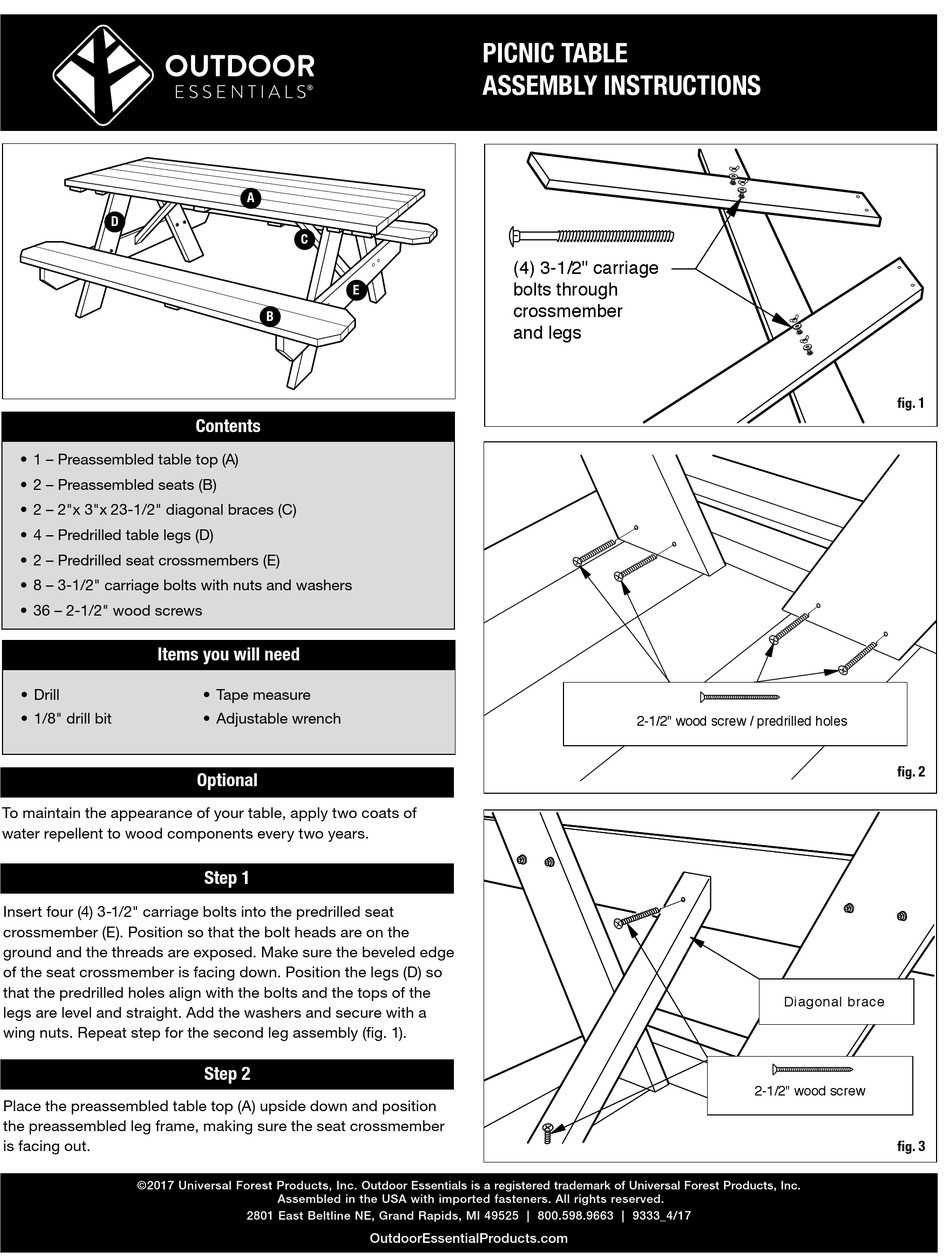

Outdoor Essentials PICNIC TABLE Assembly Instructions

D
D
• 1 – Preassembled table top (A)
• 2 – Preassembled seats (B)
• 2 – 2"x 3"x 23-1/2" diagonal braces (C)
• 4 – Predrilled table legs (D)
• 2 – Predrilled seat crossmembers (E)
• 8 – 3-1/2" carriage bolts with nuts and washers
• 36 – 2-1/2" wood screws
Items you will need
• Drill
• 1/8" drill bit
To maintain the appearance of your table, apply two coats of
water repellent to wood components every two years.
Insert four (4) 3-1/2" carriage bolts into the predrilled seat
crossmember (E). Position so that the bolt heads are on the
ground and the threads are exposed. Make sure the beveled edge
of the seat crossmember is facing down. Position the legs (D) so
that the predrilled holes align with the bolts and the tops of the
legs are level and straight. Add the washers and secure with a
wing nuts. Repeat step for the second leg assembly (fig. 1).
Place the preassembled table top (A) upside down and position
the preassembled leg frame, making sure the seat crossmember
is facing out.
©2017 Universal Forest Products, Inc. Outdoor Essentials is a registered trademark of Universal Forest Products, Inc.
A
A
C
C
E
E
B
B
Contents
• Tape measure
• Adjustable wrench
Optional
Lowe'sAsm.ai
Step 1
Step 2
Assembled in the USA with imported fasteners. All rights reserved.
2801 East Beltline NE, Grand Rapids, MI 49525 | 800.598.9663 | 9333_4/17
OutdoorEssentialProducts.com
PICNIC TABLE
ASSEMBLY INSTRUCTIONS
(4) 3-1/2" carriage
bolts through
crossmember
and legs
3-1/2" Carriage bolt
2-1/2" wood screw / predrilled holes
Beveled edge
fig. 1
fig. 2
Diagonal brace
Diagonal brace
Diagonal brace
Entretoise
2-1/2" wood screw 2-1/2" Wood screw
2-1/2" Wood screw
Vis à bois 2-1/2"
fig. 3
