Summary of Contents for UnitedPower GG1300

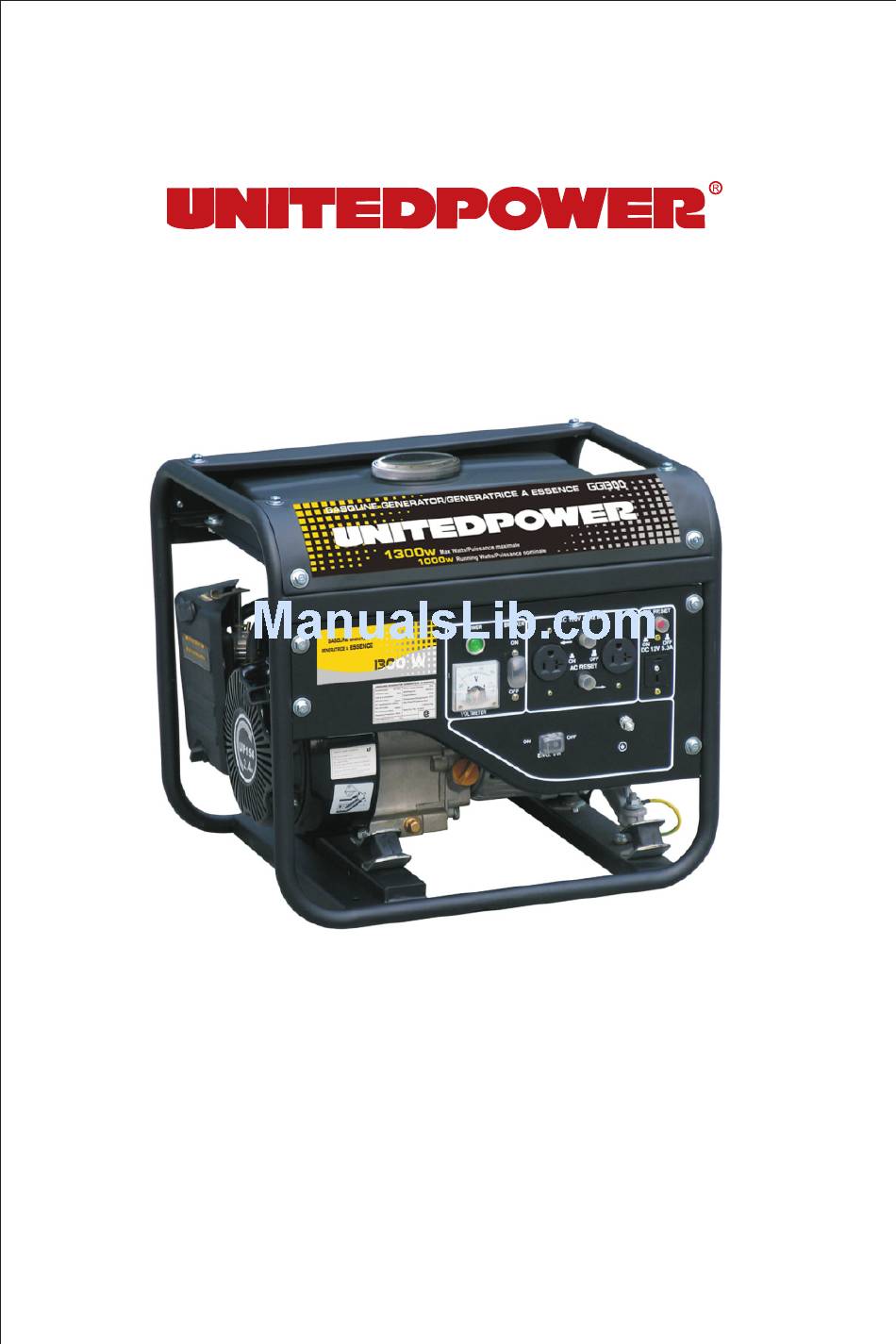

- Page 1 1300W Portable Generator 55-0308-0 Instruction Manual Toll Free Helpline: 1-866-565-4632 Before using the generator for the first time, read through this instruction manual carefully. Keep for future reference, do not throw away.
- Page 2 TECHNICAL DATA…………………………………………………………………………… … 1- SAFETY PRECAUTION………………………………………………………………………… 2-3 KNOW YOUR GENERATOR………………………………………………………………… … 4- PRE-OPERATION CHECK…………………………………………………………………… OPERATION…………………………………………………………………………………… …6- RESTARTING THE GENERATOR AFTER OVERLOAD ………………………………… … MAINTENANCE……………………………………………………………………………… … STORING YOUR GENERATOR…………………………………………………………… … TROUBLESHOOTING……………………………………………………………………… … 11-12 COLD WEATHER STARTING TIPS………………………………………………………… …12- LABEL EXPLANATION……………………………………………………………………… … 13-14 EXPLODED DRAWING………………………………………………………………………...
- Page 3 The figures quoted on the previous page in the above table are emission levels and are not necess- arily safe working levels. While there is correlation between the emission and exposure levels, this cannot be reliably used to determine whether or not further precautions are required. Factors that influence the actual level of exposure include the characteristics of the work room, other sources of noise, etc.
- Page 4 or wash it with water. 12.Do not cover unit when in use. 13.Always operate the generator on a firm, flat, and level surface, as the generator will vibrate on an irregular surface. If the generator is tilted, or removed during operation, fuel may spill/or the generator may tip over, causing a hazardous situation.
- Page 6 Select the generator that is right for you: 1.Identify all items that you would need to power. 2.Add up the total watts. All appliances and tools have different voltage and amperage requirements. Use the following formula to convert voltage and amperage to wattage. FORMULA: VOLTS X (times) AMPS = WATTS i.e.
- Page 7 fuel or fuel vapor may ignite. If fuel is spilled, wipe it up with a clean cloth and let dry before restarting the engine.
- Page 10 SPARK PLUG: 1.Dismantle the spark plug with high pressure cap. 2.Remove the spark plug. 3.Clear away carbon sediment. 4.Check for discoloration. Standard Color: Tan 5.Check spark plug gap. Standard: 0.7-0.8mm (0.028-0.031in) 6.Reinstall the spark plug. ENGINE OIL REPLACEMENT: 1.Ensure that the generator is on a stable and level surface area. 2.Turn and take out the dipstick.
- Page 11 STORING YOUR GENERATOR Long term storage of the generator will require some additional preventative measures to guard against deterioration. If fuel is kept in the generator, ensure that the engine is run for at least 30 minutes per month in order to ensure an easy start in emergencies. 1.Drain gasoline from fuel tank or utilize a fuel stabilizer if fuel is in tank.
- Page 12 CORRECTIVE CONDITION PROBABLE CAUSE ACTION Tighten plug Loose spark plug properly Tighten bolt Loose cylinder Insufficient properly head bolt compression Replace gasket Damaged gasket Fuel Insufficient Pull rope systems pulling speed sharply problems for starting rope No fuel Engine supplied to Foreign matter Clean tank combustion...
- Page 13 CONDITION PROBABLE CAUSE CORRECTIVE ACTION Tripped circuit breaker Reset Poor connection Check and repair Indicator light ON or faulty lead NO AC output Broken receptacle Check and repair Faulty circuit breaker Indicator light OFF Generator problem NO AC output Output power available Engine RPM set No load for 60Hz-Set 3780rpm Abnormality exists...
- Page 14 2.Ensure engine oil level is appropriate (low engine oil level will decrease probability of starting and can damage the engine) 3.Check the fuel level (use only unleaded gasoline with octane rating of 87 or higher) 4.Turn the fuel switch to the ON position. 5.Move the choke level to the right (CHOKE) position (i.e.
- Page 15 Air filter maintenance reminder. Please refer to the maintenance checklist above for details. DO NOT regulate the speed bolt. Warning label to ensure that only gasoline fuel is used with this unit. Engine becomes extremely hot during and immediately after it has been in use.
- Page 18 •The Model number: GG1300 •The product number: 55-0308-0 •The name of the product: UnitedPower 1300W Gasoline Generator IMPORTANT! - SAFETY FIRST! Before attempting to operate this product, please read all the basic safety precautions outlined in this manual to reduce the risk of fire, electric shock and personal injury.
- Page 19 h) This warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to, scratches, dents, paint chips, or to any corrosion or discoloring by heat, abrasive and chemical cleaners; and i) This warranty will not apply to component parts sold by and identified as the product of another company, which shall be covered under the product manufacturer’s warranty, if any.
Need help?
Do you have a question about the GG1300 and is the answer not in the manual?
Questions and answers
Elle tourne bien mais aucune tension à la sortie tout les disjoncteur sont ok
If the UnitedPower GG1300 generator runs well but has no output voltage despite all circuit breakers being okay, a possible issue could be with the electric systems, such as a faulty magneto or a damaged spark plug. These problems can affect power generation even if the engine is running properly.
This answer is automatically generated
My United 1300 generator was overloaded. I can't get watt power to resume. Breaker didn't pop out either. is it internal breaker issue ?? what do I do ??
Yes, there may be an internal breaker issue with the UnitedPower GG1300 generator if it was overloaded and the power will not resume. The manual suggests checking and resetting a tripped circuit breaker and, if the problem continues, a faulty circuit breaker or internal generator problem may be the cause.
This answer is automatically generated
How m.uch is this worth
The context does not provide a single overall value for the United Power GG1300 generator itself, but it lists prices for various parts and accessories. For example, a carburetor for the generator is priced at $44.99, and other components like a piston assembly are listed at ₴2,590.05. However, the full price of the generator is not mentioned.
