MS-1400 Keri Keys Receiver

Installation Guide

Section 1 - Keri Keys Receiver Configuration
Section 2 - Specifications
Section 3 - Two Channel Operation Wiring
Section 4 - NXT-RIM Wiring
Sections 5, 6, and 7 - Housing, Mounting, and Receiver Read Range
Section 8 - LED and Beeper Functions
Section 9 - Keri Keys - Key Fob Transmitter
Section 10 - Contact Keri Systems
Keri System's Keri Keys Receiver is a two-channel output receiver capable of outputting two separate channels based
upon which button is pushed on the clicker/transmitter. The receiver outputs data in a format compatible with Keri
Systems MS series readers as used with the PXL-500P Tiger Controllers and is capable of operating reliably at 300 feet
using the receiver's built-in antenna. Greater distance can be achieved with use of an external antenna.
1.0

Keri Keys Receiver Configuration

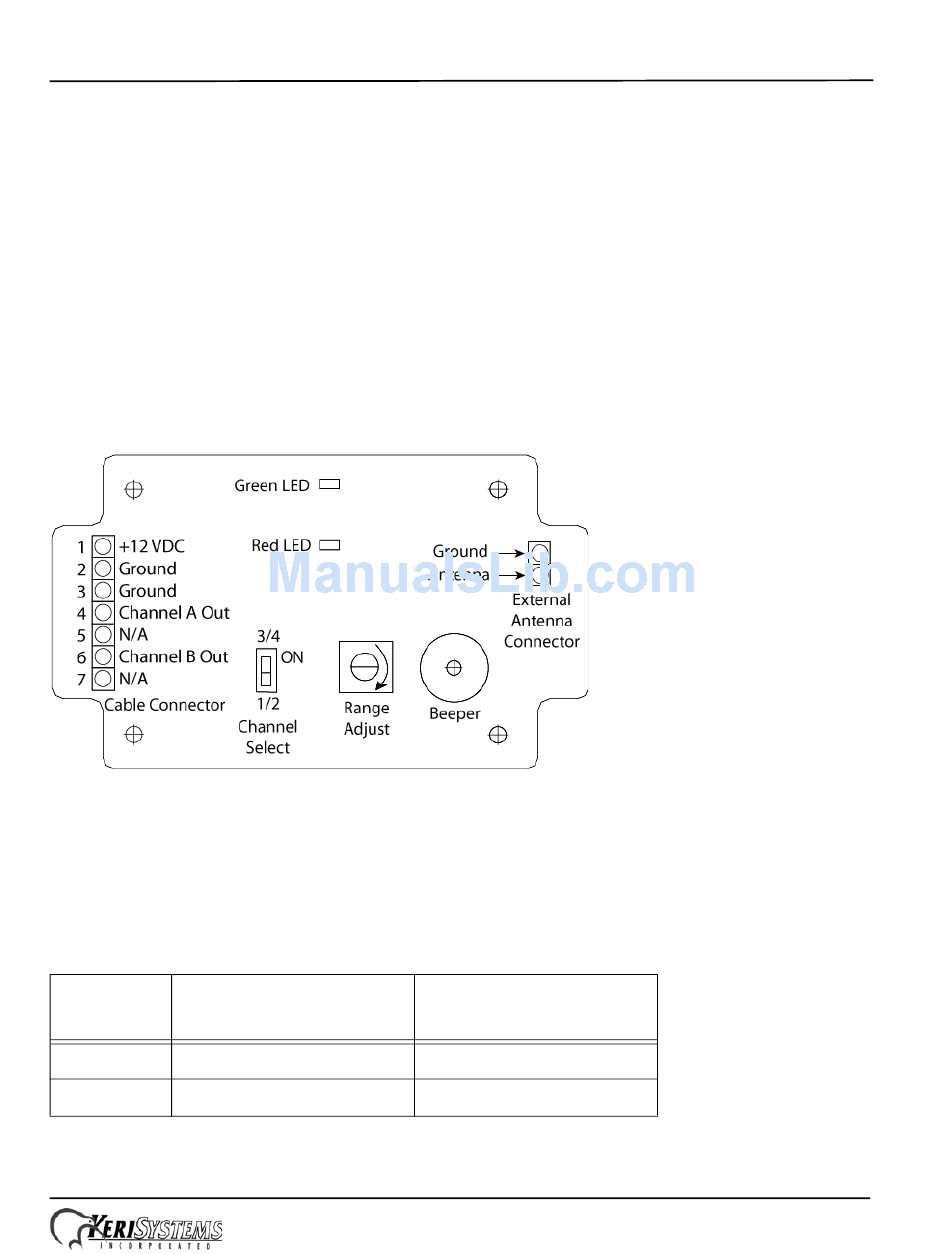

The diagram below shows the configuration of the receiver board.
Figure 1: Clicker Receiver
1.1
Channel Select Configuration
By using two receivers you can use the four button clicker to operate up to four entrances. Setting the channel select
switch to 1/2 will allow it to operate with clicker buttons 1 and 2. Setting the channel select switch to 3/4 will allow use of
clicker buttons 3 and 4 (see Figure 1 for location of the channel select switch).
The chart below shows the function of each of the 4 clicker buttons.
Receiver
Channel
A
Clicker Button 1
B
Clicker Button 2
NOTE: For two button clickers the switch must be set to 1/2.
Channel Select
Switch (1/2)
Page 1 of 7
Channel Select
Switch (3/4)
Clicker Button 3
Clicker Button 4
P/N: 01501-001 Rev. D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-1400 and is the answer not in the manual?

Questions and answers

Summary of Contents for KeriSystems MS-1400

  • Page 1: Installation Guide

    MS-1400 Keri Keys Receiver Installation Guide Section 1 - Keri Keys Receiver Configuration Section 2 - Specifications Section 3 - Two Channel Operation Wiring Section 4 - NXT-RIM Wiring Sections 5, 6, and 7 - Housing, Mounting, and Receiver Read Range...
  • Page 2: Specifications

    MS-1400 Keri Keys Receiver Installation Guide Specifications Clicker Receiver Dimensions (Enclosure) • 7.24 inches high by 3.75 inches wide (at the widest point) by 2.30 inches deep • 18.39 cm high by 9.52 cm wide by 5.84 cm deep Power/Current Requirements •...
  • Page 3 NOTE: For Single Channel Operation, connect the Channel A output only. One PXL-500P Figure 2: MS-1400 Keri Keys Wiring - 1 PXL-500P Two PXL-500Ps NOTE: When connecting the receiver to two PXLs, connect the 12VDC from only one PXL-500P.
  • Page 4 NXT-RIM to a reader see the NXT Reader Interface Module Installation Guide (P/N 02501-001). Figure 4: MS-1400 Keri Keys Wiring - NXT-RIM Figure 5: MS-1400 Keri Keys Wiring - 2 NXT-RIMs Page 4 of 7 P/N: 01501-001 Rev. D...
  • Page 5 MS-1400 Keri Keys Receiver Installation Guide Housing The receiver is housed in an IP67 rated enclosure, which is dust and moisture resistant. It can be mounted outdoors on fences, buildings, etc. NOTE: When installing the lid, care must be taken to insure the gasket fits properly in the correct slot. Failure to do this, will allow water to enter the box.
  • Page 6 MS-1400 Keri Keys Receiver Installation Guide LED and Beeper Functions The following tables detail the LED and beeper indications on the receiver Green LED Indication Receiver has power and has passed self tests. Receiver is not powered or failed to power up successfully.
  • Page 7 MS-1400 Keri Keys Receiver Installation Guide Keri Keys - Key Fob Transmitter The Keri Keys Receiver is to be used with the TM-20X or TM-40X key fob transmitter. Button 1 Button 1 Button 2 Button 2 Button 3 Button 4...
