Summary of Contents for Origin Valet

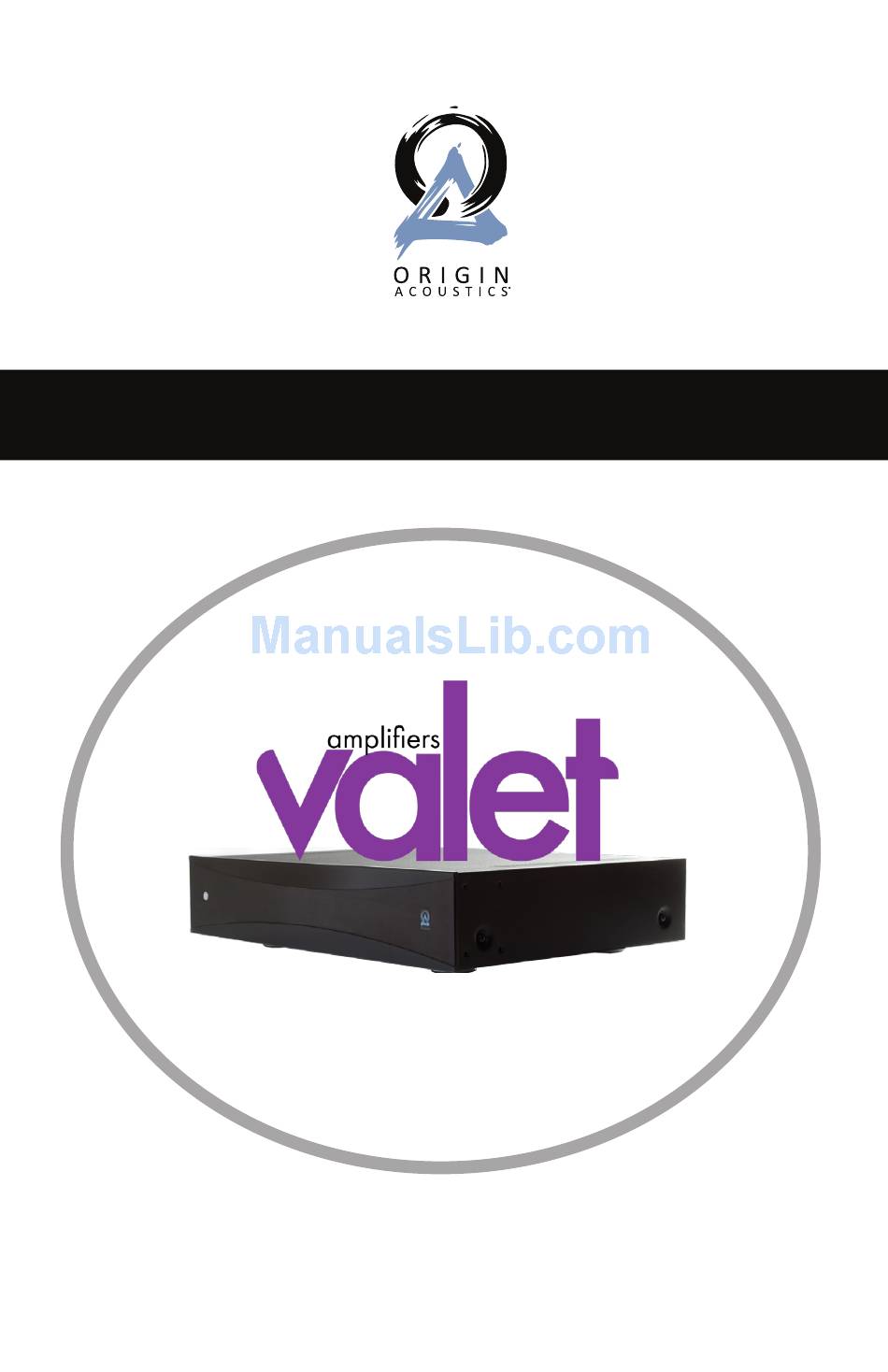

- Page 1 V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L Valet Amplifier Installation Manual...
-
Page 2: Table Of Contents
V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L Table of Contents Product Description Specifications Included in package Safety Instructions 8 Channel Amplifier Collection... - Page 3 V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L Thank you for purchasing the Valet amplifier. At Origin Acoustics, we take pride in providing you with a high quality product.
-
Page 4: Product Description
And because Origin Acoustics is based on a heritage of innovation, it stands to reason that Valet has plenty of it to talk about, as well. The Amplifier includes eight powered channels to drive four stereo zones of loudspeakers. -
Page 5: Safety Instructions
V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L LINE OUT 115/230V 50/60Hz 530W FUSE TYPE: T6.3AL 250V FOR 115V T3.15AL 250V FOR 230V SPEAKER... -
Page 6: Channel Amplifier Collection
V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L 8-CHANNEL AMPLIFIER CONNECTION Place the amplifier in the desired location making sure there is adequate ventilation to dissipate heat from the unit. -
Page 7: Echo Dot Connection
V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L Echo DOT Connection One of the great advantages of the Valet amplifier is how simple it is to connect the Echo DOT in each zone. A simple CAT6 cable is all that is needed to make both the power and signal connections. -
Page 8: Echo Dot Installation
V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L Echo DOT Installation One of the most important features of the Valet amplifier is the available option to mount the DOT in the remote room so it blends into the environment. The ceiling mount option takes advantage of the same Tool-Less Mounting System used in the installation of our Director in-ceiling speakers. - Page 9 V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L DIAGRAM 4 DIAGRAM 5...
-
Page 10: External Sources
V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L Connecting External Sources Any third-party source with a line level input can be connected to the Valet amplifier via the onboard RCA connections. These can be zone specific or global as required. Zone specific inputs can only be played back in a single zone while global inputs can be accessed by every zone. -
Page 11: Basic Operation
“Skills” found in the Echo DOT protocol. However, for the most part, the Valet will be seamless and automatic in its operation. Voice commands given to the DOT will be processed and responses will be acknowledged through the speakers in the room. -
Page 12: Troubleshooting
V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L Troubleshooting If possible, it’s often good to try to isolate the problem first. For example, if you’re playing a DVD on a television and there’s no sound, try connecting an MP3 player to the system to see if that works. -
Page 13: Technical Assistance
If you are considering returning the product, it’s required that you contact Origin Acoustics prior to any return attempts. This way we can determine if the issue can be resolved without returning the product, or if needed we can provide... -
Page 14: Limited Lifetime Warranty
If the product is determined to be defective, it will be repaired or replaced at Origin Acoustics’ discretion. If the product must be replaced yet it is no longer manufactured, it will be replaced with a model of equal to or greater value that is the most similar to the original. - Page 15 • Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Origin Acoustics or an authorized dealer • Damage caused by improper installation • Normal wear, maintenance, and environmental issues •...
- Page 16 V A L E T A M P L I F I E R I N S TA L L AT I O N U S E R M A N U A L Requirements & Warranty Coverage This warranty may not be valid if the product was purchased through an unauthorized dealer.
- Page 17 Before making any return attempts, it is required that you first contact Origin Acoustics. Return product to Origin Acoustics or your dealer, either in person or by mail. It’s preferable if the product is returned in the original packaging. If this isn’t possible, the customer is responsible for insuring the shipment for the full value of the product.
- Page 18 6975 S. Decatur Blvd, Las Vegas, NV 89147• www.originacoustics.com • 844-674-4461 ©2017 Origin Acoustics. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Origin Acoustics.
