Summary of Contents for Count iCREASE

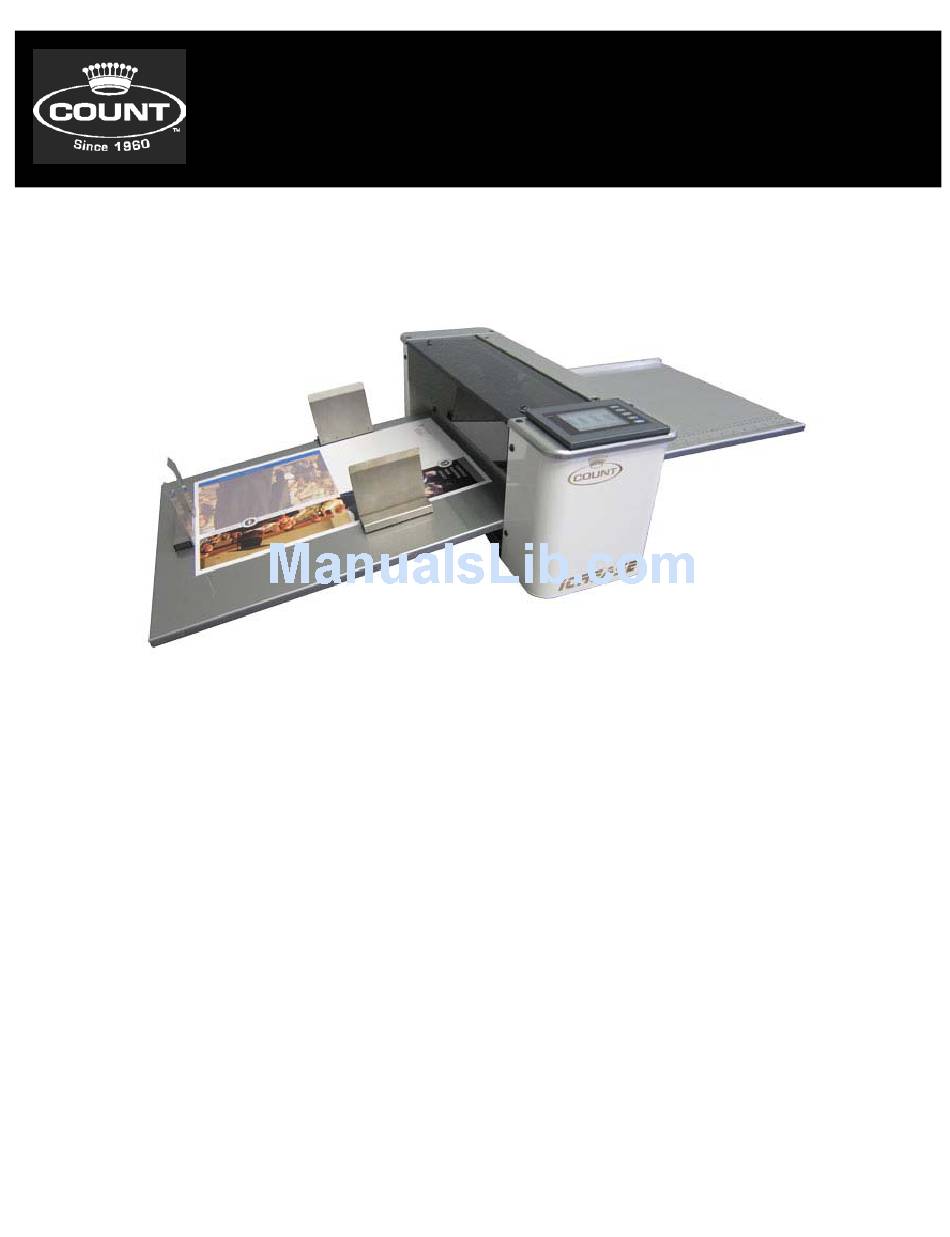

- Page 1 12-2015 iCREASE PRO Serial Number ___________________________ Date ___________________________________...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS…………………………………………………………………………………………….1a SAFETY PROCEDURES/CARE & MAINTENANCE.………………………………………………….1b COMPONENT IDENTIFICATION…………………………………………………………………………2 TOUCH SCREEN CONTROLLER ………………….………………………………………………….3 Crease Mode....………………………………………….…….…………4 Transport Operation…………………………….……………………….……….……5 Programming for Crease Mode..………..………………….......……….5 Half Fold..................5 Tri-fold................………6 Z Fold..................6 Letter Fold...................6 Roll Fold..................6 Gate Fold..................7 Double Gate..................7 Double Parallel................7 Perfect Bind Double Hinge...............7 Perfect Bind Single Hinge...............8 Perfect Bind No Hinge..............8 Custom Crease Setups..............8... -
Page 3: Specifications
Max. Sheet Size: …………………………………………………………………13”x19”-36”* *NOTE: The icrease / icrease pro is capable of handling many types of applications above and beyond the standard specifications. It is possible to feed quite a variety of jobs, from 36” sheets to die cut stocks. However, the performance of the icrease / icrease pro on these special applications is directly related to the experience of the operator. -
Page 4: Safety Procedures/Care & Maintenance
BE ALERT! BE CAREFUL! CARE AND MAINTENANCE is a precision machine. It is very important to keep it free icrease / icrease pro of excessive dust, dirt and foreign matter. We recommend that you keep the machine covered when not in use. -
Page 5: Component Identification
COMPONENT IDENTIFICATION Feed Table Assembly Feed Rail Assembly Crease Bar Paper Stop Touch Screen Delivery Tray REFERENCES Touch Screen Pg. 3 Feed Table Assembly Pg. 10 Delivery Tray Pg. 10 Crease Bar (RAC) Pg. 12... -
Page 6: Touch Screen Controller
/ icrease pro TOUCH SCREEN CONTROLLER THE TOUCH SCREEN CONSISTS OF FOUR SECTIONS: 1. Count Logo and Service Access 2. Start Button 3. Serial Number 4. Function Keys (Not Used) * SPECIAL NOTE THE F KEYS OR SYS KEY TO THE RIGHT ARE NOT USED. -
Page 7: Crease Mode
Available on icrease pro only Crease selections include half, tri-fold, z fold, letter fold, roll fold, gate fold, double gate, double parallel, 3 perfect bind selections. Available on icrease pro only 4 Custom Creases on icrease and 12 on icrease pro... -
Page 8: Transport Operation
TRANSPORT OPERATION The Run Button will start the Transport in any given mode. Press it • again to stop the transport. Each Mode has a timeout feature to preserve the life of the machine. • A document may be slowly advanced through the transport by pushing and holding one of these buttons. -
Page 9: Tri-Fold
> Accept > Run. EXAMPLE: Roll Fold (icrease pro only) : Press More > Roll Image > Start Measuring > Physically Run a sheet through the machine for the sensor to measure > Accept > Run. -
Page 10: Gate Fold
Gate Fold(icrease pro only): Press More > Gate Image > Start Measuring > Physically Run a sheet through the machine for the sensor to measure > Accept > Run. EXAMPLE: Double Gate Fold(icrease pro only): Press More > Double Gate Image > Start Measuring >... -
Page 11: Perfect Bind Single Hinge
Physically Run a sheet through the machine for the sensor to measure > Accept > Run. EXAMPLE: Perfect Bind No Hinge(icrease pro only): Press More > Perfect Binding Score Image > Enter The Book Thickness > No Hinge Image > Start Measuring > Physically Run a sheet through the machine for the sensor to measure >... -
Page 12: Saving/Recalling Custom Jobs
Saving Custom Crease Jobs(icrease pro only): Press Custom > Enter In Distance For each Crease in mm > Save > Select Position to save in 1, 2, 3, or 4. Recalling Custom Crease Jobs(icrease pro only): Press Custom > Recall >... -
Page 13: Delivery Tray Assembly
FEED TABLE ASSEMBLY Mount Notch Feed rail on non operator side DELIVERY TRAY ASSEMBLY INSTALLING THE DELIVERY TRAY The delivery tray is held in place with 2 dowel pins on each frame. Position the tray to slide it under the 2 dowel pins and rest the angle stop up. -
Page 14: Adjusting Feed Rail
ADJUSTING THE FEED RAIL The feed rail on your icrease / icrease pro is designed to adjust easily in case of a problem with crooked feeding. By loosening the feed rail screw and nut on the front or rear of the rail you can move the rail for sqaureness. -
Page 15: Folding Direction Of Paper
FOLDING DIRECTION OF PAPER There is a correct and incorrect way to fold a creased paper. Following the diagram below will show you the correct direction the paper should be folded. RAC System (Rotary Actuated Creasing) Assembly... -
Page 16: Adjusting Rac Rollers (Depth Of Crease)
ADJUSTING THE RAC ROLLERS The RAC rollers are set from the factory and it is NOT recommended to make any adjustments to this without consulting with Count’s tech-support department. Should an adjustment be necessary, please follow the steps below. This adjustment is used to adjust the pressure of the crease. -
Page 17: Changing Lower Crease Die
CHANGING THE LOWER CREASE DIE The Lower crease die can easily be changed to accommodate thicker stocks(.01 or thicker) by removing the delivery tray, remove the clear cover, rotate the 2 lock pin brackets. Slide the bar out and flip it over to use the wider die channel. Lock Pin Brackets... -
Page 18: Troubleshooting
TROUBLE SHOOTING POWER DOES NOT TURN ON • 1. Check fuse on side cover. 2. Check outlet for power. POWER TURNS ON BUT HMI DOES NOT LIGHT UP • 1. Check fuse on side cover. 2. Make sure the green lights through the slots in the back panel are on. If not Check outlet power. - Page 20 251 Wedcor Avenue, Wabash, Indiana 46992 Website: www.countmachinery.com Email: Info@martinyale.com Fax: (260) 563-4575 Rev. 0 12/22/2015 M-S027960...
