Summary of Contents for IAdea IAD18000

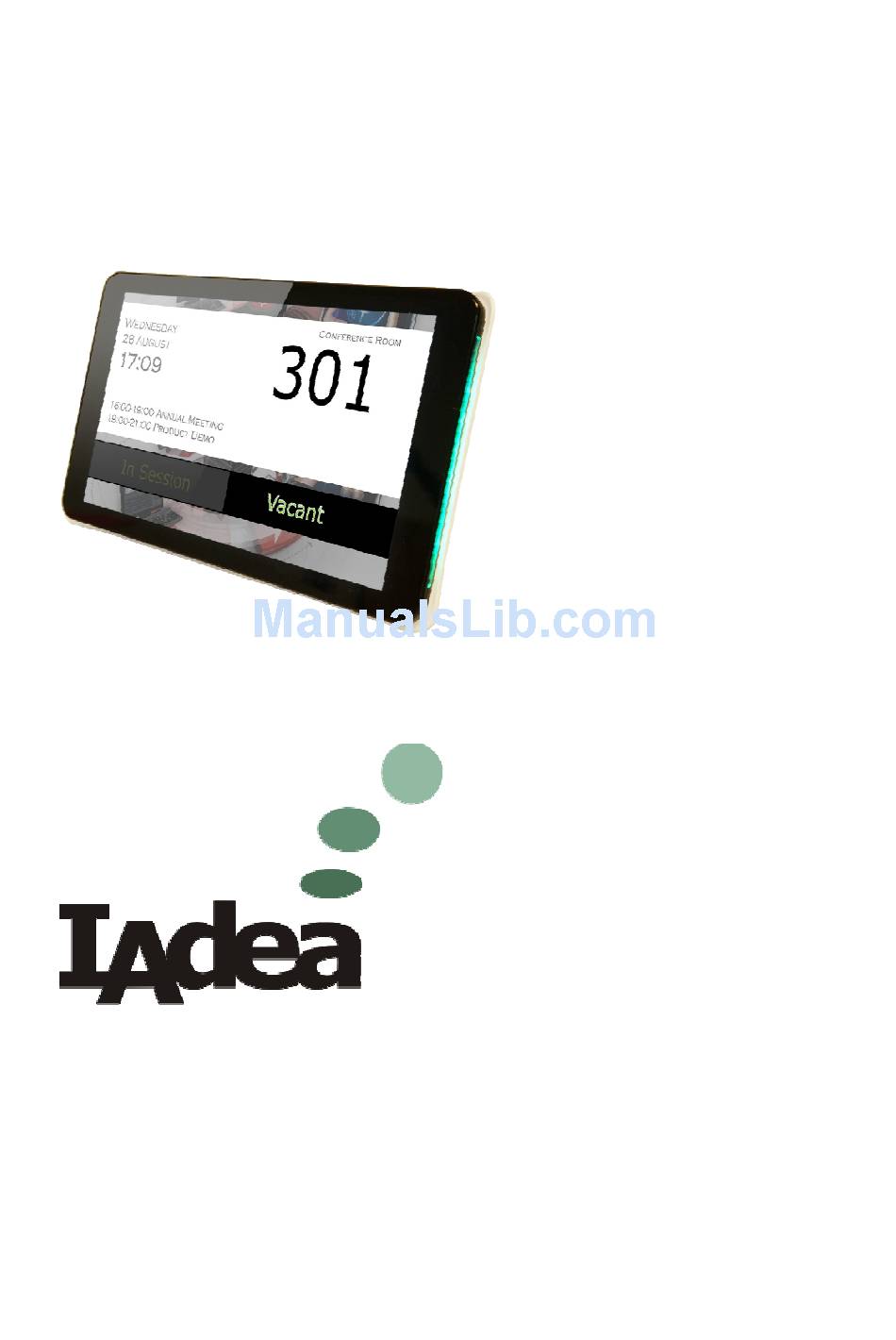

- Page 1 IAD18000/18001 18001 Hardware User Manual User Manual 10.1 HD Smart Signboard 10.1 HD Smart Signboard IAdea Corporation IAdea Corporation 綠創科技 綠創科技 綠創科技 綠創科技...
- Page 2 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
Contents IAD18000/18001 Hardware User Manual Introduction 1.1. Package contents 1.2. Physical view and features 1.3. Installation 1.4. System setup 1.5. Connect device to network 1.6. Content Management Technical Data 2.1. Specifications... -
Page 4: Introduction
1. Introduction This document describes the hardware hardware specification of the IAD18001. 1.1. Package contents Power Table Table Power Main Stand Stand adapter Unit MicroSD with 1.2. Physical view and features and features Front View (IAD18001 only) - Page 5 Rear View...
-
Page 6: Installation
1.3. Installation Securing the power and network cable Insert power plug Fasten bracket onto the socket Securing Micro SD card Insert SD card bracket Fasten SD card bracket Installing the table stand Simply screw the supplied table stand into stand screw hole Support landscape and portrait setup... -
Page 7: System Setup
Mounting IAD18001 is MIS-D75 compatible, the recommended screw is M4 x 4.5~5mm (excl. bracket thickness) Mounting Option 1: [VESA mount] Supporting VESA standard: VESA MIS-D75 (75*75mm) Supporting screw: M4*4mm (exclude the mounting plate thickness) Mounting Option 2: [Using back cover] (power / SD card brackets MUST NOT installed while mount on back cover) Release the back cover screw to release back cover Install back cover : thread head height must not exceed 3mm... -
Page 8: Connect Device To Network
1.5. Connect device to network Click the Wireless LAN setting to launch the wireless configuration UI. Click the ON/OFF button as indicated below to turn ON Wireless interface (network). The player will scan for wireless signals nearby and available access points will be listed. Click on the network ID to connect. -
Page 9: Technical Data
2. Technical Data 2.1. Specifications IAD18000/18001 10.1” IPS panel Display 10 points multi-touch ( IAD18001 only ) Programming LED bar x 2 (IAD18001 only ) 300 nits maximum brightness 1280x800 panel resolution Viewing angle (H/V): 178/178 Built-in speaker 2W x 2 H.264 (up to 1080p,10Mbps) - Page 10 About IAdea : IAdea Corporation 3F, No. 21, Lane 168, Xingshan Road Taipei, Taiwan 114 Phone: +886-2-2791-1110 Fax: +886-2-2791-1170 Website: http://www.IAdea.com Responsible Party in USA: Legal Company Name IAdea America Corporation. Address 20 Fairbanks, Suite 170, Irvine, CA 92618 Phone, Fax...
