A1 Touch AOD/ATS 215 User Manual

Full hd (1920x 1080 pixels) lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

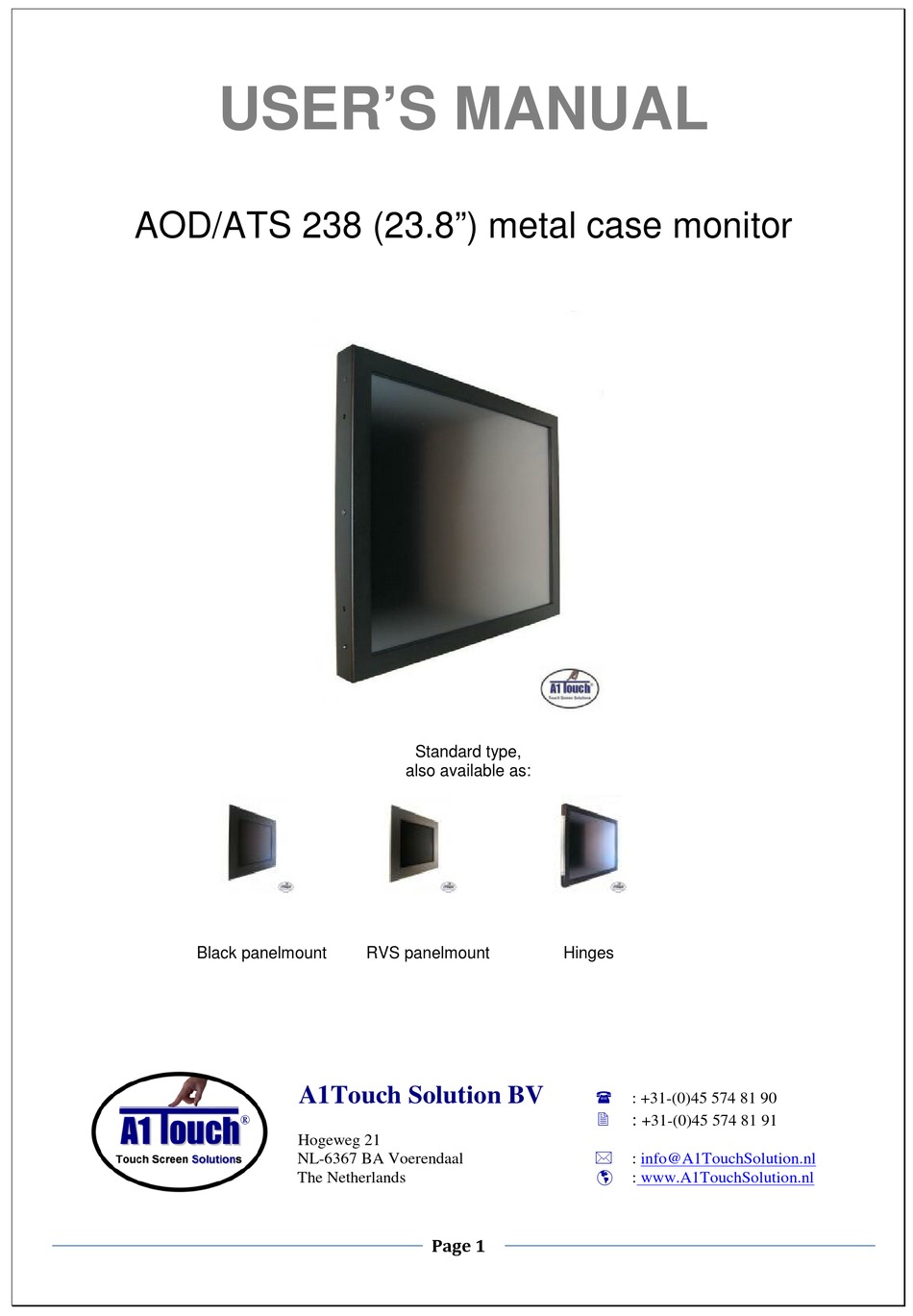

USER'S MANUAL
AOD/ATS 238 (23.8") metal case monitor
Black panelmount
A1Touch Solution BV
Hogeweg 21
NL-6367 BA Voerendaal
The Netherlands
Standard type,
also available as:
RVS panelmount
Page 1
Hinges
: +31-(0)45 574 81 90
:
+31-(0)45 574 81 91
:
info@A1TouchSolution.nl
:
www.A1TouchSolution.nl

Advertisement

Table of Contents
loading

Summary of Contents for A1 Touch AOD/ATS 215

  • Page 1 USER’S MANUAL AOD/ATS 238 (23.8”) metal case monitor Standard type, also available as: Black panelmount RVS panelmount Hinges A1Touch Solution BV  : +31-(0)45 574 81 90  +31-(0)45 574 81 91 Hogeweg 21  NL-6367 BA Voerendaal info@A1TouchSolution.nl  The Netherlands www.A1TouchSolution.nl Page 1...

  • Page 2: Table Of Contents

    Contents: 1. Monitor User’s Manual 1.0. Connection to the monitor 1.1. Installation 1.2. Features 1.3. Plug and play function 1.4. Safety Precaution 1.5. OSD (On-Screen-Menu) 1.6. OSD Menu 1.7. Specifications 1.8. Contents of the retail package 1.9. Troubleshooting 1.10. Drawing 2.

  • Page 3: Monitor User's Manual

    CD or software program. Plug and Play Function AOD/ATS 215 can be installed and connected automatically to any computer systems without driver CD or software programs. Monitor will recognize the optimized value of video mode by DDC(Display Data Channel) method that makes the graphic card of computer to communicate with the monitor.

  • Page 4: Osd (On-Screen-Menu)

    • Adapter Only use an adapter designed of the LCD monitor. • Plug Do not remove any of the prongs of the monitor's three-pronged power plug. Disconnect the power plug from the AC outlet if you will not use it for an indefinite period of time. •...

  • Page 5: Osd Menu

    OSD Menu OSD Menu Description Remarks Brightness Adjust the brightness of the screen Contrast Adjust the contrast of the screen Adjust the horizontal position of the H.Position screen’s image Adjust the vertical position of the screen’s Picture V.Position image Only Phase Adjust the focus of the screen’s image usable on...

  • Page 6: Specifications

    Specifications AOD238 VGA+DVI, 23.8 inch metal case monitor with glare Projected Capacitive 10 pts touch Black powdered monitor. For panelmount version with full glass toplayer Model: M238HVN01.0 (AUO) Type: 23.8 inch, 16:9, a-Si TFT-LCD Resolution (max): 1920 x 1080 Color: 16,7 million Pixel: 0.2745×0.2745 mm (H×V)

  • Page 7: Troubleshooting

    Troubleshooting TO REDUCE THE RISK OF ELECTRIC SHOK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONELLE. • The monitor does not respond after you turn on the system. • Make sure that the monitor is turned on. •...

  • Page 8: Drawing

    1.10 Drawing Page 8...

  • Page 9: Touch Options

    2. Touch Options Touch-options related to monitor size Resistive PROJ. Optical Touch 4Wire 5Wire Dual protected Touch 23.8” Aviable Not aviable On demand Option: Projected-capacitive-touchscreen Projected capacitive sensor Heat tempered glas, glare is standard, non glare is option Glass Tempered glass with ceramic black borders, C-grinded, r=2mm Chemical resistance Acetone, ammonia-based glass cleaners, hexane, isopropyl alcohol, methylene chloride, mineral spirits, turpentine, methyl...

  • Page 10: Mounting

    3. Mounting overview 3.1. Plain 3.2. Brackets 3.3. Panel mounting 3.4. Wall mounting Plain Metal case monitor Brackets Metal case monitor + 2x brackets Panel-mounting Metal case monitor + bezel + 2x brackets Page...

  • Page 11: Wall Mounting

    Wall mounting Metal case monitor + New Star TV Wallmount (FPMA-W115) Page...
