Introduction
ES208G is a kind of gigabit unmanaged Industrial Ethernet switch,
it support 8 port 10/100/1000M RJ45 port, DC power supply
(12-48V). It adopted no fan, low power consumption design, IP40,
corrugate high strength iron shell, the performance is more
steadily. ES208G accorded with CE, FCC standard and Industrial
4 grades, DIN rail installation and wide operating temperature
(-25~70 ), it can satisfied some kinds of industrial environment,
it can provide reliable and quickly solution for your Ethernet
device.
Packing list
The unmanaged Ethernet switch is shipped with the following
items. If any of these items are missing or damaged, please
contact your customer service representative for assistance.
Industrial Ethernet Switch
1
User manual
1
DIN-Rail mounting kit
1
Warranty card
1
Feature
Support 8 ports 10Base-T/100Base-TX/1000 Base-TX
Support 10/100/1000M self-adaption
Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
Support Store and forward
Support broadcast storm relieving
12 48VDC power input, power supply support non-polarity.
-25 70
working temperature
IP40 protect grade, high strength iron shell
DIN Rail installation

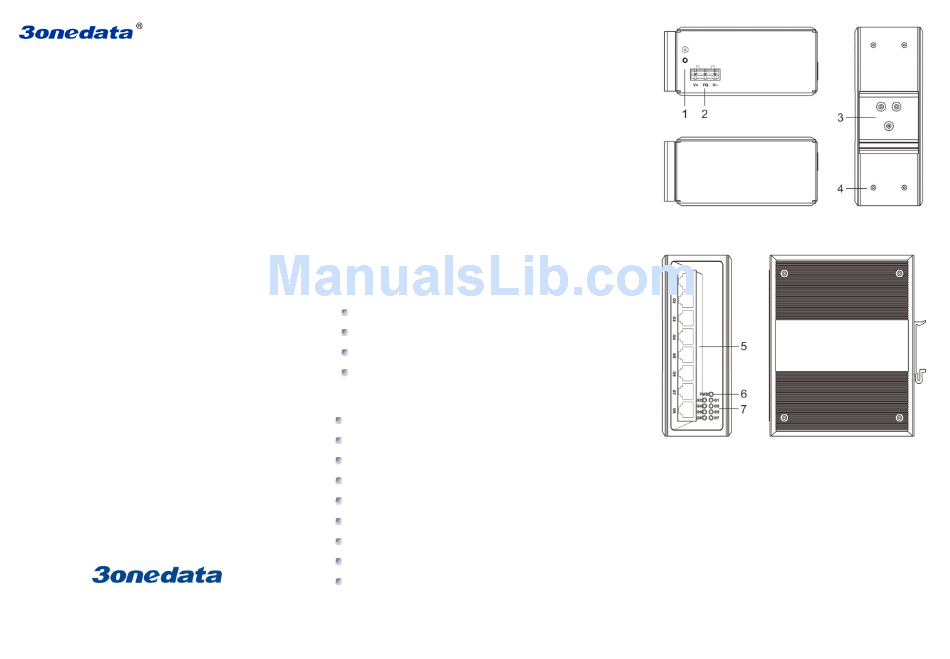

Panel layout
Vertical view and bottom view
- 1 -
Rear view and Side view
1. Ground screw
2. Power input terminal block (3 bits)
3. Screw holes for Wall Mounting Kit
4. DIN-Rail mounting kit
5. 10/100/1000Base-T(X) port
6. PWR indicator
7. Gigabit Ethernet port indicator
Dimension
Front view
