Philex 83003R User Manual

Digital Multimeter
USER GUIDE
83003R

1. Overview

This multimeter is characterized by a compact rugged construction with protective
holster and stand. The LCD Screen with 27mm display gives clear readings even
in low light when the backlight can be switched on. Features include dual slope
A/D converter using C-MOS technology for auto-zeroing, polarity selection and
over-range indication. Full overload protection is provided.
Before use you will need to fit a 9V PP3 battery (not supplied) in the compartment
located on the back of the meter. To open the compartment remove the cross
headed screw from the lid and lever open, clip the terminal studs over the battery
terminal caps, close the compartment lid and screw tightly shut.

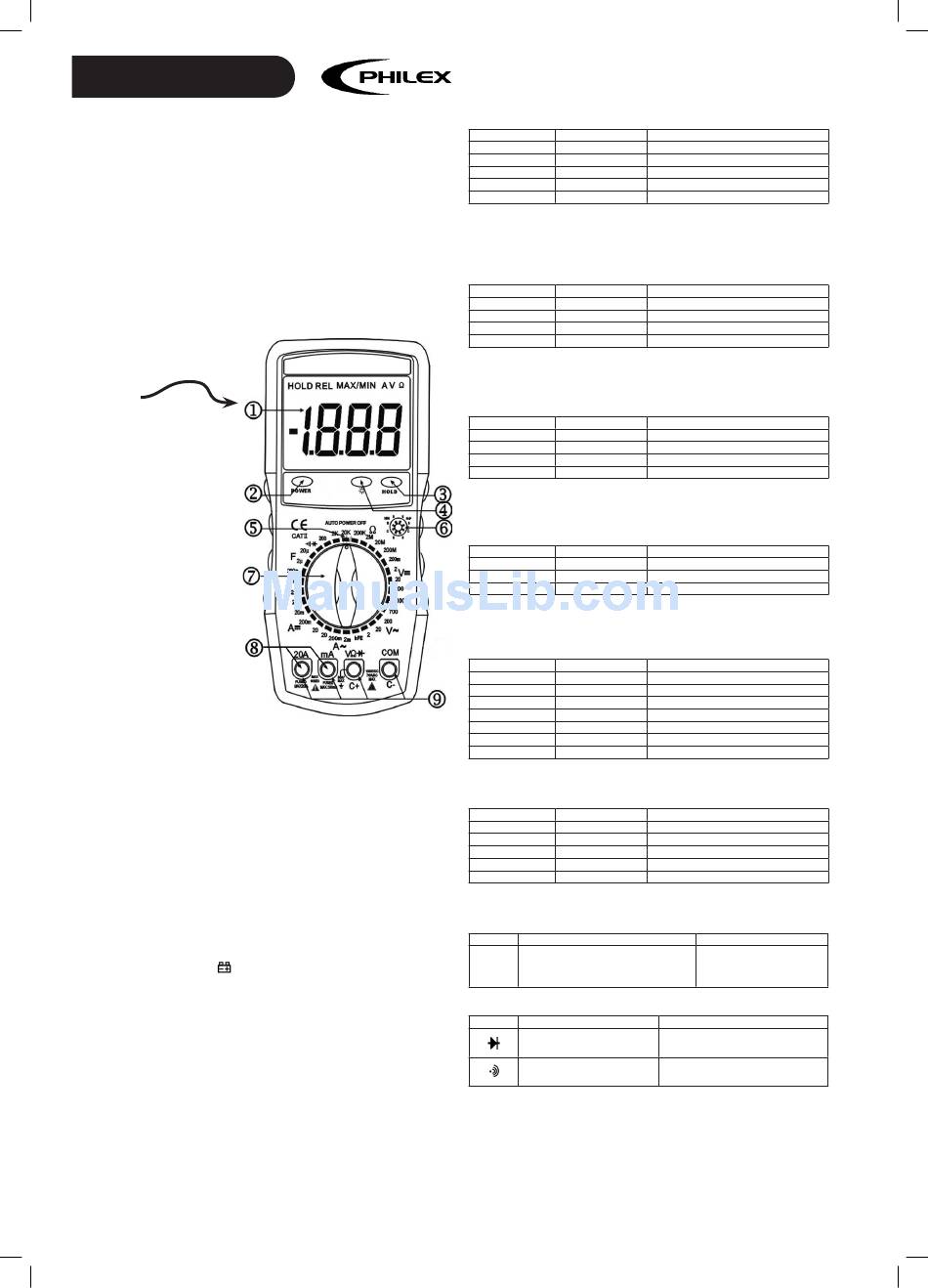

2. Panel Layout

Battery
Compartment
Insert 9V PP3
1) LCD Display 27mm
2) POWER Switch: Boot Up / Shutdown
3) Data-hold Switch (HOLD): Pressing this button, the meter enters the auto data hold
mode and "HOLD" is displayed on the LCD.
4) Back Light Button Switch: Pressing the button turns the backlight on,
pressing it again turns it off.
5) Function switch indicator lamp
6) hFE Input Socket
7) Rotary Switch: use this switch to select functions and ranges
8) Mechanical blocking system.
9) V/Ω Input Socket, 20A Input Socket, mA Input Socket & COM Input Socket
SPECIFICATIONS
3.1 GENERAL CHARACTERISTICS
3.1.1 3 ½ digit big LCD max. Indication 1999.
3.1.2 Auto-Zero & Auto-Polarity.
31.3 Overrange: indication of "1" or "-1".
3.1.4 Low battery indication: " "
3.1.5 Power supply: 9V Zinc-carbon battery.
3.1.6 Safety standards: The meter complies with IEC1010 Double Insulation,
Pollution Degree 2, overvoltage Category II.
3.1.7 Protective terminal socket covers prevent operational mistakes
3.1.8 Optimum operating temperature for accuracy: 23ºC±5ºC
3.1.9 Temperature range: Operating: 0ºC to 40ºC Storage: -20ºC to 60ºC
3.1.10 Humidity range:
Operating : max 75%RH Storage: max 80%RH
3.1.11 Size: 190mm x 88.5mm x 27.5mm
3.1.12 Weight: Approx 320g (including battery).
31.13 Accessories: Operation manual, Test leads, Temperature test probe &
zip-up case.

3.2 MEASUREMENT SPECIFICATION

Environment :
Temperature : 23ºC±5ºC relative humidity: max 75%

3.2.1 DC Voltage

Range Resolution
200mV 100µV
2V 1mV
20V 10mV
200V 100mV
1000V 1V
Overload Protection : 1000V DC/700Vrms AC on other ranges.
Input impedance : 10MΩ on all ranges
3.2.2 AC voltage (Average sensing. calibreated to rms of sine wave)

3.2.2 AC Voltage

Range Resolution
2V 1mV
20V 10mV
200V 100mV
700V 1V
Frequency Range: 40 to 400Hz
Response: average, calibrated in rms of sine wave

3.2.3 DC Current

Range Resolution
2mA 1µA
20mA 10µA
200mA 100µA
20A 10mA
Overload protection: 0.2A/250V fuse 20A/250 fuse 20A up to 15 seconds
Note: [1] 10A range: not fused

3.2.4 AC Current

Range Resolution
2mA 1µA
20mA 100µA
20A 10mA
Frequency : 40~200Hz
Overload protection : 0.2A /250V fuse,20A/250V fuse 20A up to 15 seconds

3.2.5 Resistance

Range Resolution
200Ω 0.1Ω
2KΩ 1Ω
20KΩ 10Ω
200KΩ 100
2MΩ 1KΩ
20MΩ 10KΩ
200MΩ 100KΩ
Overload protection :250V DC/250Vrms AC for all range.

3.2.6 Capacitance

Range Resolution
2nF 1pF
20nF 10pF
200nF 100pF
2µF 1nF
20µF 10nF
Overload Protection :36V DC/36Vrms AC for all range

3.2.7 Transistor hFE Test

Range Test Range
Display reads approx. hFE value
hFE (0~1000) of transistor under test
(NPN and PNP Type )

3.2.8 Diode test and Audible Continuity Test

Range
Description
Display shows approximate
forward Voltage of diode.
Built-in buzzer sounds if
resistance is less than 80Ω.
Overload protection: 250V DC/250Vrms AC
Accuracy
±(0.5% of rdg + 8 digit )
±(0.5% of rdg + 8 digits)
±(0.5% of rdg + 8 digits)
±(0.5% of rdg + 8 digits)
±(1.5% of rdg + 8 digits)
Accuracy
±(1.5% of rdg + 10 digit )
±(1.5% of rdg + 10 digits)
±(1.5% of rdg + 10 digits)
±(2.5% of rdg + 10 digits)
Accuracy
±(0.8% of rdg + 8 digits)
±(0.8% of rdg + 8 digits)
±(1.2% of rdg + 8 digits)
±(2.0% of rdg + 10 digits)
Accuracy
±(1.0% of rdg + 8 digits)
±(2.0% of rdg + 8 digits)
±(3.0% of rdg + 15 digits)
Accuracy
±(1.2% of rdg + 15 digits)
±(0.8% of rdg + 8 digits)
±(0.8% of rdg +8 digits)
±(0.8% of rdg + 8 digits)
±(0.8% of rdg + 8 digits)
±(2.5% of rdg + 15 digits)
±(5.0% of (rdg-10rdg + 30 digits)
Accuracy
±(2.5% of rdg + 25 digits)
±(2.5% of rdg + 20 digits)
±(2.5% of rdg + 20 digits)
±(2.5% of rdg + 20 digits)
±(2.5% of rdg + 20 digits)
Test Current / Voltage
Best Current approx 10µA
Voltage approx 3V
Test Condition
Forward DC current approx 1.5mA
Reversed DC voltage approx. 3V
Open circuit voltage approx 3V
