DM Engineering SE1822 User Manual

The "ultimate" remote control and automation interface module for the sage-endec model se1822 and 3644 digital e.a.s. encoder/decoder

Advertisement

Quick Links

USER GUIDE

The "ULTIMATE" REMOTE CONTROL AND
AUTOMATION INTERFACE MODULE
FOR THE SAGE-ENDEC MODEL SE1822 and 3644 Digital E.A.S.
ENCODER/DECODER
Software Version 1.4
Rev. 2
DM Engineering
2174 Chandler St.
Camarillo, CA 91345-4611
805-987-7881 800-249-0487
www.DMEngineering.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SE1822 and is the answer not in the manual?

Questions and answers

Summary of Contents for DM Engineering SE1822

  • Page 1: User Guide

    USER GUIDE The "ULTIMATE" REMOTE CONTROL AND AUTOMATION INTERFACE MODULE FOR THE SAGE-ENDEC MODEL SE1822 and 3644 Digital E.A.S. ENCODER/DECODER Software Version 1.4 Rev. 2 DM Engineering 2174 Chandler St. Camarillo, CA 91345-4611 805-987-7881 800-249-0487 www.DMEngineering.com...
  • Page 2 Overview: The “Ultimate” EAS remote Control and Automation Interface for the Sage-Endec SE1822 and 3644 Digital E.A.S. encoder/decoder has the following features: A large backlit LCD scrolling display showing date, time, and alert • details, just like the LED sign display, and the unit has a small footprint for crowded studio workspaces.

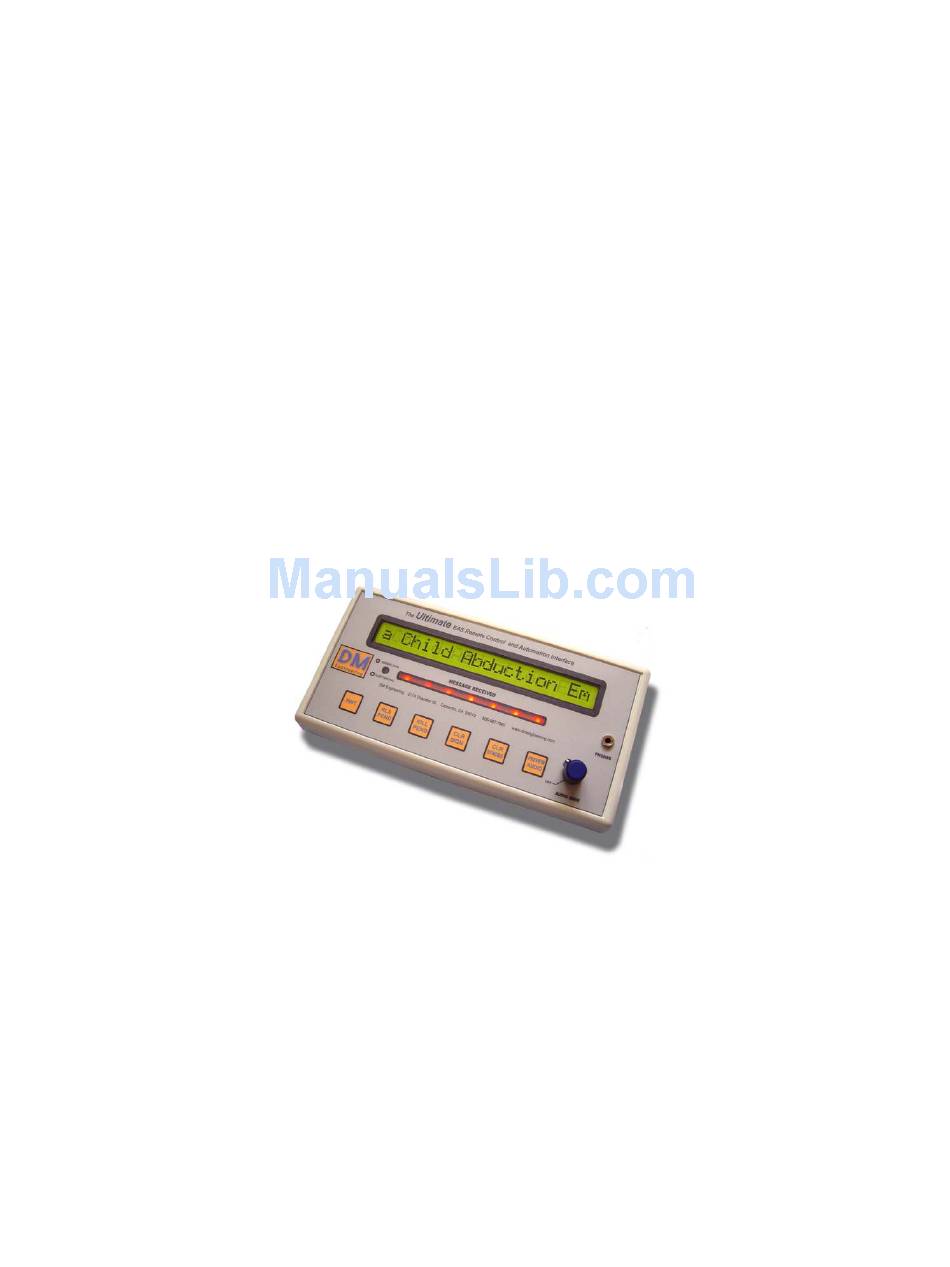

  • Page 3 The Ultimate Remote Control: Front panel The Ultimate Remote control front panel has 7 operator controlled functions and an earphone jack. 1. RWT: Pressing this button initiates a Required Weekly Test. 2. RLS PEND: Pressing this button will release the alert that is shown active and pending on the LED display.
  • Page 4 and actual operation of the Endec. A red “Sending Data” LED is provided as feedback to the operator that his command is being sent. Simultaneous pressing of the remote pushbuttons and the Sage-Endec front panel controls are disallowed. Once commands are issued either by the Remote Control or the front panel of the Endec, the other is locked out for the duration of that command set.
  • Page 5 2. The Interface Module may be attached to the COM 2, 3 or 6 DB9 connectors on the rear of the SE1822 Endec. Secure the Module to the Endec using the captive screws provided as a part of the Module. The Ultimate operates at 9600 baud, and COM 2 and 6 are set to 9600 baud by default and cannot be changed.
  • Page 6 have to configure the port to 9600 baud as the default setting is 1200 baud. Configure the ports using menu.devices.port.baud. Select another available COM port for LED sign operation by selecting; menu,devices.port.device.type.LED sign and connect the DB9 pigtail to this port. If the COM 3 port is selected, you may have to configure the port to 9600 baud as the default setting is 1200 baud.
  • Page 7 7. Install the Ultimate Remote Control at its desired location, connect the line out connection (if desired) and connect the power supply. The backlight will come on, the strobe may flash once and “DM Engineering” along with the software version number will momentarily be displayed. Now connect the CAT5e data cable.
  • Page 8 Initiate a warning of some type (Tornado, Earthquake, Etc.) from the Sage-Endec front panel. (This cannot be done from the Ultimate Remote Control). Again the LCD sign will display the warning message and the strobe will flash orange. Clear the sign on the Ultimate Remote Control.
  • Page 9 Preview Audio Internal Speaker: 1 1/8” Earphone output: .2 W, variable gain with off switch Earphone Jack: ¼” Stereo (wired for mono), disconnects internal speaker when used Line Output: Balanced 600 ohms, 3.5mm mono rear panel jack Connection Method: 50' Category 5e cable with RJ45 connectors, supplied DB9 interface module with DB9 pigtail and Endec/Automation control interface screw terminal connections Sage-Endec Interface: Serial RS 232, 2 Endec ports required...
