Gas Nouveau 900-1100-1250-1500 SF

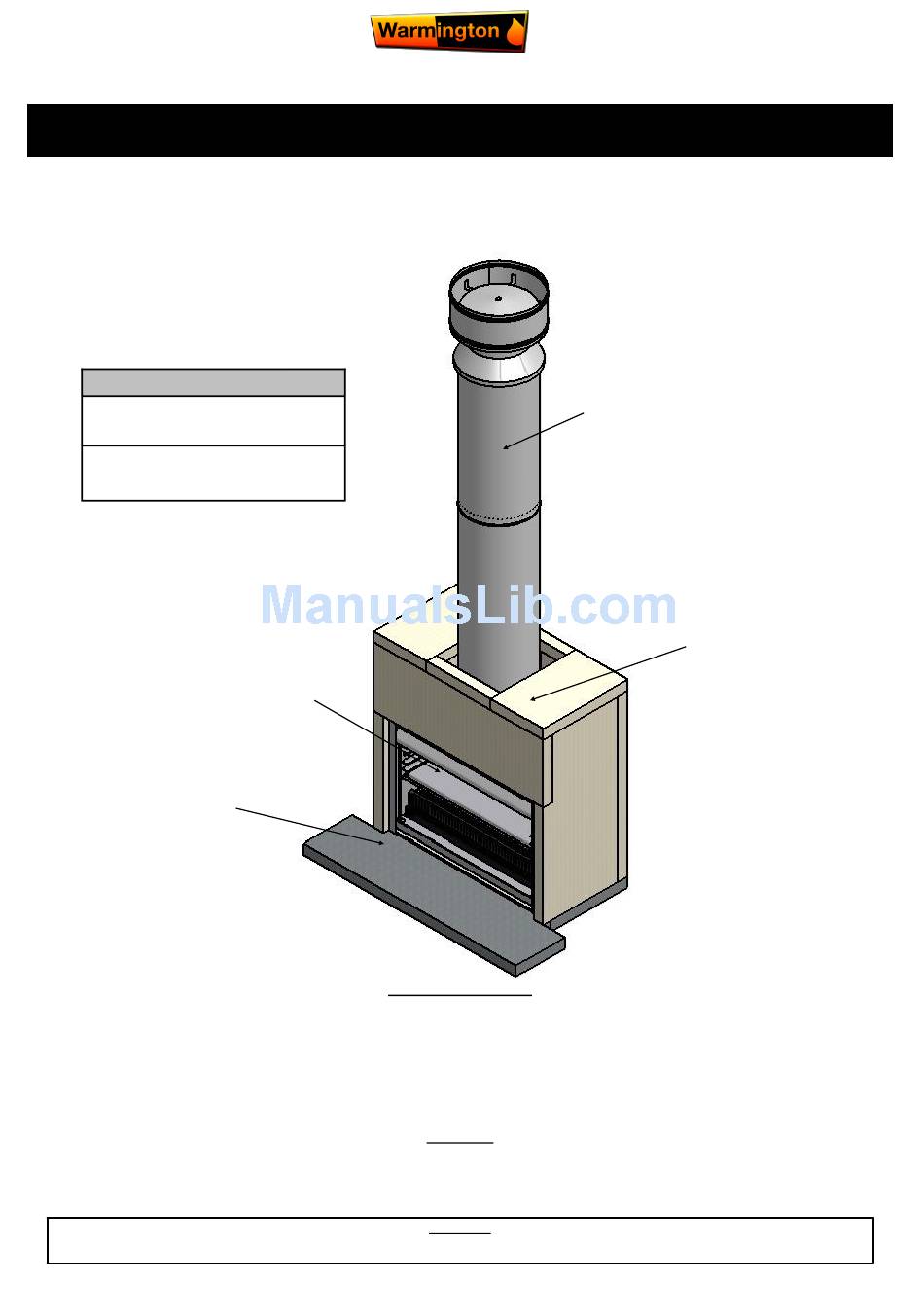

Outdoor Gas Cooking Fire - SG Gas Burner Only
Important Notes:
All load bearing structures are
to be engineered to carry load.
Fire for outdoor use only,
NOT to be installed indoors.
Warmington Outdoor Nou-
veau Gas Fire & Stainless
Steel cooking tray.
Hearth
Fire and flue system installation, and instructions to comply with NZS 5601.1:2013,
3645.1(Int):2010, 3645.2(Int):2010, 5266:2014, 2918:2001.
The fireplace is constructed and tested to comply with NZS 4558(int):2013 "Decorative gas log and other fuel effect appliances".
Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace.
The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.
A licenced certified gas fitter and licenced electrician are required to run power and gas supplies as required to the unit and any commissioning as part of the
installation process.The heater must be installed according to these instructions and in compliance with all relevant building, gas fitting,
Read all the instructions carefully before commencing the Installation. Failure to follow these instructions may result in a fire hazard and void the warranty
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi-
1
Installation Instructions
Related documents
See www.homeheat.co.nz/members for a certified NZHHA SFAIT Installer in your area.
electrical and other statutory regulations.
All Dimension are in mm....... Copyright on all products and Specifications ©
Minimum 2.4m Fluekit
Installation
IMPORTANT
23 April 2018
Warmington
Hebel Heat Cell
(not load bearing)
Advertisement
Table of Contents
Related Manuals for Warmington Gas Nouveau SN 900
Summary of Contents for Warmington Gas Nouveau SN 900
-
Page 1: Installation Instructions
The fireplace is constructed and tested to comply with NZS 4558(int):2013 “Decorative gas log and other fuel effect appliances”. Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace. Installation The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician. - Page 2 Ensure Cowl and Bird Protection is clean and replaced. Visually Inspect Fireplace and Flue System Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
- Page 3 Timber framing requires no clearances with Hebel sur- Adaptor & Bolts round. Packed by Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
-
Page 4: Important Note
Visit the Warmington website for ‘Hebel’ instruction PDF sheet at www.warmington.co.nz Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©... - Page 5 Solid Plaster to minimise the chance of the Solid Plaster cracking. (See your Solid Plasterer for correct materials and applications). Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
- Page 6 20 Series 190mm Block Firebox to be rebated min 40mm Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
- Page 7 All load bearing structures are to be Engineered to carry load. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
- Page 8 (See your Solid Plasterer for correct materials and applications). Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
- Page 9 25mm gap around the Liner with a “Venting Flashing Cone-Spider” can be used. Ref to Page 11- 12 in this Specification . Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
- Page 10 Date of Report 04/1039 July 2004 04/1040 July 2004 04/1041 July 2004 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
- Page 11 ‘No Insulation ‘Insulation under under flashing’ flashing’ VENTING THROUGH FLASHING Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
- Page 12 Option X – Singled Lined Flue System Option Y – Double Lined Flue System Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
-
Page 13: Mantle Clearances
For Combustible floors Minimum Hearth of 380mm (A) must be maintained. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©... - Page 14 This Appliance must be flued to the outside atmosphere. All Warmington Fires must be Installed with a minimum of 3.6m of Approved Warmington Gas Flue and Liners . (Flueless Gas Fires Do Not Have Flue) GAS TYPE All Gas Fires shall operate safely on the Gas Type specified on the Appliance and shall comply with the requirements of The Gas Act 1992 .
- Page 15 Bottom Total SG 700 SG 780 SG 900 SG 1100 Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
-
Page 16: Important Notes
Pilot light may be extinguished by switching Manual Ignition Switch to 'OFF' before closing cover. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©... - Page 17 3 Flame Pilot in Assembled State Correct Operation of 3 Flame Pilot Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
- Page 18 23 April 2018 POINTS OF SAFTEY—To the Customer /Home-Owner Your Warmington Gas Decorative Fire operates on the principle of dual radiant and convected heat. Therefore it is important to observe the following precau- tions associated with any heating appliance or open fire.
- Page 19 Industries 1994 LTD PO Box 58652, Botany 2163,, Auckland www.warmington.co.nz Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notifi- All Dimension are in mm……. Copyright on all products and Specifications ©...
