SIP Base Audio Box
(1) Introduction
WatchNET's SIP based Audio Box provides a dedicated high performance digital amplifier, best suited to
broadcast announcements or play background music. Built-in 3.5 Watt amplifier can drive indoor /
outdoor speakers for paging and can work as a centralized music distribution system to play background
music and advertisements. Easy web based interface to configure the unit with any SIP based telephone
system.

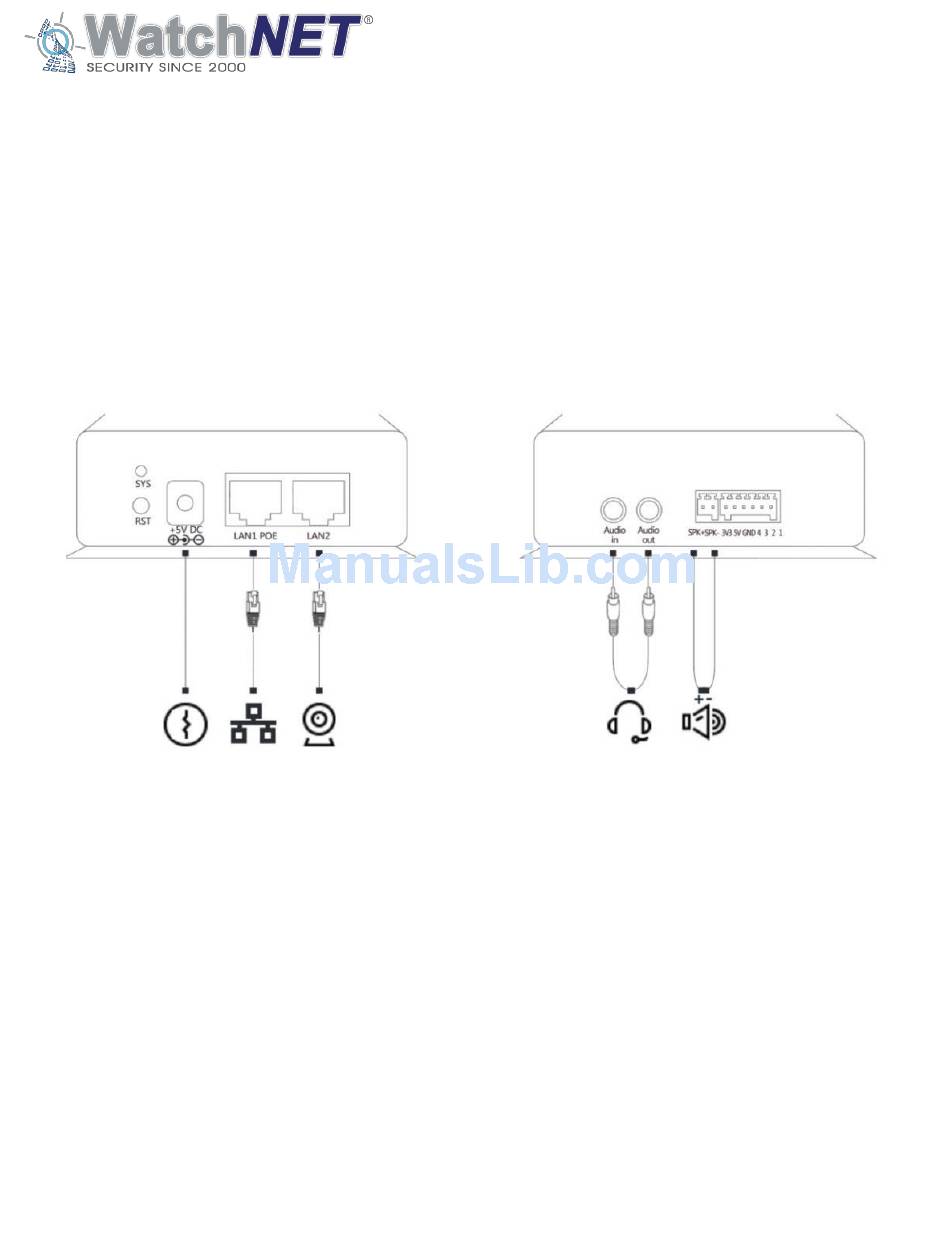

(2) Wiring
(3) Power
The Video Door Station supports POE (Power over Ethernet) 5V DC
(4) Powering up SIP Base Audio Box
a) The Default IP of the audio box is: "192.168.119.110"
b) To configure the audio box you can use any web browser and just type in the default IP on the
address bar
c) Then configure the network base on the router and then SIP account, the default Username and
Password is "admin" & Password: "admin"
AVCNAB Quick Guide
Advertisement
Summary of Contents for WatchNet AVCNAB
- Page 1 AVCNAB Quick Guide (1) Introduction WatchNET’s SIP based Audio Box provides a dedicated high performance digital amplifier, best suited to broadcast announcements or play background music. Built-in 3.5 Watt amplifier can drive indoor / outdoor speakers for paging and can work as a centralized music distribution system to play background music and advertisements.
- Page 2 I cannot login via web Please assign a same IP range on the computer first before logging in via web Note: if any solutions above did not work please contact WatchNET Technical Support phone number +1-866- 843-6865 or visit our website @ www.watchnetinc.com CANADA:...
