Summary of Contents for SPT SPT2 GPS

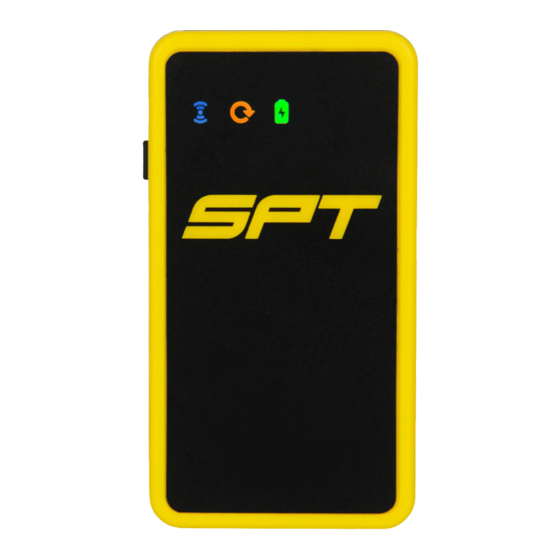

- Page 1 SPT2 GPS & GAMETRAKA USER GUIDE SPT GPS...
- Page 2 (Fig 2). Record a performance by securing the GPS in the SPT chest piece during physical activity.* • The GPS is recording data when the GNSS light turns green, the battery light turns green and the connectivity light flashes (Fig 3).
- Page 3 USE THE BRIDGE APPLICATION Bridge is an app that links computers to the GPS. This process needs to be completed in order to view, access and monitor the data recorded in the previous step. Click here to download Bridge and install it on your computer. (Compatible with Windows 10+ or Mac OS X v10.12+). Plug the GPS into a computer (make sure the GPS is on) and open Bridge. i. Click Download - this will save a data file (carrying a .gps filename extension) into a folder on your desktop called ‘SPT GPS Data’. ii. Once the download procedure has finished, erase the GPS to keep memory from getting full. Create an account on www.gametraka.com (see next step). SIGN UP TO GAMETRAKA Go to www.gametraka.com and fill out the form on the page. If you have an invite code, add the code to join a team. Click Sign Up on the right and fill out the additional information on the next page to continue. GAMETRAKA - GETTING STARTED...
- Page 4 UPLOAD A FILE TO GAMETRAKA Click Upload in the middle of the top navigation bar. Click Upload File and select the .gps files on your computer that have been created by the Bridge application. It is possible to select multiple files. The files will begin uploading in the panel on the left of the screen. • They will go through 3 states - Uploading, Processing, Saving. • Once Saving has completed, a short summary of the file will appear in the middle panel. The following steps show how to assign the files to a Player and an Event. ASSIGN A FILE TO GAMETRAKA Locate the file in the middle panel of the page. Select the Player that this file is for. • As a Manager you can select any player in your Team. •...
- Page 5 TEAMS EXPLAINED GameTraka allows players to be compared with one another. Every player in a team should have their own individual account (even in cases where the number players in a team exceed the amount of GPS units). There should not be multiple accounts per GPS device. Team coaches or managers are able to upload GPS files into other user accounts that are in their team. Once each player has their own account they will be able to view the data for specific players. Their data will be saved and will always be attributed to them. Coaches/managers may also be administrators for more than one team. As a player, you can add your own performances in all the teams that you belong in. GAMETRAKA - TEAM MANAGEMENT...
- Page 6 CREATE A TEAM IN GAMETRAKA Using the navigation at the top, click Teams. Navigate to Create Team. Fill out the information and Submit. Add a team manager (administrator). You need to be the team manager to add more managers, here are the steps: i. Click Teams in the top menu. ii. Click on the team you manage and click Settings on the left-hand side of the page. iii. Scroll down to the Manager Invite section. iv. Enter the email address of the manager you would like to invite. Click Invite. It is also possible to make a player a manager by going to the Management table, and clicking the X under the Manager field, for the player you want to assign. GAMETRAKA - TEAM MANAGEMENT...
- Page 7 ADD TEAM MEMBERS IN GAMETRAKA GameTraka works best when each player in your team has their own account. Players can be invited to join teams via email or an invite code. To invite via email or invite code: Go to your Team Page by clicking My Team in the top menu. In the centre column, there is a Team Summary box with your team information. In the left-hand side column there is a Invite players box that has your team information in it. To invite players with an invitation code, copy the code (4NLGPZ in the example below) and give that to your players. To invite players via email, enter the players’ email in the E-mail box. GAMETRAKA - TEAM MANAGEMENT...
- Page 8 PERFORMANCE IN GAMETRAKA My Performances is a personal summary of activity. History: A list of performances over time. Clicking on the buttons at the bottom of the graph will show Distance, Intensity, Top Speed or Zone 6. Clicking on the bars illustrate a detailed breakdown. Personal Bests: This shows personal bests for Total Distance, Intensity, Top Speed and Zone 6. These values are updated every time a performance is uploaded with a better score. ADD SEGMENTS IN A PERFORMANCE GameTraka allows segments to be added either automatically or manually. Adding segments automatically is useful if you are unsure about when a game started or stopped - the tools will make an estimate which can then be adjusted later. This is the fastest way to add segments to an event. Adding segments manually allows complete control over where game halves (or quarters, or periods) start and end. To add segments automatically: Navigate to the Events page. Choose a team and click on the event of the performance you want to create a segment for. Click Generate Segments and GameTraka will use algorithms to determine where segments should be created for your event. GAMETRAKA - PERFORMANCES...
- Page 9 To add segments manually: Navigate to the details of any performance and click on a performance. On the left side bar, click Create Segments. An editing tool will open (Fig 6) i. Click Add a New Segment to create a custom segment. OR click Quick Add to create a segment of a pre-determined size. Creating a new custom segment will highlight the whole performance. i. Change the selection by dragging either end of the selector. OR edit the ‘Start’ or ‘End’ times manually. An editing window will open (Fig 7). ii. Ensure the segment has a name. iii. Click Finish when you’re done.
- Page 10 Zone Running Distance travelled in a relevant speed zone or band. Work Rate Total distance travelled, relative to performance time. Impacts Moderate-Heavy (5.0-8.0 G Forces) / Heavy-Severe (+8.1 G Forces). Hard Running Distance travelled at a velocity of 4.5 m/s or greater. 5-minute Intervals A break down of performance in 5-minute blocks of walking, jogging and running. Heat Maps Time spent in particular areas of the field or ground. For detailed descriptions on each metric, click here. For troubleshooting and additional SPT GPS and GameTraka support, click here. GAMETRAKA - METRICS...
- Page 11 SPT Global Headquarters PH: +613 9415 7400 E: info@sportsperformancetracking.com A: 1/168 Hoddle Street Abbotsford, Melbourne, Victoria, Australia SPT GPS...
