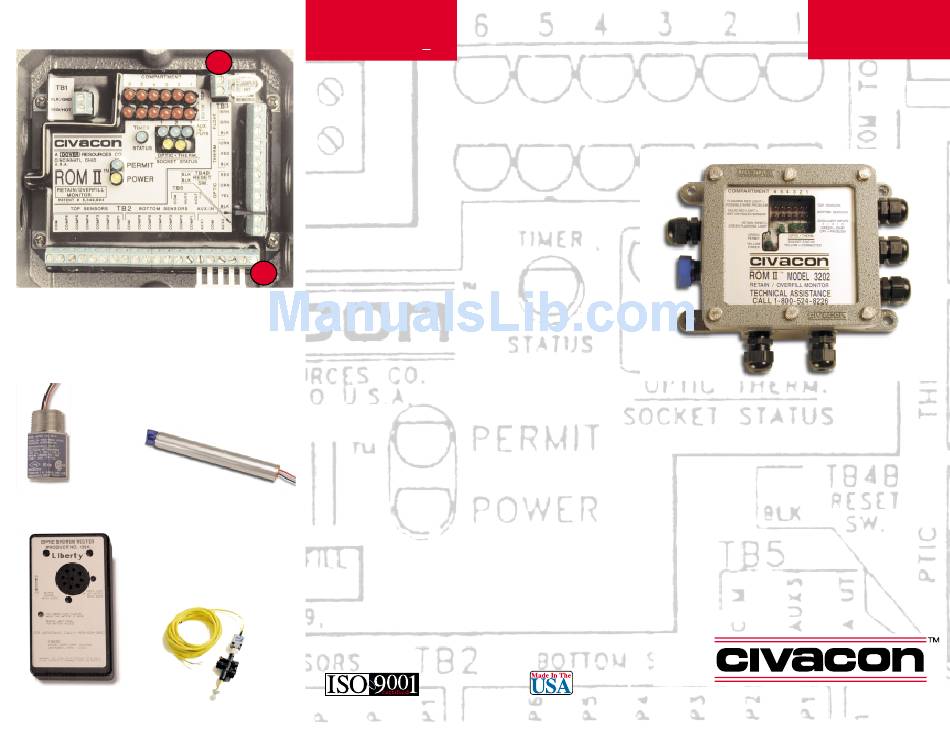

Other Components:
FIGURE 1
A) Retain Jumper
B) Auxiliary Inputs Jumper
Terminator
Optic Sensor
Optic System Tester
Air Interlock
A
B
Civacon World Headquarters:
4304 Mattox Road
Riverside, MO 64150
816/741-6600
Fax: 816/741-1061
100 SW
www.civacon.com
Switch
Technical Support Hotline:
800-5CIVACON (800/524-8226)
techsupport@civacon.com
©2002 Civacon
$5
00 US
CK-00107 • FMI1K4/02 • H52402PA
Civacon
ROM II
Troubleshooting Guide
Advertisement
Table of Contents
Summary of Contents for Civacon ROM II
-
Page 1: Troubleshooting Guide
Other Components: 00 US Civacon ROM II Troubleshooting Guide FIGURE 1 A) Retain Jumper B) Auxiliary Inputs Jumper Terminator Optic Sensor Civacon World Headquarters: Optic System Tester 4304 Mattox Road Riverside, MO 64150 816/741-6600 Fax: 816/741-1061 100 SW www.civacon.com Air Interlock... - Page 2 STATUS: STATUS: Ready to Load Solid red LED/Light on top sensor STATUS: All top red LED/Lights are flashing ACTION: Check compartment for wet sensor. ACTION: Check common wire. Check for Remove sensor wire corresponding with LED. low voltage at Terminal Block (TBI). Substitute with wire from nearest working sensor.
Need help?
Do you have a question about the ROM II and is the answer not in the manual?
Questions and answers
My thermistor light is on and I can't load Could it be the monitor is bad
If the thermistor light is on and loading is not possible, follow these troubleshooting steps from the Civacon ROM II manual:
1. Check the compartment for a wet sensor. A wet sensor may trigger the thermistor light.
2. Inspect the common wire. Ensure there is no issue with the wiring.
3. Check for low voltage at the Terminal Block (TBI). The voltage should be between 11-16 volts.
4. Substitute the sensor wire with a wire from a nearby working sensor.
- If the thermistor light remains on, the monitor may be faulty and should be replaced.
- If the substituted wire causes the light to turn on, the sensor or wiring needs replacement.
Based on this, the monitor is only faulty if the thermistor light remains on after replacing the sensor wire with a known working one.
This answer is automatically generated
