Summary of Contents for GFS 790 000

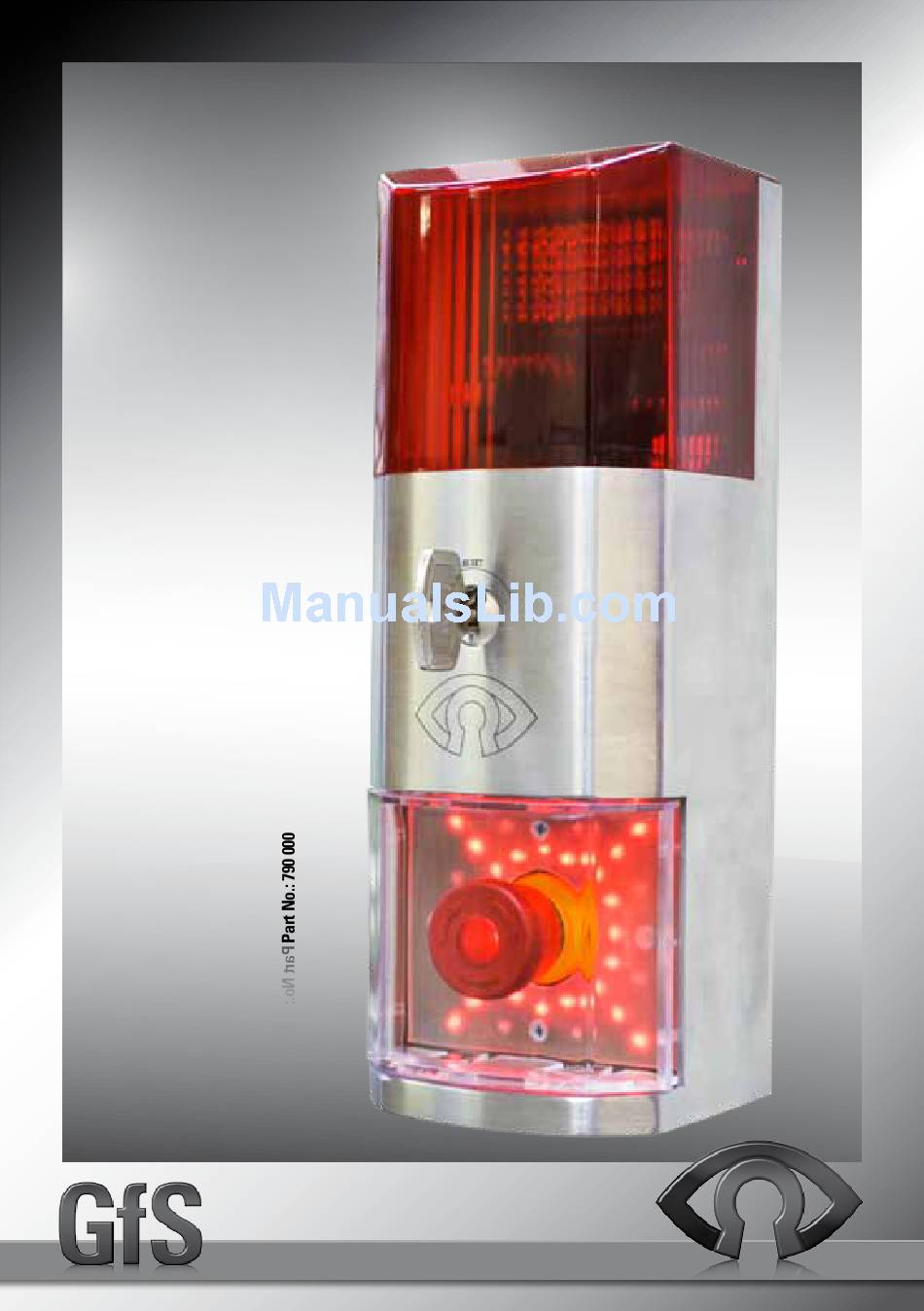

- Page 1 Assembly Instruction GfS Door Terminal Safety on doors...
-
Page 2: Installation
Part No.: 790 000 GfS Door Teminal INDROTUCTION/SAFETY INSTRUCTION INSTALLATION The GfS Door Terminal is a compact device to steer up to IMPORTANT: 2 holding magnets which are mounted on emergency exit Connect the GfS Door Terminal completely before doors. It includes emergency exit switch, flash light, buzz- applying voltage. -
Page 3: Technical Data
The warenty closed expires after a third-party repair. • 2x sabotage alarm • 2x predefined brightnesses of LED Service • 1x fire alarm control system (with bridge normal In case of a system failure or a defect GfS Door Terminal operation) please contact the following address: • 1x emergency exit switch with internal fail safe contacts • 1x reserve input 790000_Ai_GfS-Door_Terminal_1112_GB... - Page 4 Part No.: 790 000 GfS Door Teminal DIMENSION 41.98 790000_Ai_GfS-Door_Terminal_1112_GB...
-
Page 5: Terminal Diagram
Part No.: 790 000 GfS Door Teminal TERMINAL DIAGRAM + 24 V FACS FACS 12 V – 24 V NO 1 Res 1 NO 2 ext. sir. Mag – ext. flash Mag + Abb. Function Signal Operating voltage minus Ground +24V Operating voltage plus +24 V FACS Fire alarm control system... - Page 6 (DC connected) as well as magnet 1 and 2. Opening time delay At the end of the opening time delay (5 sec. preset, adjustable) the green LEDs blink slowly twice and the GfS Door Terminal is activated again. Precondition: Holding magnet and door contact are closed. green When the door is opened during the opening time delay and no opening contact active, the status changes directly into “Waiting for door too be closed”...
- Page 7 Part No.: 790 000 GfS Door Teminal FUNCTIONS Permanent opening Permanent opening is active as long as Input “Remote” is activated. Permanent opening with key switch: Turn key switch clockwise for at least 5 sec., till LEDs expire. Remove key. pulse LEDs and emergency exit switch illumination are pulsing.
- Page 8 Part No.: 790 000 GfS Door Teminal FUNCTIONS Intrusion, sabotage In case that one of the two feedback loops of the holding magnets or door contacts are interrupted, an intrusion alarm is triggered. LEDs change from red to orange. The incident message relay is deactivated, the external siren is orange activated.
- Page 9 Part No.: 790 000 GfS Door Teminal PROGRAMMING Programming Turn key switch to the right (create status open) Hold key switch left at least for 5 sec. till orange ring shines Turn key switch to the left, release Turn briefly key switch to the left. Repeat this in order to enter other programming modes...
- Page 10 Part No.: 790 000 GfS Door Teminal PROGRAMMING Silent alarm Execute programming steps 1-3 Execute step 4 once. (turn to the left) The LED cross shines orange. Execute programming step 5 (turn to the right). Orange cross changes into green (sirène will be triggered in case of an alarm) orange green Execute programming step 6 once in order to change to silent alarm (turn to the right). The LED cross shines red. With any further execution of programming step 6 the setting store/leave programm changes from green/accustic alarm to red/silent alarm.
-
Page 11: Spare Parts
Part No.: 790 000 GfS Door Teminal SPARE PARTS Replacement cover for flash-light Part No. for the flash-light of the GfS Door 799 000 Terminal, red Replacement cover for emergency exit switch Part No. for emergency exit switch of the GfS... - Page 12 Stamp GfS – Gesellschaft für Sicherheitstechnik mbH Tempowerkring 15 · 21079 Hamburg · Fon 0 40-79 01 95 0 · Fax 0 40-79 01 95 11 · info@gfs-online.com · www.gfs-online.com...
