Summary of Contents for Metal Craft 0226-00

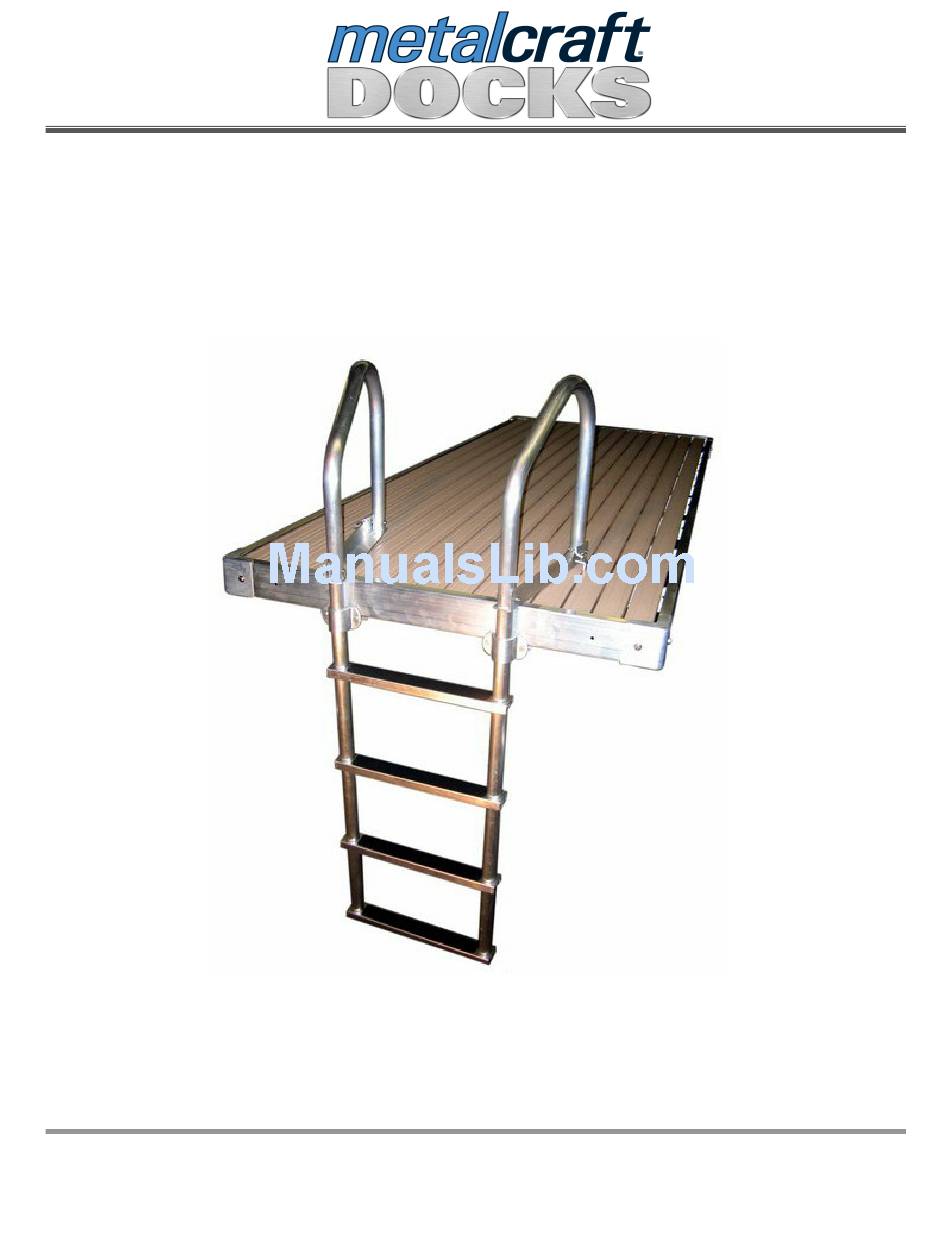

- Page 1 Installation Manual Dock Ladder MCD p/n 0226-00 156 Burton Street Painesville, Ohio 1.800.989.DOCKS (3625) ● ● ● 440.286.7135 Fax: 440.286.7134 info@metalcraftdocks.com www.metalcraftdocks.com ● ● ● (Rev 12/2016)
- Page 2 ® Metal Craft dock modules. The Dock Ladder can be installed on the side of Metal Craft Docks with the Side Mount Installation Kit (p/n 0225-02) sold separately. The dock ladder can be installed on docks made from wood, vinyl, PVC, etc. using additional hardware not supplied - See section D for instructions.
- Page 3 Insert the arms of the ladder into the lower section containing the rungs and bolt together with included, separate hardware kit. Open the Metal Craft hardware kit and lay out the parts from the installation kit detailed on previous page.
- Page 4 Step #4 - Install the Swim Ladder Clamp, Swim Ladder Mounting Angle and the 5/16” x 2” HHCS as shown. Loosely tighten for now. Step #5 - On the underside of the deck module, loosely install the self-clinching nut to the 5/16"...
