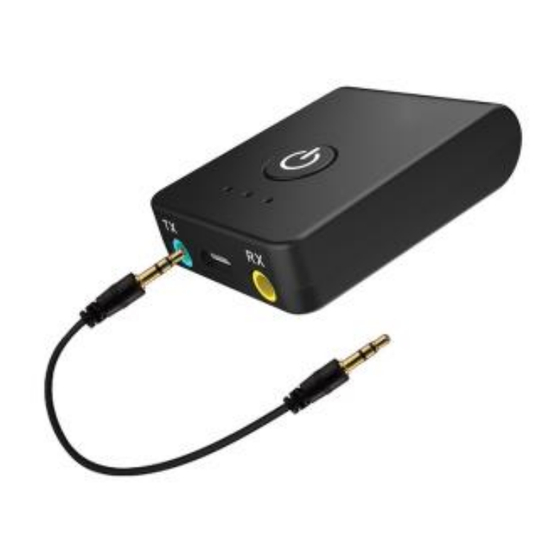

AV Link BTTR1 User Manual

An amazing and compact Bluetooth device that will open a new world of wireless audio enjoyment both at home or on the move.
Simply connect using the audio cable provided to your TV, projector or other audio device and stream wirelessly to Bluetooth
headphones, speakers or sound-bars. Alternatively connect to a set of traditional headphones, amplifier or in-car entertainment system
and you can then pair with your smartphone, tablet or other Bluetooth devices. With Multi-point support for shared listening, a 10m
transmission/reception range and in-built rechargeable battery providing up to 8 hours playback from a single charge, this handy little
device really is your perfect Bluetooth partner!
• Easily connects to any device with a 3.5mm audio input or output
• Transmitter will connect Bluetooth headphones, speakers or sound-bars to LED TV's and projectors
•
Receiver will connect smartphones, tablets and MP3 players to headphones, amplifiers or car audio systems
• Multi-point Bluetooth capability allows you to connect to 2 devices at the same time, ideal for shared listening
• Wireless Bluetooth range of up to 10m
• Transmits audio for up to 8 hours on a single charge
• Receives audio for up to 6 hours on a single charge
• Ultra-compact, lightweight design with rechargeable battery inside

Technical Specifications

Bluetooth version:
Bluetooth profile:
Bluetooth range:
Battery:
Operating time:
Charging time:
USB lead length:
Audio lead length:
Dimensions:
Weight:

Overview

Bluetooth® 2-in-1 Audio Transmitter &
V4.2 with multi-point support
A2DP, AVRCP
Up to 10m
160mAh Lithium-Ion
Up to 8 hours (transmit), 6 hours (receive)
Approx. 2 hours
1m
1m
48 x 35 x 12mm
18g

Powering on/off:

Press and hold the Multifunction button until the LED light goes blue. To
power off, press and hold the Mulitifunction button again until the LED light
blinks red indicating the unit is power down mode.

Pairing with your device in Transmission mode:

Insert the 3.5mm audio lead provided into the socket marked TX and the
other end into the piece of equipment you wish to send the audio from (i.e
the headphone socket on a TV, projector, stereo system or MP3 player). Press
and hold the Multifunction button until the LED blinks blue quickly, this is to
indicate the unit is now in Bluetooth transmission pairing mode. Set your
Bluetooth headphones, speakers or sound-bar to pairing mode and wait for
the devices to connect. Please be aware that due to the different protocols of
some devices the connection time can be a few minutes. If after this time you
are still unsuccessful, turn off both devices and try again. Once connected
successfully, a voice message can be heard and the LED on the unit blinks
blue intermittently.
Receiver
BTTR1
Item ref: 100.595UK
User Manual
