PowRyte 8503971 User Manual

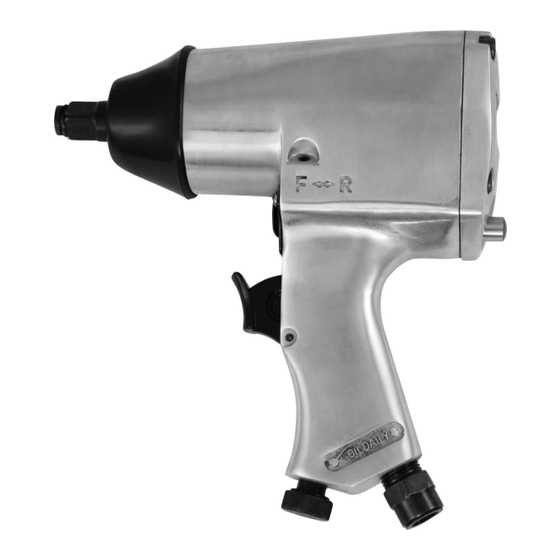

1/2 in. dr air impact wrench
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

8503971
1/2 in. dr Air Impact Wrench
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8503971 and is the answer not in the manual?

Questions and answers

Summary of Contents for PowRyte 8503971

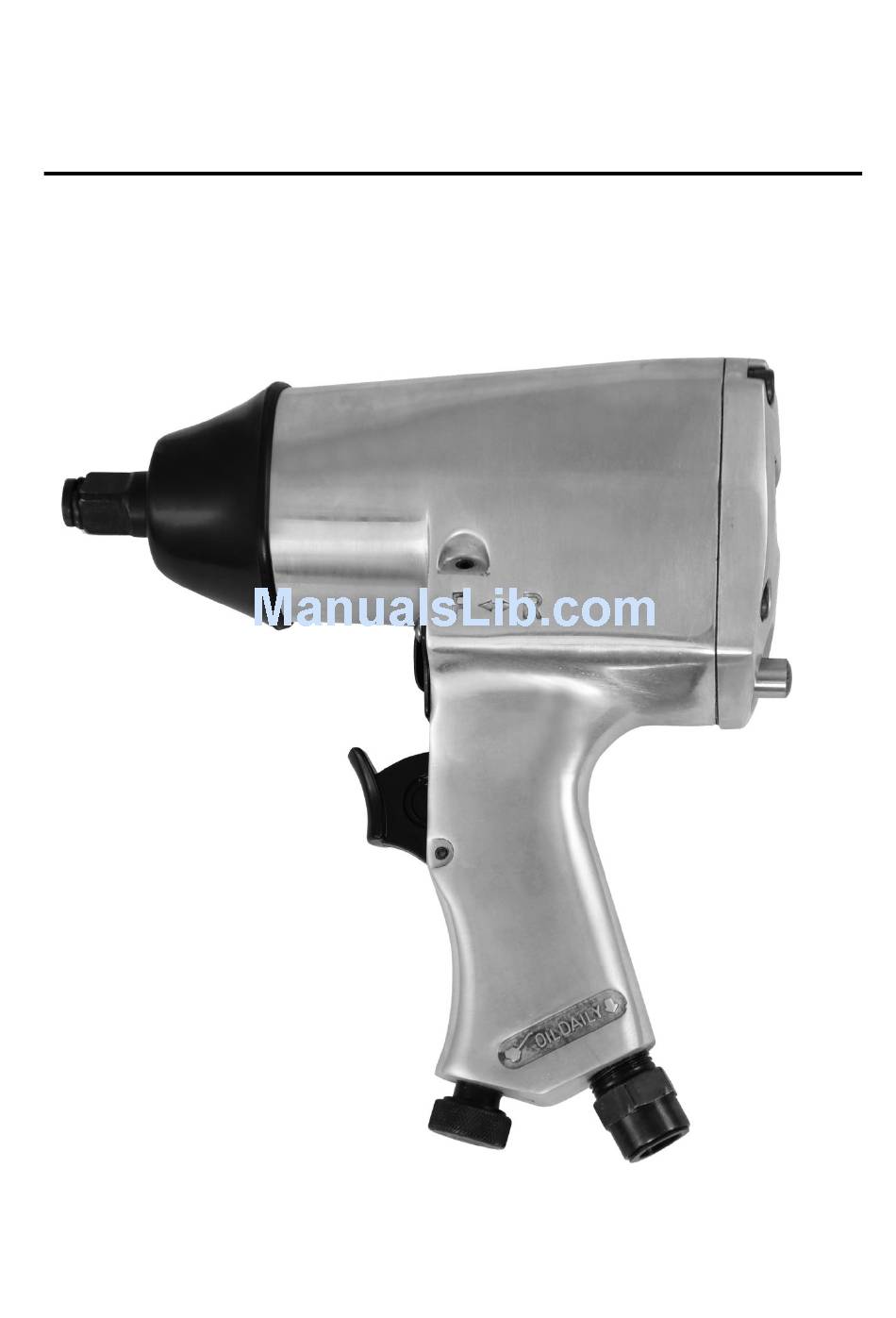

  • Page 1 8503971 1/2 in. dr Air Impact Wrench User manual...

  • Page 2: Technical Data

    ※ Technical Data Square drive……………………………………………………………………………………1/2”(13mm) Free speed………………………………………………………………………………………7,000rpm Max torque……………………………………………………………………………………..230ft/lb(310N.m) Avg.air consumption…………………………………………………………………………..4cfm(114l/min) Operating pressure……………………………………………………………………………...90psi(6.3bar) Air inlet size…………………………………………………………………………………….1/4” Weight…………………………………………………………………………………………...5.40Lbs(2.5kgs) A weighted sound pressure level………………………………………………………………. 84.4dB(A) Sound power level………………………………………………………………………………95.4dB(A) Vibration in the handle………………………………………………………….…….………..2.6m/s ※ Important Safety Rules 1. Follow all workshop safety rules, regulations, and conditions when using wrench. 2.

  • Page 3: Air Supply

    Air supply 1. Ensure wrench air valve (or trigger) is in the “off” position before connecting to the air supply. 2. It will require air pressure of 90psi, and air flow according to specification. WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the wrench. Too high an air pressure and unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage or personal injury.

  • Page 4: Loading And Operation

    Loading and operation WARNING: Ensure you read, understand and apply safety instructions before use. 1. Only use impact sockets which are specifically designed for use with impact wrench. 2. Connect the wrench to the air hose . 3. Place the socket over the subject nut and depress the trigger to operate the wrench. 4.

  • Page 5: Troubleshooting

    ※ Trouble Shooting The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it. WARNING: If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. Only a qualified persons or an authorized service center can perform repairs or replacement of tool.

  • Page 6: Exploding View

    ※ Exploding view ※ Spare part list No. Description Description Description Description Protecting Oil seal Protecting Air Regulator Rubber Rubber Housing Front End plate Valve Sleeve Bolt Bolt M8×6 Rotor blade Reverse Valve Pin 3×14 Anvil Bushing Rotor O-ring 6.7×1.8 Trigger Anvil Collar Pin 3×10...
