Summary of Contents for Bueno Electric HFD8M

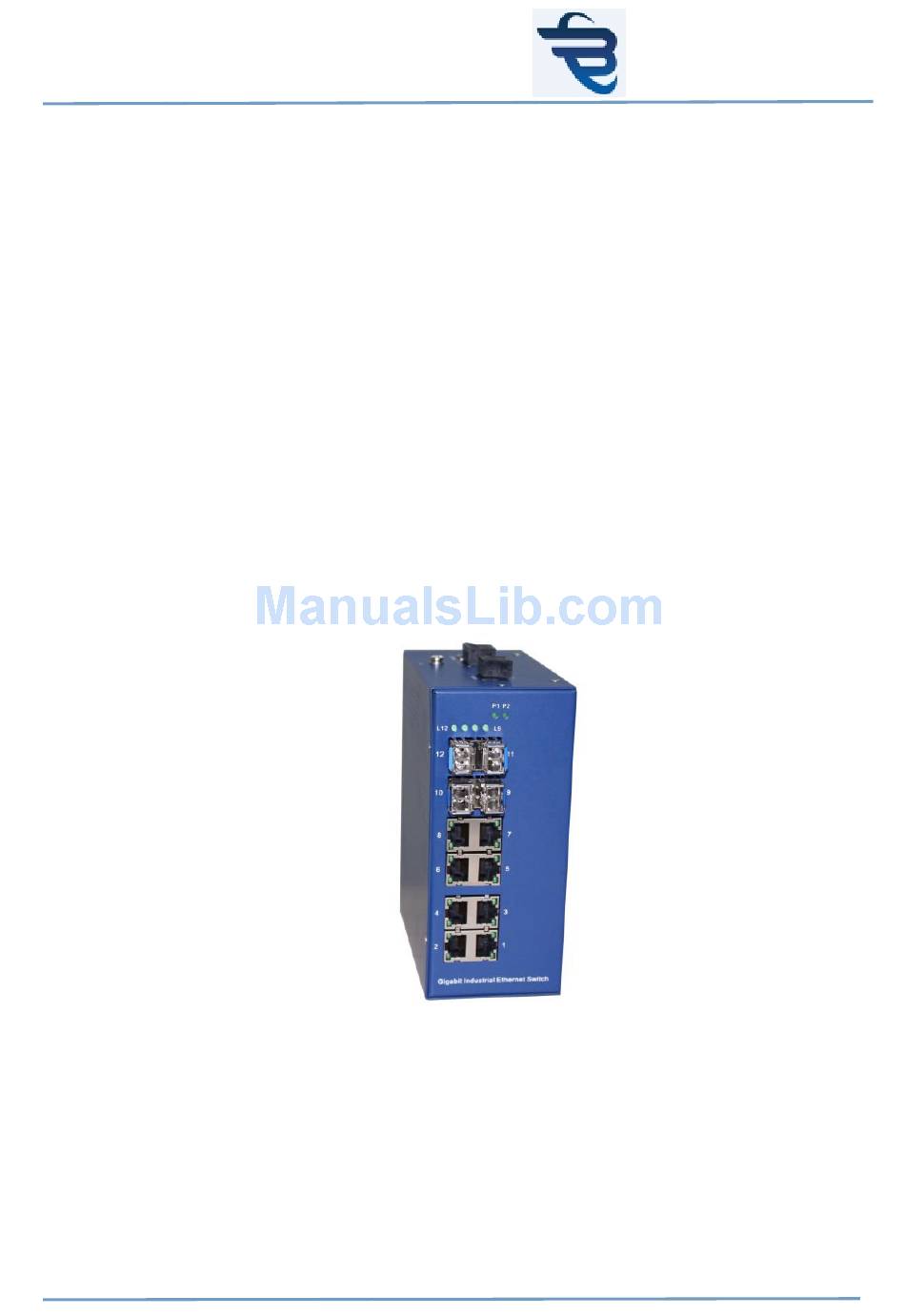

- Page 1 BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com Managed Ethernet Switch User’s Manual...
- Page 2 Information Coding: UM00D908 Version: V1.1 Product version: all Product Name: Managed Industrial Ethernet Switches on DIN Rail and Rack. Applicable to: Technical Support Attention: This document will be updated on regular bases due to version upgrades or other requirements. Unless otherwise agreed on, this document is only to be used as a guide and not for warranty purposes.
-
Page 3: Table Of Contents
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com Table of Contents Chapter 1 Getting Started ..............ERIAL ONSOLE ONFIGURATION ................AME AND ASSWORD ....................ONSOLE Chapter 2 Web Management Function ................OGIN TO THE EBSERVER ..................... YSTEM TATUS VIII .................... -
Page 4: Chapter 1 Getting Started
Chapter 1 Getting Started In this chapter we explain how to install a managed switch for the first time. There are three ways to access the managed switch’s configuration settings: serial console, Telnet console, or web console. If you do not know the switch’s IP address, you can open the serial console by connecting the switch to a PC’s COM port with a short serial cable. -
Page 5: User Name And Password
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com 2. User Name and Password When HyperTerminal finish setting, you can see the page display as below : Enter User Name and Password, the default User Name and Password as “admin”, then press “Enter”, go into Console Program. - Page 6 Console menu includes the following: The default IP address for managed switches is 192.168.19.16. You can set IP address as follows: Switch>>ip address 192.168.0.1 When IP Address is set, you can access the Web page through this IP address.
-
Page 7: Chapter 2 Web Management Function
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com Chapter 2 Web Management Function The switch’s web console is a convenient platform for modifying the configuration and accessing the built-in monitoring and network administration functions. You can open the switch’s web console using a standard web browser, such as Internet Explorer. -
Page 8: System Status
2. System Status Setting Description Time Zone Specifies the time zone, which is used to determine the local time offset from GMT (Greenwich Mean Time). Time Setting Use the local time or enables NTP time server functionality. NTP Server Set NTP server IP address. System Time Show the switch system time. -
Page 9: Port Setting
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com Update PC Time to Switch Click this button and the switch time will be set according to the PC time. Switch Name Give a different name for each switch. Contact Info Display contact info for technical support. -
Page 10: Storm Protection
Setting Description Port Enable Allows data transmission through the port or not. Port Speed Allows the port to use the IEEE 802.3u protocol to negotiate with connected devices. The port and connected devices will determine the best speed for that connection. Choose one of these fixed speed options if the connected Ethernet device has trouble auto-negotiating for line speed. -
Page 11: Vlan Setting
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com The switches provide Port Control Rate Limit, including Ingress and Egress Rate Limit. 4. VLAN Setting A Virtual, commonly known as a VLAN, is used to create independent logical networks within a physical network. Several VLANs may co-exist within such a network. -
Page 12: Port Vlan
must have a Tag. Users can also assign a PVID to a Trunk Port. The untagged packet on the Trunk Port will be assigned the port default PVID as its VID. Hybrid Port: The port is similar to a Trunk port, except users can explicitly assign tags to be removed from egress packets. - Page 13 BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com...
-
Page 14: Qos
Setting Description VLAN ID VLAN Name The name of VLAN The table shows the VLAN groups that were created. 5. QoS The switch’s traffic prioritization capability provides Quality of Service (QoS) to your network by making data delivery more reliable. You can prioritize traffic on your network to ensure that high priority data is transmitted with minimum delay. -
Page 15: Dscp Qos
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com queues are delayed until no more high priority data needs to be sent. The Strict method always gives precedence to high priority over low priority. The switch has 4 priority queues. -
Page 16: Link Management
Setting Description DSCP QoS Setting Enable / Disable DSCP QoS function Maps different TOS values to 4 different egress queues. The DSCP Range default setting is : 1 to 16: Low 17 to 32: Normal DSCP Priority 33 to 48: Medium 49 to 64: High 6. -
Page 17: N Etwork
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com The topology of a bridged network will be determined much more quickly compared to STP. RSTP is backward compatible with STP, making it relatively easy to deploy. Setting Description RSTP Setting Enable / Disable RSTP function. -
Page 18: Network Management
Input a higher cost to indicate that this port is less suitable as a Port Cost node for the Multiple Spanning Tree topology. Use the default value (0) to use port speed in the auto port cost. Increase this port’s priority as a node on the Multiple Spanning Priority Tree topology by entering a lower number. -
Page 19: Snmp Setting
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com Setting Description Trunk Index Totally 2 groups. Port Members Lists the ports in the current trunk group and the ports that are available to be added. Enable Enable / Disable the function. -
Page 20: Port Mirror
all objects with read-only permissions using this community string. Write/Read Specifies the community string to authenticate the SNMP agent for read/write access. The SNMP server will access Community all objects with read/write permissions using this community string. SNMP V3 Setting is shown in the following table: Setting Description User Name... -
Page 21: Igmp Snooping
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com Port Mirror Enable / Disable the function. Mirror Port Select the number of the port that will be used to monitor the activity of the monitored port. Monitored Port Select the number of the ports whose network activity will be monitored. -
Page 22: Gmrp
Setting Description IGMP snooping Setting Enable / Disable the function. IGMP Querier Enable / Disable IGMP Querirer function. Query Interval Sets the query interval of the Querier function globally. Valid settings are from 20 to 600 seconds. Multicast Age Time The age time of the broadcast member. -
Page 23: Network Statistic
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com 8. Network Statistic 8.1 Mac Address Table MAC Address and related forwarding port will display in this table. Setting Description By Port No. Query by port no. By MAC Address Type Query by MAC address type 8.2 Traffic Statistics... -
Page 24: System Management
9. System Management 9.1 Device Address This function will assign a managed IP Address for the switches. There are two options that can be used to set Ethernet managed switch: automatic assign (DHCP) and Fixed (Static) IP Address. Managed series of switches default fixed IP address when they leave the factor. -
Page 25: User Management
BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com Setting Description Obtain an IP address automatically or assign a DHCP/Fixed IP fixed IP IP Address Only IP Address is network Subnet Mask Space range sub-net logical address use Default Gateway... -
Page 26: Log Information
9.3 Log Information Managed series of switches provide Log function, which can be easily enable and disable. When enabling the function, if the following event occurs, it will be recorded in event list of switches. System Reboot Port Link Down / Link UP Power Status Change Login Information Broadcast Storm Occurs... - Page 27 BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com Setting Description Remote Syslog Setting Enable / Disable remote syslog. Log Server Address Enter the IP address of Syslog server Record Min Level The different level of log can be choose.
-
Page 28: File Management
9.4 File management Setting Description Configuration File Configuration file for managed series of switches can be Backup saved in one PC, click “Export”, a saving dialogue box prompts, select a proper file and save setting parameters in PC. Restore configuration file from PC , click “Browse”, Configuration File open a setting file, then click “Import”. - Page 29 BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC BUENO ELECTRIC Https://www.bueno-electric.com...
