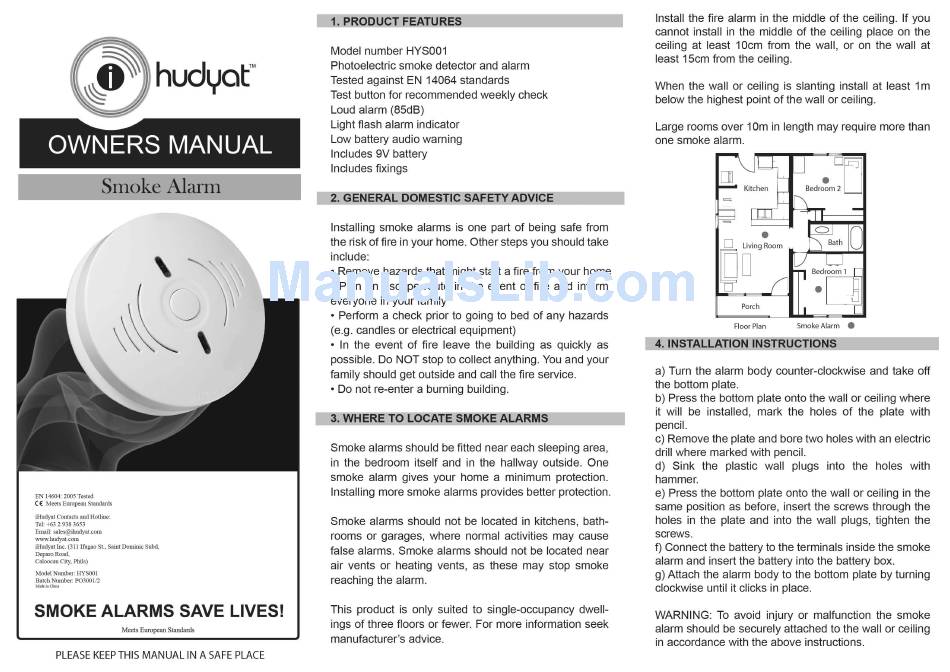

iHudyat HYS001 Owner's Manual

OWNERS MANUAL

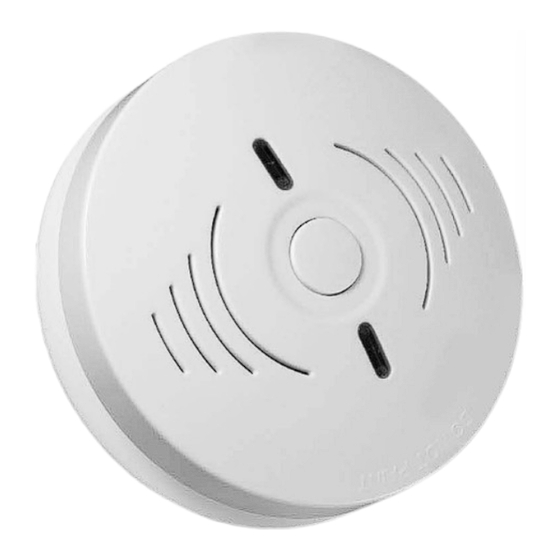

Smoke Alarm
/
EN 14604: 2005 Tested
(E:
Meets European Standards
iHudyat Contacts and Hotline:
Tel: +63 2 938 3653
Email: sales@ibudyat.com
www.hudyat.colll
iHudyat Inc. (311 Ifbgao St., Saint Dominic Subd,
Deparo Road,
Caloocan City, Phils)
Model N umber: HYSOO 1
Batch Number: P03001 /2
SMOKE ALARMS SAVE LIVES!
Meets European Standards
PLEASE KEEP THIS MANUAL IN A SAFE PLACE
1. PRODUCT fEATURES
Model number HYS001
Photoelectric smoke detector and alarm
Tested against EN 14064 standards
Test button for recommended weekly check
Loud alarm (85d8)
Light flash alarm indicator
Low battery audio warning
Includes 9V battery
Includes fixings
2. GENERAL DOMESTIC SAFETY ADVICE
Installing smoke alarms is one part of being safe from
the risk of fire in your home. Other steps you should take
include:
• Remove hazards that might start a fire from your home
• Plan an escape route in the event of fire and inform
everyone in your family
• Perform a check prior to going to bed of any hazards
(e.g. candles or electrical equipment)
• In the event of fire leave the building as quickly as
possible. Do NOT stop to collect anything. You and your
family should get outside and call the fire service.
• Do not re-enter a burning building.
3. WHERE TO LOCATE SMOKE ALARMS
Smoke alarms should be fitted near each sleeping area,
in the bedroom itself and in the hallway outside. One
smoke alarm gives your home a minimum protection.
Installing more smoke alarms provides better protection.
Smoke alarms should not be located in kitchens, bath-
rooms or garages, where normal activities may cause
false alarms. Smoke alarms should not be located near
air vents or heating vents, as these may stop smoke
reaching the alarm.
This product is only suited to single-occupancy dwell-
ings of three floors or fewer. For more information seek
manufacturer's advice.
Install the fire alarm in the middle of the ceiling. If you
cannot install in the middle of the ceiling place on the
ceiling at least 10cm from the wall, or on the wall at
least 15cm from the ceiling.
When the wall or ceiling is slanting install at least 1 m
below the highest point of the wall or ceiling.
Large rooms over 10m in length may require more than
one smoke alarm.
•
D
LivingRoom
[D o
~
D
Porch
Floor Plan
Smoke Alarm •
4. INSTALLATION INSTRUCTIONS
a) Turn the alarm body counter-clockwise and take off
the bottom plate.
b) Press the bottom plate onto the wall or ceiling where
it will be installed, mark the holes of the plate with
pencil.
c) Remove the plate and bore two holes with an electric
drill where marked with pencil.
d) Sink the plastic wall plugs into the holes with
hammer.
e) Press the bottom plate onto the wall or ceiling in the
same position as before, insert the screws through the
holes in the plate and into the wall plugs, tighten the
screws.
f) Connect the battery to the terminals inside the smoke
alarm and insert the battery into the battery box.
g) Attach the alarm body to the bottom plate by turning
clockwise until it clicks in place.
WARNING: To avoid injury or malfunction the smoke
alarm should be securely attached to the wall or ceiling
in accordance with the above instructions.
