Anvis FacePass Pro Quick Manual

FacePass Pro
Standalone Facial Recognition System
Quick Guide
(V1.0)
Copyright © 2001-2013 Anviz Global Inc.
is registered trademark of Anviz Global. and cannot be used without the permission of Anviz.
Due to the consistent improving of the product, this specification and appearance is subject to change
without notice.

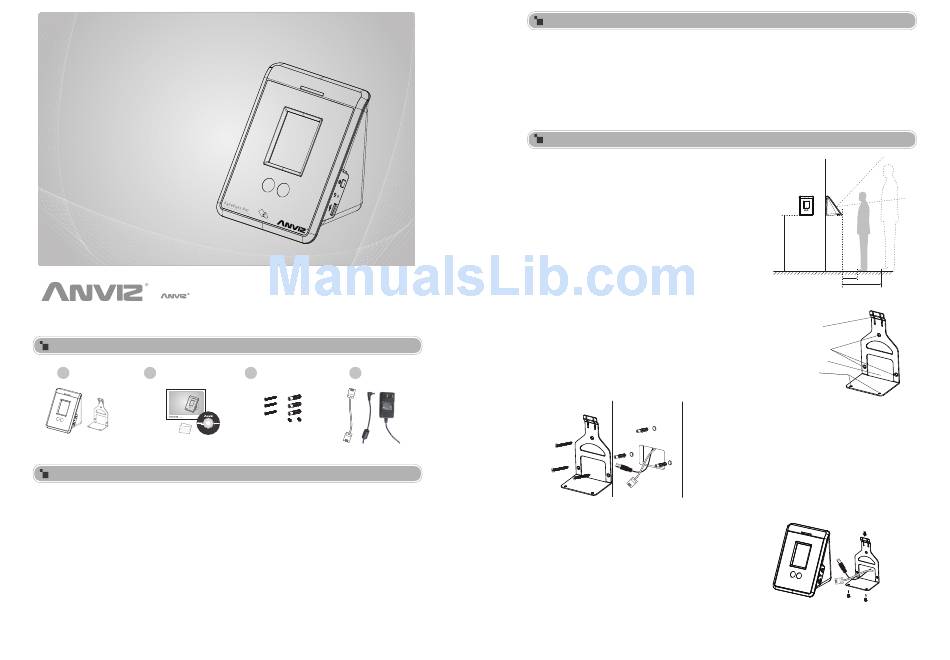

Packing List
1 2
Product Instruction Package
FacePass Pro
Standalone Facial Recognition System
Quick Guide
(V1.0)
Copyright © 2001-2013 Anviz Global Inc.
is registered trademark of Anviz Global. and cannot be used without the permission of Anviz.
Due to the consistent improving of the product, this specification and appearance is subject to change
without notice.
FOR windows
EN CH ... COMPACT Windows 2000 Windows 98
CD-ROM Windows XP
Windows Vista Windows 7
Copyright ANVIZ All rights reserved.
http://www.anviz.com
Notice
1、Please keep the product away from the magnetic field, and avoid causing any damage to the device.
2、Please don't take apart the device or change the circuitry it.
3、Please test device connection with software before installing on the wall.
4、Please don't install with power in order to avoid causing any damage to the device.
5、Please use the original power supply or refer to the instruction to get the right power supply.
6、Damage to the equipment caused by incorrect operation and wiring are not under warranty.
3 4
Accessory Package Wire
1

Installation Environment

Before Installation:
The FacePass Pro working temperature：0℃---45℃，working humidity：20%---80%
Direct sunlight would cause great impact on the face recognition performance. So the device is not allowed to be installed
outside. Please install the device indoor and avoid strong light shining straight into the camera.

Installation Steps

Step 1: Installation Position

The best verification distance of FacePass Pro is 11.8''-31.5'' (30-80 cm)
and the best image capture angle of the camera is level：±20°,
vertical：±20°.The recommended installation height is 43.3'' (110cm)
from the ground. In this position the FacePass Pro can capture body
height rangeing is 57''-76.8'' (145-195 cm) the person's face image is
in valid verify distance.For the actual installation height please refer
to the user's height.

Step 2: Holing fot the Steel Bracket

（1）Please refer to the size of the steel bracket, mark out the screw and
wiring holes. Make sure the back board is on horizontal position.
（2）Drill the hole (Recommended dia.6 mm).

Step 3: Fixing Steel Bracket

（1）Fix the steel bracket on the wall with self tapping screws.
（2）Pull all the cables out from the wiring hole of the steel bracket.
Figure（3） Fixed Steel Bracket

Step 4: Fixing the Device

（1）Connect cables with the device.
（2）Push down the device into the rabbet of the steel bracket.
（3）Fix the device with screws.
2
43.3" 57" 76.8"
(110cm) (145cm) (195cm)
Ground
11.8"
(30cm)
31.5"
Figure（1） Installation Position
(80cm)
Rabbet
Fixing Holes for Steel Bracket
Wiring Hole
Fixing Holes for Device
Figure（2） Steel Bracket
Rabbet
Figure（4） Fixed Device
