MultiBox SX-EP25 Operating Instructions Manual

Hdmi extender over tcp/ip, with dip, rs232, poe
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

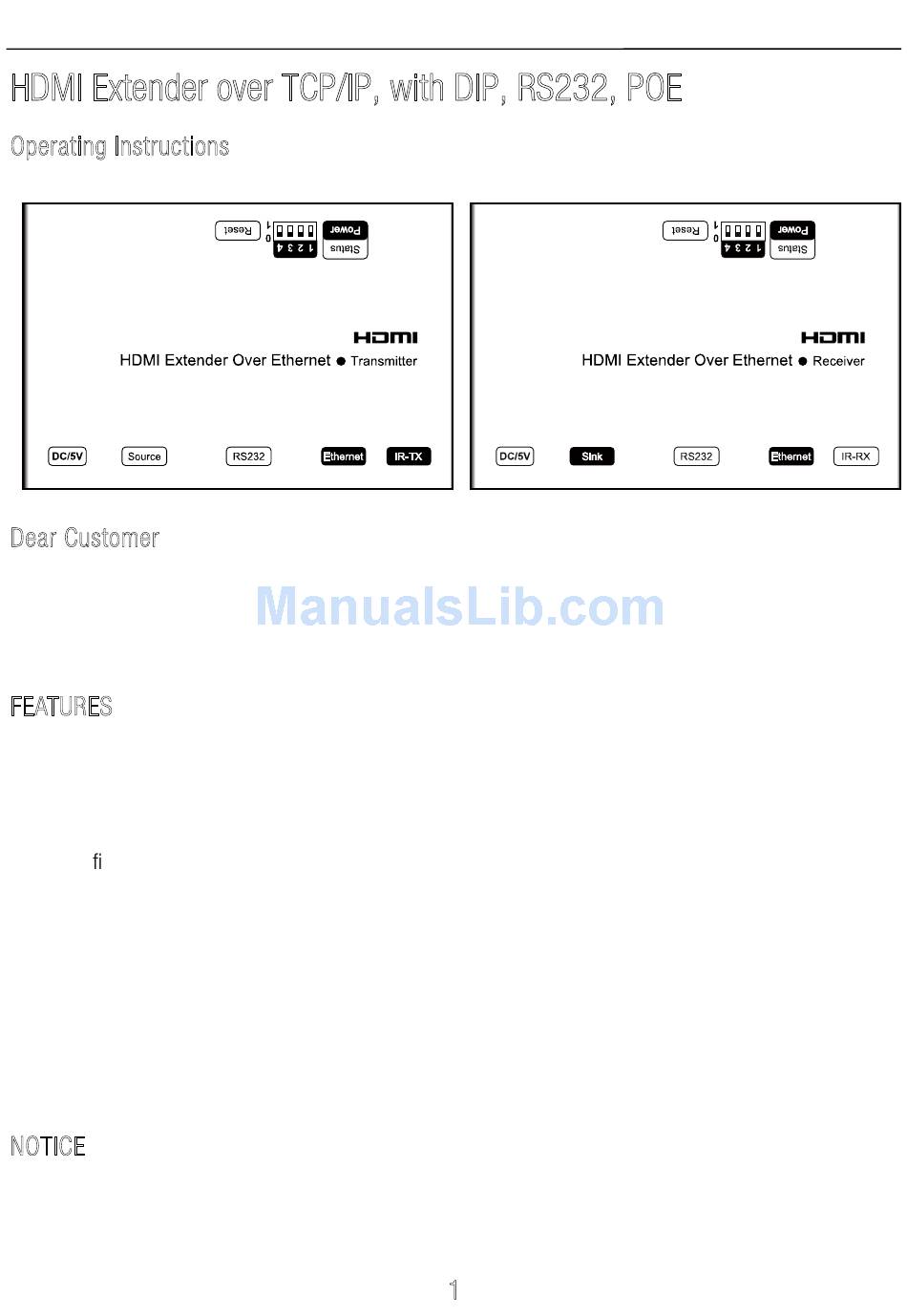

HDMI Extender over TCP/IP, with DIP, RS232, POE
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual for
future reference.
FEATURES
Supports 1080p and 720p video, plus 2-channel audio.
Uses off-the-shelf gigabit IP switches for extension and disyribution.
Plug-and-play operation-no programming or setup required.
Extends 1080p HDMI signals up to 120m over a single Cat5e/6 cable.
Traf c can unicast, multicast or broadcast for different applications.
Build-in DIP swith to change Group ID for multiple displays.
Can be cascaded for many layers by daisychain Ethernet switches.
Allows wide-band IR(38-56KHZ) remote control of sources devices.
Dual power input: 802.3af compliant POE & DC 5V.
HDCP Compatible.
Supports RS232.
Size:L94xW93.5xH24.6mm.
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
1
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-EP25 and is the answer not in the manual?

Questions and answers

Summary of Contents for MultiBox SX-EP25

  • Page 1 Operating Instructions HDMI Extender over TCP/IP, with DIP, RS232, POE Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

  • Page 2: Specifications

    Operating Instructions TABLE OF CONTENTS Speci cations Package Contents Panel Descriptions Connecting and Operating Typical Application Maintenance Product Service Warranty SPECIFICATIONS Operating Temperature Range -5 to +35 (+23 to +95 ) ℃ ℃ Operating Humidity Range 5 to 90%RH (No Condensation) Support Video Format DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P Output Video...

  • Page 3: Panel Descriptions

    Operating Instructions PANEL DESCRIPTIONS Transmitter Panel ① ② ③ Reset button DIP switch HDMI input Indicator of power input ④ ⑤ ⑥ Status of signal connection Power input port HDMI input ⑦ ⑧ RS232 Ethernet port ⑨IR-TX port 4 bits DIP Switch: Use 4bits DIP switch to select 16 groups ID ( such as 0001,0010,0101 etc,) Default TX unicast IP address is 192.168.168.55 , it can be configured from webpage.
  • Page 4 Operating Instructions Receiver Panel ① ② ③ HDMI Output DIP switch Indicator of power input ④ ⑤ ⑥ Status of signal connection Power input port HDMI Output ⑦ ⑧ RS232 Ethernet port ⑨ IR-RX port...
  • Page 5 Operating Instructions 4 bits DIP Switch: Use 4bits DIP switch to select 16 group ID(such as 0001,0010,0101 etc,) Default RX unicast IP address is 192.168.168.56, it can be configured from webpage. RX Group IP address: 239.168.168. XXX (XXX is the value of bits[2:0]) User should configure the DIP switch within 10 seconds, firmware should reset the system 20 second after detecting the first change of DIP switch, and latch the new DIP switch value after reset.
  • Page 6 Operating Instructions Application 2: One to many network configuration: 1. Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit 2. Connect one CAT5e or better cable between the RJ45 port of transmitter and input port of Gigabit Ethernet switch hub.
  • Page 7 Operating Instructions Application 3: Many to Many network configuration: 1. Connect one HDMI Cable between the HDMI output port of source device and the HDMI input port of Transmitter unit. 2. Connect one HDMI Cable between the HDMI inpu port of display and the HDMI output port of Receiver unit.
  • Page 8 Operating Instructions No need power adapter for TX & RX when connecting with POE Switch. HDMI Source HDMI Source HDMI Source PS3,Blu-ray DVD player, etc. PS3,Blu-ray DVD player, etc. PS3,Blu-ray DVD player, etc. Transmitter Transmitter Transmitter Group ID:0100 Group ID:0001 Group ID:0101 Cat5e cable Giga PoE Web smart switch...
  • Page 9 Operating Instructions Setup HDMI TX and HDMI RX A HTTP server is embedded in each TX and RX. you can setup IP address for HDMI extender via web browser. The default IP address of the TX is 192.168.168.55, MAC address is: 00:0b:78:00:60:01. The default IP address of the RX is 192.168.168.56, MAC address is: 00:0b:78:00:60:02.
  • Page 10 Operating Instructions RS232 pass through The TX and RX are with DB-9 connector, TX: Female connector; RX: Male connector. DB-9 Male（Pin Side） DB-9 Female (Pin Side） ------------- ------------- \ 1 2 3 4 5 / \ 5 4 3 2 1 / \ 6 7 8 9 / \ 9 8 7 6 / ---------...

  • Page 11: Product Service

    Operating Instructions PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by quali ed service personnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit; (c)The unit has been exposed to rain; (d)The unit does not operate normally or exhibits a marked change in performance;...

  • Page 12: Warranty

    Operating Instructions WARRANTY If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as "the warrantor" ) will, for the length of the period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase ("Limited Warranty period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product.
