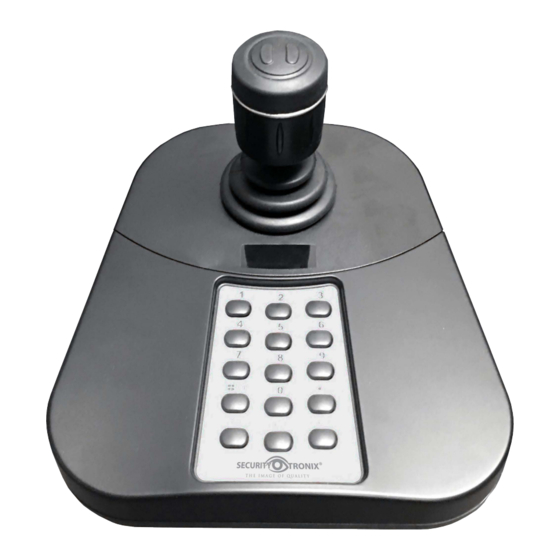

- Page 1 ST-USB-KB USER MANUAL www.nacebrands.com www.securitytronix.com...
- Page 2 OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS HARDWARE AND SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. THE USE OF THE PRODUCT SHALL BE WHOLLY AT YOUR OWN RISK. SECURITYTRONIX SHALL NOT BE LIABLE FOR ANY ABNORMAL OPERATION, BREACH OF PRIVACY OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS.
- Page 3 ST-USB-KB USER MANUAL Regulatory information FCC information This equipment has been tested and found to comply with the limits for a digital device, pursuant compliance: to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 ST-USB-KB USER MANUAL Preventive and Cautionary Tips Before connecting and operating your keyboard, please be advised of the following tips: Ensure unit is placed in a well-ventilated, dust-free environment. Keep all liquids away from the keyboard. Please check the power supply to avoid damage caused by a voltage mismatch.
-
Page 5: Table Of Contents
ST-USB-KB USER MANUAL Table of Contents Chapter 1 Product Overview ....................4 Introduction ......................... 4 Typical Application ..................... 4 Controlling Mode ......................4 Chapter 2 Functional Keys and Joystick ................6 Function Keys ......................6 Joystick ........................7 Chapter 3 Keyboard Application ..................8 USB Keyboard Mode .................... -
Page 6: Chapter 1 Product Overview
DVR,NVR, and PC-DVR, and can perform functions such as windows switch, PTZ control, capture, recording, etc. 1.3 Controlling Mode The ST-USB-KB keyboard connects with a PC via USB interface and supports two ways of controlling: USB keyboard mode and USB joystick mode. - Page 7 USB keyboard mode supports private SDK accessing and functions such as quick switch, PTZ control, capture and recording. It is required to install drivers before setting the ST-USB-KB to USB keyboard mode. Two types of drivers can be selected, depending on 32 BIT or 64 BIT systems.
-
Page 8: Chapter 2 Functional Keys And Joystick
ST-USB-KB USER MANUAL Chapter 2 Functional Keys and Joystick 2.1 Function Keys Refer to the following figure and table for the description of the function keys. Table 1. 1 Description of Keyboard Key Name Function Description 0 to 9 Number USB Keyboard Mode: For selecting window or channel;... -
Page 9: Joystick
ST-USB-KB USER MANUAL 2.2 Joystick Table 1. 2 Description of Joystick Graphic Operation Function PTZ control mode: Move the PTZ up. Down PTZ control mode: Move the PTZ down. Left PTZ control mode: Move the PTZ left. Right PTZ control mode: Move the PTZ right. -
Page 10: Chapter 3 Keyboard Application
ST-USB-KB USER MANUAL Chapter 3 Keyboard Application 3.1 USB Keyboard Mode 3.1.1 Setting Keyboard Mode Press and hold the key Window/Channel for more than 5s, and the keyboard will auto switch its mode. If the single indicator is on, the unit is in USB keyboard mode. - Page 11 ST-USB-KB USER MANUAL The input number I can be at most 4-digit number; When the input number I is 1-99, it implies the number of the selected window. It can be at most 99 windows; When the input number I is 1112, it implies the sub window 12 of window 11. When the input number is 3 or 4 digits, the last two numbers implies sub window number, and the first one or two numbers implies the window number.
-
Page 12: Usb Joystick Mode
ST-USB-KB USER MANUAL Speed up, Speed down: Reserved; Previous, Next: Select the previous window or the next window while in window switch mode; switch to the previous or next window of a channel during channel switch mode. Capture, Recording: Click Tool->... - Page 13 ST-USB-KB USER MANUAL Click the Tool-> System Configuration-> Keyboard and Joystick-> USB Joystick on the client and then configure the corresponding shortcut keys of number 1~15. Select the window in live view mode interface and operate according to each shortcut.
-
Page 14: Dvr/Nvr Control
DVR/NVR) Pause/recover auto patrol in auto patrol live view. Long press for 3 to 5 seconds to switch between joystick mode and keyboard access mode of ST-USB-KB; main menu interface can be Switch directly entered in joystick mode. ... - Page 15 Company and should not be relied upon. This warranty gives you specific legal rights. You may also have other rights which vary from one jurisdiction to another. For further assistance, or if you encounter any issue while using this product, please contact your distributor or Securitytronix at: 800-688-9282 Press 3 for support, then 2 for CCTV.
-
Page 16: Appendix1: Specification
ST-USB-KB USER MANUAL Appendix1: Specification ST-USB-KB Model Compatible System Window XP/7/8/8.1 Interface Type USB 2.0, DirectX Control Joystick (3-axis control, rotating zoom) × × Dimensions 177.5 116(mm) 14 º F to 131 º F Operating Temperature Operating Humidity 10% ~ 90% (Non-condensing) -
Page 17: Appendix2: Device Upgrade
ST-USB-KB USER MANUAL Appendix2: Device Upgrade Steps: Upgrade Preparation: Once the drivers have been installed, access the keyboard USB with the PC, it will prompt that device has been discovered and auto load the corresponding driver. Make sure the keyboard is in USB keyboard mode before upgrading the device. If the single indicator on the panel does not light, press and hold the Window/Channel key for more than 5 seconds to switch to the USB keyboard mode. - Page 18 ST-USB-KB USER MANUAL Send Upgrade File It takes the rial port tool SecureCRT as the example to upgrade the device. 1) Open serial port tool SecureCRT 6.5, select the corresponding serial port of the device (as shown in step2) and configure the port parameters (baud rate: 115200, data bit:8, parity: none).
- Page 19 ST-USB-KB USER MANUAL 4) Select the upgrade patch in the path selection page and double click it to add it to the box as shown in the picture below, click OK to start upgrading it: 5) It will pop up the words as shown in the picture below after the upgrade has...
- Page 20 ST-USB-KB USER MANUAL When the upgrade is completed, please close the current serial port and reboot the keyboard. If the upgrade is failed, the digital tube of the keyboard will remain lit. Reboot the keyboard, open the serial port tool and re-start the upgrade process (step 4).
