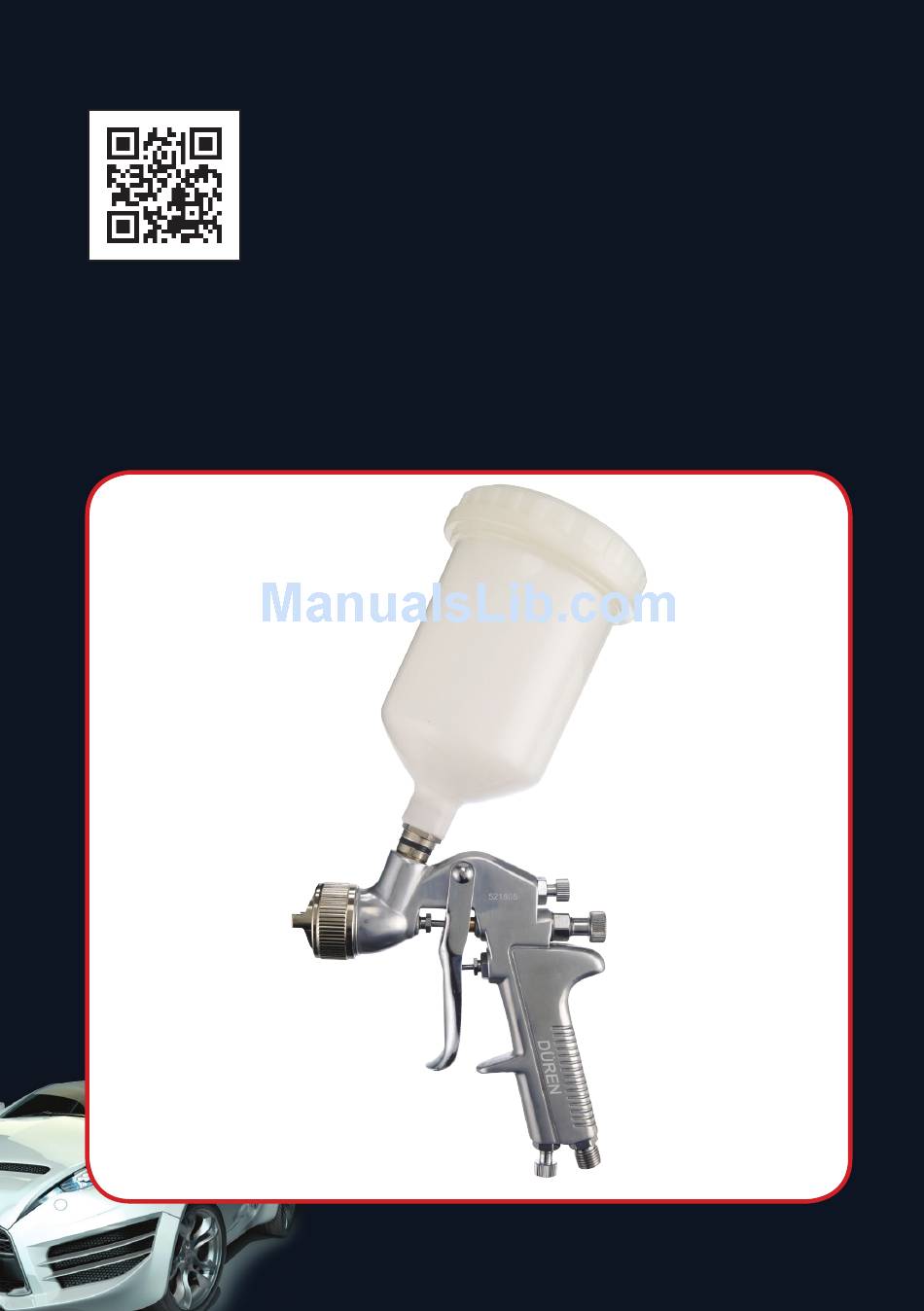

- Page 1 DÜREN TOOLS 521805 Conventional Gravity Gun Product Instruction Manual +44 (0)1582 661993 +44 (0)1582 667100 sales@fastmovertoolsuk.com...
-
Page 2: Specification
521805 Instruction Manual IMPORTANT Please read through this Manual carefully before using the 521805. This tool must only be used for spraying and within the parameters outlined in this manual. All users of the equipment should be trained in any risks associated with the products they are spraying or using as spraying and finishing aids. - Page 3 FMT3006_Product Instructions 19/09/2014 11:23 Page 3 PLEASE KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE ALWAYS spray in a well ventilated area. ALWAYS wear an approved respirator when using this machine. DO NOT spray at animals, plants, electrical sources, other persons or their property under any circumstance.
-
Page 4: Operating Instructions
FMT3006 521805 Instruction Manual Instruction Manual medication. Do not spray at or near and naked flame or any source of ignition. DO NOT spray any material without first consulting a Material Safety Data Sheet. If one is not available it is advised that you source an alternative material. -
Page 5: Maintenance
FMT3006_Product Instructions 19/09/2014 11:23 Page 5 PLEASE KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE areas, use a criss-cross pattern as shown in Fig. 3. Never start or stop the gun whilst it is aimed at the workpiece. Too fast a pass will give a thin and patchy coat whilst too slow a pass will result in a heavy coat. -
Page 6: Troubleshooting
FMT3006 521805 Instruction Manual Instruction Manual Trouble Shooting Problem Cause(s) Solution(s) Gun is leaking from fluid 1 Fluid nozzle loose 1 Tighten fluid nozzle nozzle 2 Foreign particles or dried 2 Remove and clean nozzle paint stopping the needle seating. -
Page 7: Parts Diagram
521805 Parts Diagram Description Description Description Nozzle Needle seal screw Amplitude adjustment screw Air seal Air adjustment screw Locating ring Amplitude adjustment seal Trigger pin Material nozzle Seal gasket Feed connector Material nozzle gasket O ring Feeder gasket Material nozzle seal... -
Page 8: Scope Of Warranty
FMT3006_Product Instructions 19/09/2014 11:23 Page 8 521805 FMT3006_Product Instructions 19/09/2014 11:23 Page 8 Instruction Manual FMT3006 Instruction Manual Warranty FMT3006 Instruction Manual Warranty We hope that you will be very happy with your purchase. If you do have a problem with your tool, you have the added peace of mind of a 12 month warranty, which comes into date from the date of purchase (proof of purchase We hope that you will be very happy with your purchase.
