AutoTest
USER MANUAL
Xiamen PRT Technology Co.,Ltd.
ADD: 4&5, 8#, Gaoqi Nan Shi'er Road (AideAirport Industrial Park),
Xiamen, China 361006
Tel:
+86-(0)592-5993973
Fax: +86-(0)592-5756958
Web: www.prttech.com
279 Normanby Road, Port Melbourne VIC 3207
tel +613 9647 9797 fax +613 9646 3427
sales@autotest.net.au www.autotest.net.au

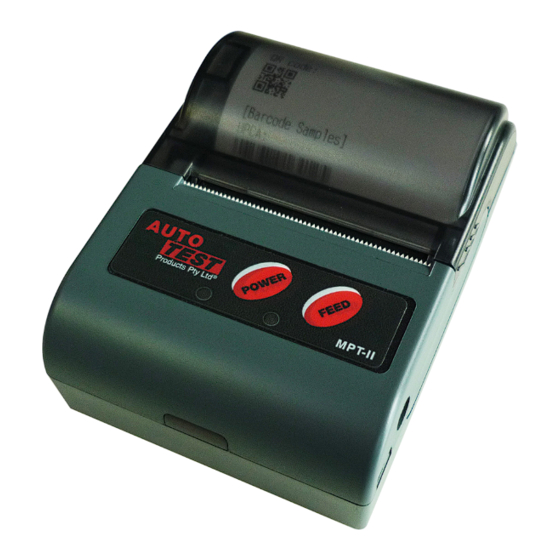

MPT-II Thermal Printer
®
MPT-II
User Manual
Advertisement
Table of Contents
Related Manuals for AutoTest MPT-II
Summary of Contents for AutoTest MPT-II
-

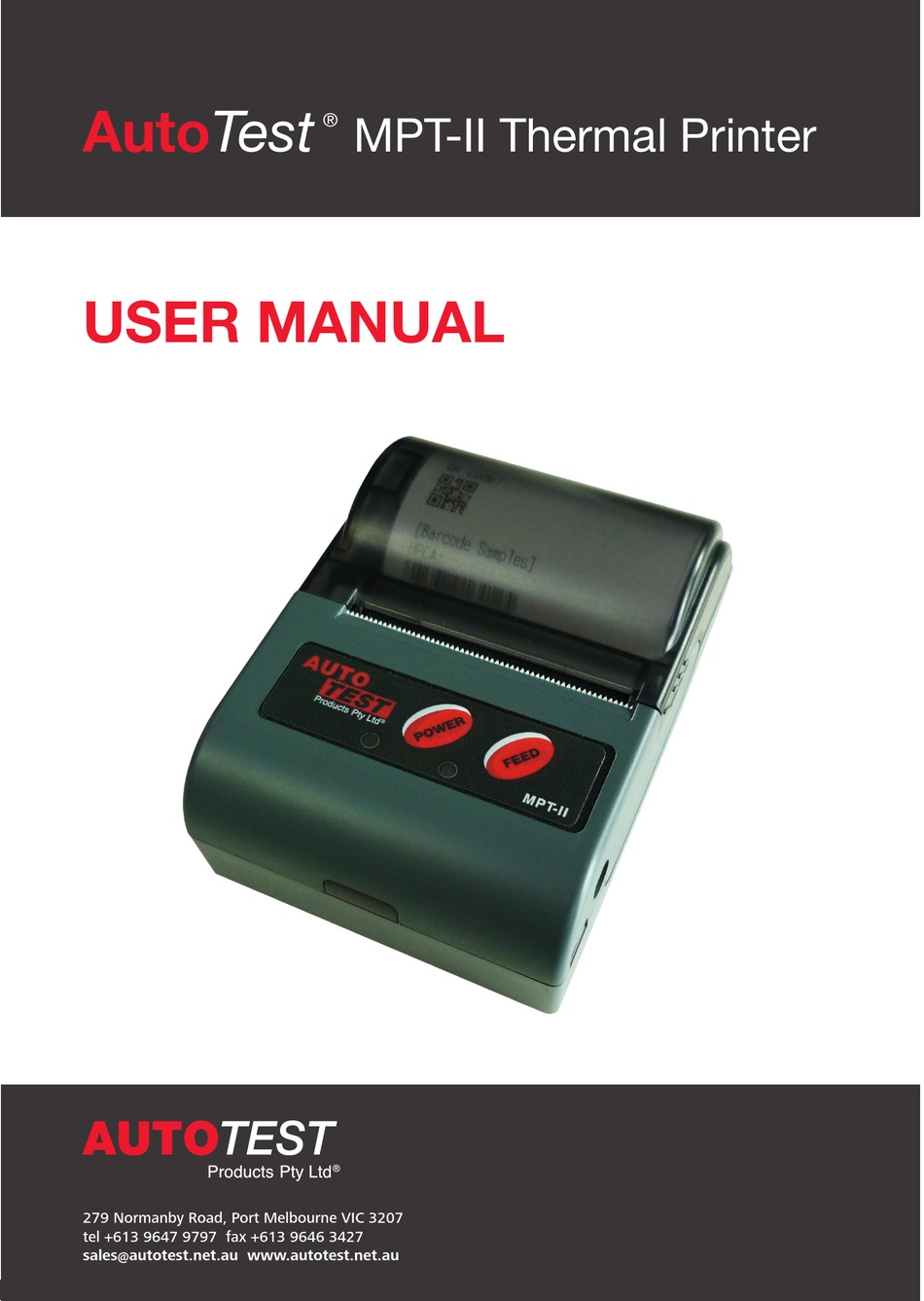

Page 1: User Manual
AutoTest MPT-II Thermal Printer ® MPT-II USER MANUAL User Manual Xiamen PRT Technology Co.,Ltd. ADD: 4&5, 8#, Gaoqi Nan Shi'er Road (AideAirport Industrial Park), Xiamen, China 361006 Tel: +86-(0)592-5993973 Fax: +86-(0)592-5756958 Web: www.prttech.com 279 Normanby Road, Port Melbourne VIC 3207 tel +613 9647 9797 fax +613 9646 3427 sales@autotest.net.au www.autotest.net.au... -
Page 2: Safety Instructions
MPT-II User Manual PRECAUTIONS 1. Safety Instructions 1) Be sure to use the specified battery and power supply provided by AutoTest. 2) Connection to a defective power supply may cause fire, explosion or damage to the printer. 3) Don’t expose the battery to a fire and keep it away from water, don’t disassemble or modify the battery, and don’t short-circuit the battery. -
Page 3: Battery Safety Instructions
5) When charging, use only the specified charger provided by AutoTest. Other conditions (high temperature, high pressure, high current, using a modified battery charger etc.) may result in over-charging the battery or causing an abnormal chemical reaction and may result in the battery overheating, burning and/or exploding. - Page 4 MPT-II User Manual 11) Do not throw or intentionally damage the battery. If the internal safety device of the batteries is damaged, this may adversely affect the battery charging and cause an abnormal current and/or voltage, and an abnormal chemical reaction, thus resulting in overheating, burning and/or exploding.
-
Page 5: Chapter 1 Brief Introduction
MPT-II User Manual CHAPTER 1 BRIEF INTRODUCTION 1.1 Appearance 1.2 Accessories Standard accessories Optional accessories Rev.1.8 www.prttech.com... -
Page 6: Chapter 2 Specifications
MPT-II User Manual CHAPTER 2 SPECIFICATIONS Item Parameter Thermal line printing Printing method Resolution 203dpi, 8dots/mm Printing Printing speed MAX.70mm/s Valid printing width 48mm Interface Bluetooth,RS-232,USB(optional) Power saving Sleep mode Character Set Font ASCII:8×16,9×24,12×24;Multiple code pages support UPC-A, UPC-E, EAN8, EAN13, CODE39, ITF, CODEBAR,... -
Page 7: Chapter 3 Operating Instructions
MPT-II User Manual CHAPTER 3 OPERATING INSTRUCTIONS 3.1 Preparation Before Using 3.1.1 Li-ion Battery Installation 1) Place the battery in the battery slot, paying careful attention to the correct positive and negative terminals. (Refer to picture) 2) Close the battery case. - Page 8 3.2.6 No Paper Warning MPT-II printer has a paper sensor to detect paper. If the printer has no paper, the function indicator and power indicator will flash slowly. If the paper is used up while the printer is doing the printing job, the printer will continue to print the unfinished printing job when a new paper roll is loaded.
-
Page 9: Led Indicator And Buzzer Definition
Instructions: 1. Power on the printer. 2. On the primary device, search for outer Bluetooth devices. 3. In the list of outer Bluetooth devices, choose MPT-II. 4. Enter password “0000”. 5. Finish matching. For detailed pairing methods, please refer to the primary device’s Bluetooth Names. -
Page 10: Chapter 5 Other Information
Bluetooth device name and password, Standby Time, Sleep Time, Max Feed Length and so on. Please refer to MPTTools Guide for the instructions. CHAPTER 5 OTHER INFORMATION 5.1 Printer Technical Manual Please refer to MPT-II technical manual. MPT-II User Manual 5.2 Preprinted Black Mark Specification CHAPTER 5 OTHER INFORMATION If the user wants to locate a receipt by detecting a preprinted black mark, it needs to 5.1 Printer Technical Manual... -
Page 11: Chapter 6 Clean Printer
MPT-II User Manual CHAPTER 6 CLEAN PRINTER 6.1 Cleaning Head Dust, foreign substance, adhesive substance, or other contaminative materials stuck in the printer head or inside the printer may degrade the printing quality. When dirty, clean the print head as follows: ※NOTE:...
